ST190-AEMEK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )CT190,ST190..MTM

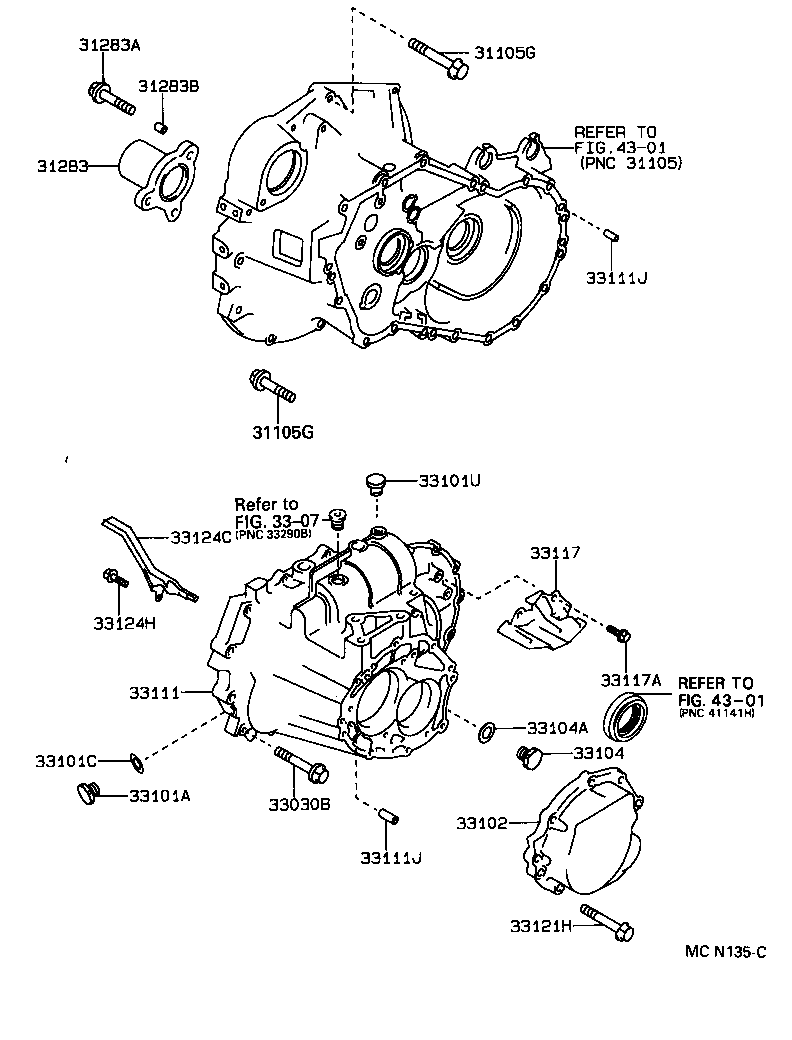

Click highlighted areas on diagram

S50

diagram 31105G 31105G 31283 31283A 31283B 33030B 3307 33101A 33101C 33101U 33102 33104 33104A 33111 33111J 33111J 33117 33117A 33121H 33124C 33124H 4301 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
91652-61022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
90105-08040

CT19#,ST190,195..MTM

*8−1.25PX18−15

 1
90105-10077

AT190,CT19#,ST190,195..MTM

*10−1.25PX43−26

 1
91651-41022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
90119-12168

CT19#,ST190,195..MTM

*12−1.25PX55−30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91651-41022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
91652-61022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
90105-08040

CT19#,ST190,195..MTM

*8−1.25PX18−15

 1
90105-10077

AT190,CT19#,ST190,195..MTM

*10−1.25PX43−26

 1
91651-41022

CT195,ST190,195..MTM

*10−1.25PX22−22

 1
90119-12168

CT19#,ST190,195..MTM

*12−1.25PX55−30

 3
31283 - RETAINER, CLUTCH RELEASE BEARING HUB
31283-32010

CT190,ST190..MTM

 1
31283A - BOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90105-06023

CT190,ST190..MTM

 3
31283B - PIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
90253-08002

CT190,ST190..MTM

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08042

CT190,ST190..MTM

*8−1.25PX45−27.5

 17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

CT19#,ST190,195..MTM

 1
90341-18006

AT190,CT190,ST190..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AT190,CT19#,ST190,195..MTM

 1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03133

CT190,ST190..MTM

 1
90930-03133

AT190,CT190,ST190..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-32012

CT190,ST190..MTM

 1
33102-33020

CT190,ST190..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AT190,CT19#,ST190,195..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AT190,CT19#,ST190,195..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-33020

CT190,ST190..MTM

 1
33111-33031

CT190,ST190..MTM

 1
33111-33030

CT190,ST190..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

CT190,ST190..MTM

長さ=23,外径=8

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

CT190,ST190..MTM

長さ=23,外径=8

 6
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-32011

CT190,ST190..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

CT19#,ST190,195..MTM

 2
90105-08040

AT190,CT19#,ST190,195..MTM

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90105-08273

CT190,ST190..MTM

 8
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-32012

CT190,ST190..MTM

 1
33124-33010

CT190,ST190..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91651-60618

CT190,ST190..MTM

 1
Linked diagrams
3307
4301
