ST190-AEMEK (1992)
Toyota Corona
ILLUST NO. 1 OF 2(9202- )AT190,CT19#..MTM ; (9202- )ST190..MTM..EXG,EXS,GX,SELS,TYPE1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20460 |
AT190,CT19#..MTM;ST190..MTM..(EXG,EXS,GX,SELS,TYPE1) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-07002 |
AT190,CT19#..MTM;ST190..MTM..(EXG,EXS,GX,SELS,TYPE1) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 90541-06032 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST190,195..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT190,CT19#,ST190,195..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 90541-06032 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10100 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10002 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AT190,CT19#,ST190,195..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20360 |
AT190,CT19#..MTM;ST190..MTM..(EXG,EXS,GX,SELS,TYPE1) |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91652-60816 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

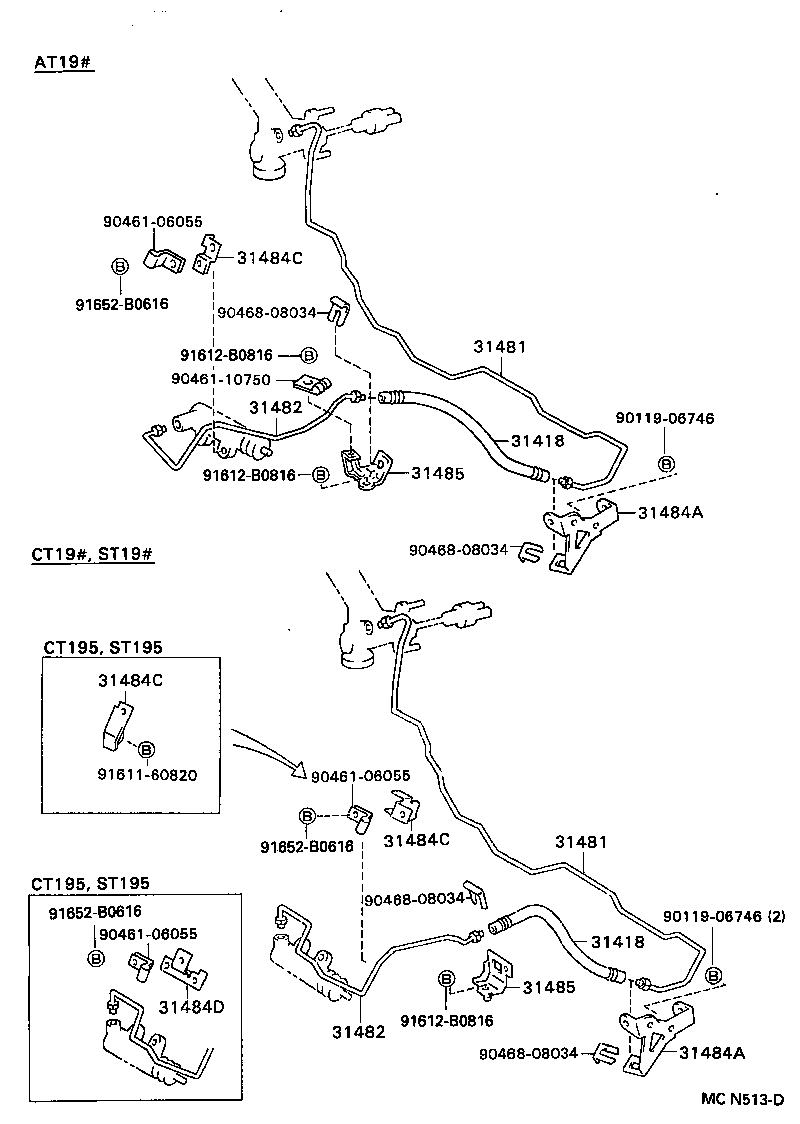

ILLUST NO. 2 OF 2(9202- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01092 |
AT190,CT195,ST190,195..MTM |
1 | ||
| 90931-01105 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90931-01092 |
AT190,CT195,ST190,195..MTM |
1 | ||
| 90931-01105 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20710 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31481-20630 |
AT190,CT195,ST190,195..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20710 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31481-20630 |
AT190,CT195,ST190,195..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20500 |
ST190..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20500 |
ST190..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20500 |
ST19#;AT190,CT195..MTM |
1 | ||
| 31484-20540 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20500 |
ST19#;AT190,CT195..MTM |
1 | ||
| 31484-20540 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CT190,ST190..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CT190,ST190..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CT190,ST190..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20510 |
CT190,ST190..MTM |
1 | ||
| 31484-20511 |
CT190,ST190..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20510 |
CT190,ST190..MTM |
1 | ||
| 31484-20511 |
CT190,ST190..MTM |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90461-06055 | ||||
| 90461-10750 | ||||
| 90468-08034 | ||||
| 91611-60820 | ||||
| 91612-B0816 | ||||
| 91652-B0616 | ||||
