ST171-ALPVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

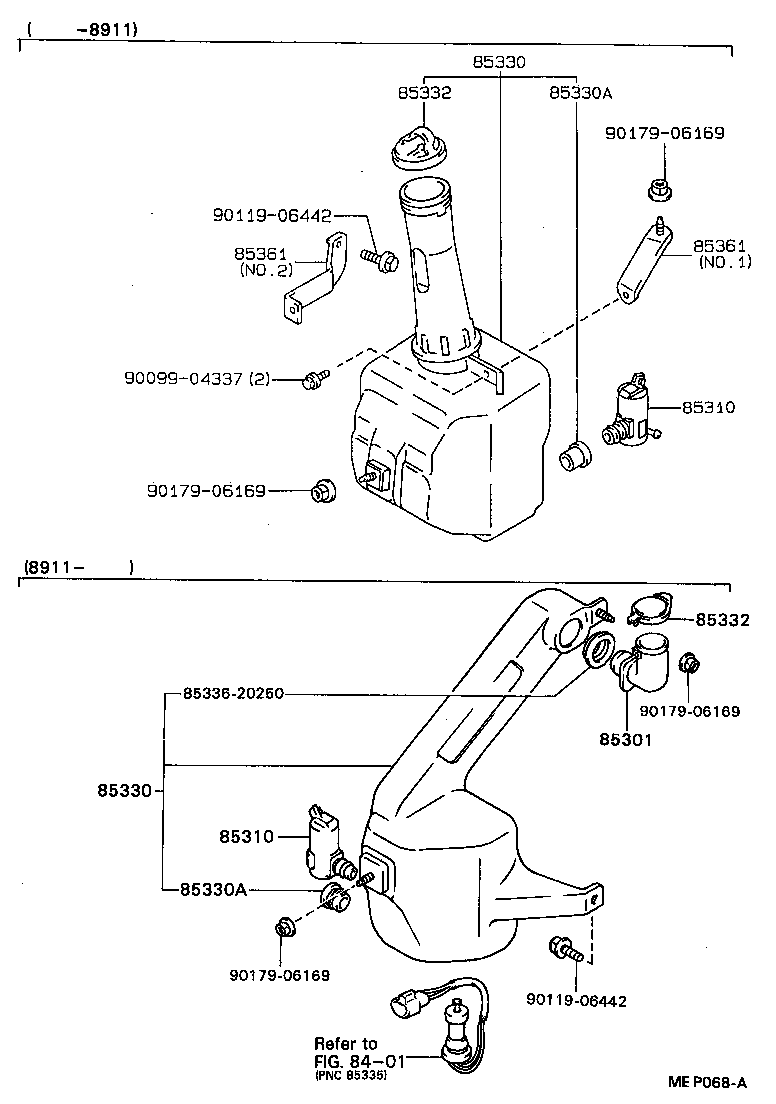

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

diagram 8401 85301 85310 85310 85330 85330 85330A 85330A 85332 85332 8533620250 85361 85361 9009904337 9011906442 9011906442 9017906169 9017906169 9017906169 9017906169
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AT17#,CT17#,ET176,ST17#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AT17#,CT17#,ET176,ST17#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20640

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20640

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
Common parts
85336-20250
90099-04337
90119-06442
90179-06169
Linked diagrams
8401

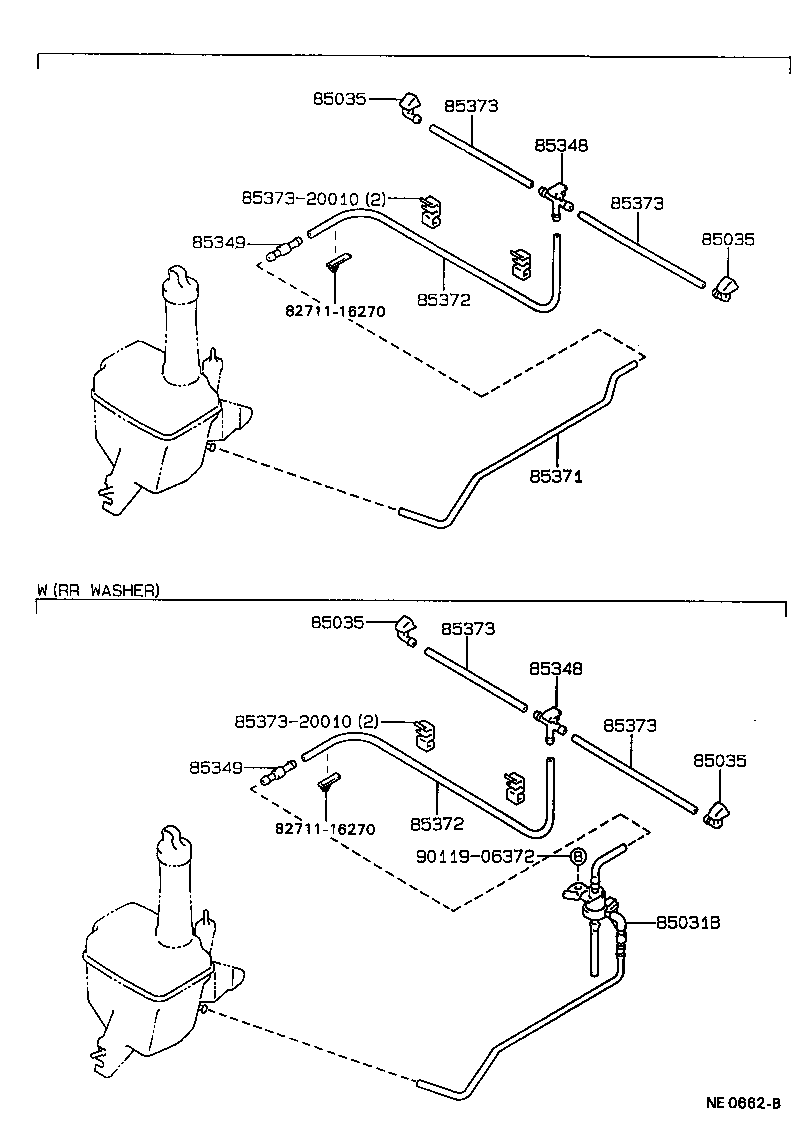

ILLUST NO. 2 OF 2(8712- )

Click highlighted areas on diagram

diagram 8271116270 8271116270 85031B 85035 85035 85035 85035 85348 85348 85349 85349 85371 85372 85372 85373 85373 85373 85373 8537320010 8537320010 9011906372
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-20050

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
85031-20051

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
85031-20050

CT176,ET176,ST17#..(LB,VAN)..(DX,G,GT,GX,X,Z)

 1
85321-20130

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-20130

AT17#,CT17#,ET176,ST17#

右側

 1
85035-20220

AT17#,CT17#,ET176,ST17#

左側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-20130

AT17#,CT17#,ET176,ST17#

右側

 1
85035-20220

AT17#,CT17#,ET176,ST17#

左側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-20130

AT17#,CT17#,ET176,ST17#

右側

 1
85035-20220

AT17#,CT17#,ET176,ST17#

左側

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-20130

AT17#,CT17#,ET176,ST17#

右側

 1
85035-20220

AT17#,CT17#,ET176,ST17#

左側

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-20400

AT17#,CT17#,ET176,ST17#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-20400

AT17#,CT17#,ET176,ST17#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AT17#,CT17#,ET176,ST17#

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AT17#,CT17#,ET176,ST17#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

L=1450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT17#,CT17#,ET176,ST17#

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT17#,CT17#,ET176,ST17#

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT17#,CT17#,ET176,ST17#

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AT17#,CT17#,ET176,ST17#

L=1450

 1
Common parts
82711-16270
85373-20010
90119-06372

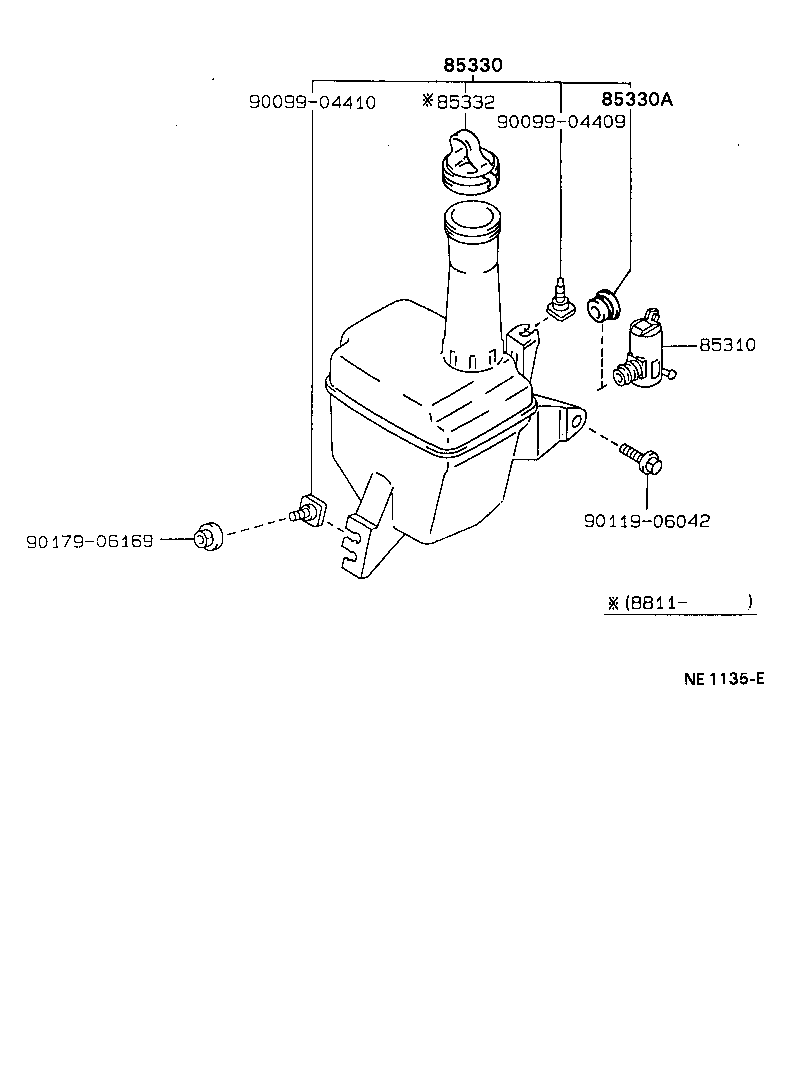

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 9009904409 9009904410 9011906042 9017906169
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AT17#,CT17#,ET176,ST17#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-20640

ET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)

 1
Common parts
90099-04409
90099-04410
90119-06042
90179-06169
