ST171-ALPVF (1987)
Toyota Corona
ILLUST NO. 2 OF 2(8712- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81580A - LAMP ASSY, REAR | ||||
| 81580-20020 |
ST17#..LB 右側 |
1 | ||
| 81580-20050 |
ST17#..LB |
1 | ||
| 81590-20020 |
ST17#..LB 左側 |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-20020 |
ST17#..LB 右側 |
1 | ||
| 81580-20050 |
ST17#..LB |
1 | ||
| 81590-20020 |
ST17#..LB 左側 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-21210 |
ST17#..LB 12V 21/5W |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-21210 |
ST17#..LB 12V 21/5W |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-21210 |
ST17#..LB 12V 21/5W |
2 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-20020 |
ST17#..LB 右側 |
1 | ||
| 81581-20050 |
ST17#..LB |
1 | ||
| 81591-20020 |
ST17#..LB 左側 |
1 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-20020 |
ST17#..LB 右側 |
1 | ||
| 81581-20050 |
ST17#..LB |
1 | ||
| 81591-20020 |
ST17#..LB 左側 |
1 | ||
| 81582 - GASKET, REAR LAMP | ||||
| 81674-20110 |
ST17#..LB |
2 | ||
| 81582 - GASKET, REAR LAMP | ||||
| 81674-20110 |
ST17#..LB |
2 | ||
| 81582 - GASKET, REAR LAMP | ||||
| 81674-20110 |
ST17#..LB |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-20050 |
ST17#..LB NO.2 |
1 | ||
| 81585-20020 |
ST17#..LB |
2 | ||
| 81585-20020 |
ST17#..LB NO.1 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-20050 |
ST17#..LB NO.2 |
1 | ||
| 81585-20020 |
ST17#..LB |
2 | ||
| 81585-20020 |
ST17#..LB NO.1 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-20050 |
ST17#..LB NO.2 |
1 | ||
| 81585-20020 |
ST17#..LB |
2 | ||
| 81585-20020 |
ST17#..LB NO.1 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-20050 |
ST17#..LB NO.2 |
1 | ||
| 81585-20020 |
ST17#..LB |
2 | ||
| 81585-20020 |
ST17#..LB NO.1 |
2 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 81277-20240 | ||||
| 90176-05014 | ||||
| 90179-05011 | ||||

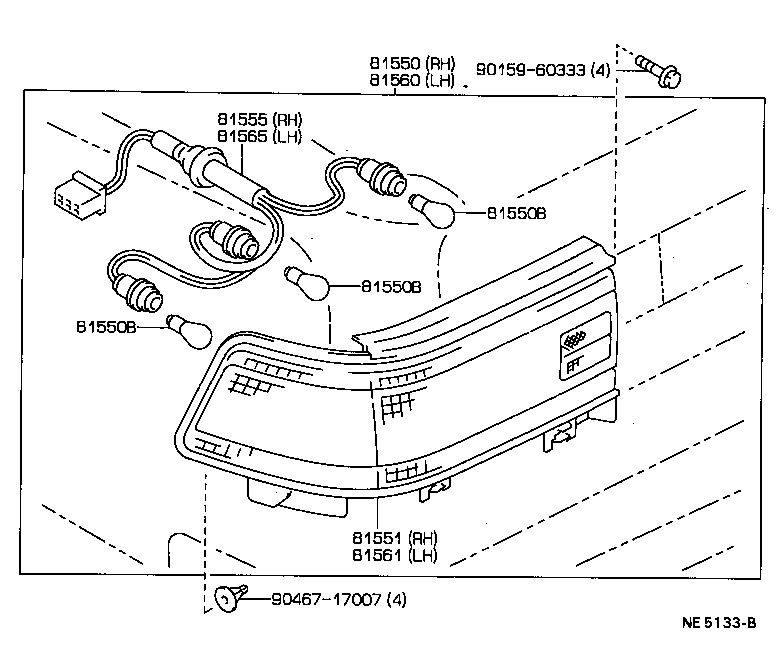

ILLUST NO. 1 OF 2(8712- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-2B130 |
ST17#..LB |
1 | ||
| 81550-20870 |
ST17#..LB |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT17#,CT17#,ET176,ST17# 12V 21/5W |
2 | ||
| 99132-11210 |
AT17#,CT170,ST17# 12V 21W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT17#,CT17#,ET176,ST17# 12V 21/5W |
2 | ||
| 99132-11210 |
AT17#,CT170,ST17# 12V 21W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT17#,CT17#,ET176,ST17# 12V 21/5W |
2 | ||
| 99132-11210 |
AT17#,CT170,ST17# 12V 21W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-2B130 |
ST17#..LB |
1 | ||
| 81551-20870 |
ST17#..LB |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-20870 |
ST17#..LB |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-20800 |
ST17#..LB |
1 | ||
| 81560-20870 |
ST17#..LB |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-20870 |
ST17#..LB |
1 | ||
| 81561-20800 |
ST17#..LB |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-20870 |
ST17#..LB |
1 | ||
| Common parts | ||||
| 90159-60333 | ||||
| 90467-17007 | ||||
