ST171-ALPGK (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB

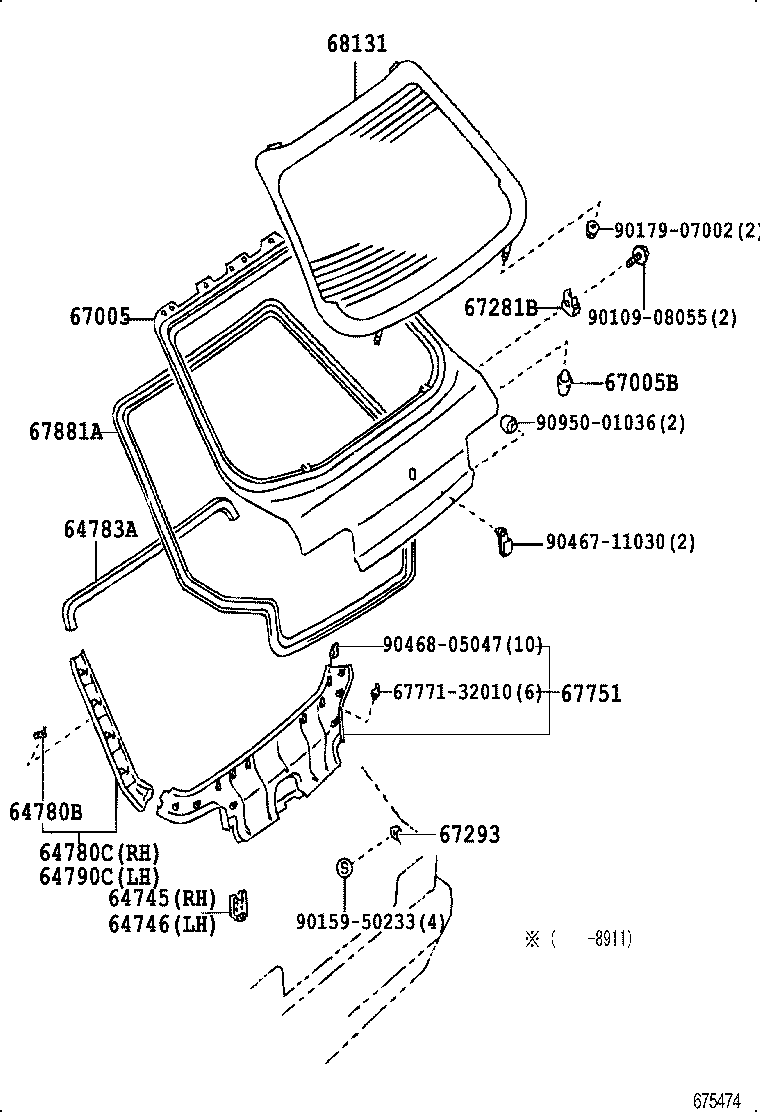

Click highlighted areas on diagram

diagram 64745 64746 64780B 64780C 64783A 64790C 67005 67005B 67281B 67293 67751 6777132010 67881A 68131 9010908055 9015950233 9017907002 9046711030 9046805047 9095001036
Part # Description Qty Price
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-2004004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64745-2004006

ST17#..G,X,Z

SABLE,TRIM4#

 1
64745-2004003

ST17#..LB

GRAY,TRIM1#

 1
64745-2004014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-2004003

ST17#..LB

GRAY,TRIM1#

 1
64746-2004004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64746-2004014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
64746-2004006

ST17#..G,X,Z

SABLE,TRIM4#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10084

ST17#..LB

 8
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-2001014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
64780-2001004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64780-2001003

ST17#..LB

GRAY,TRIM1#

 1
64780-2001006

ST17#..G,X,Z

SABLE,TRIM4#

 1
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-2003004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64783-2003014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
64783-2003006

ST17#..G,X,Z

BROWN,TRIM4#

 1
64783-2003003

ST17#..LB

GRAY,TRIM1#

 1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-2001004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64790-2001006

ST17#..G,X,Z

SABLE,TRIM4#

 1
64790-2001003

ST17#..LB

GRAY,TRIM1#

 1
64790-2001014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-2B050

ST17#..LB

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
67005-2B300

ST17#..LB

 1
67005-2B070

ST17#..LB

 1
67005-2B260

ST17#..LB

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-17003

ST17#..LB

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-20020

ST17#..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20020

ST17#..LB

 2
67751 - BOARD, BACK DOOR TRIM
64781-2006003

ST17#..LB

GRAY,TRIM1#

 1
64781-2006006

ST17#..G,X,Z

SABLE,TRIM4#

 1
64781-2006004

ST17#..G,X,Z

BLUE,TRIM8#

 1
64781-2006014

ST17#..G,X,Z

DARK BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-20080

ST17#..LB

 1
68131 - GLASS, BACK DOOR
68131-20340

ST17#..G,X

*EHT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68131-20330

ST17#..G,X

*EHTT,厚さ=4.0

 1
68131-20370

ST17#..G,GT,X

*EHT,厚さ=4.0,ｸﾞﾚｰ

 1
Common parts
67771-32010
90109-08055
90159-50233
90179-07002
90467-11030
90468-05047
90950-01036
