ST171-ALMVF (1987)
Toyota Corona

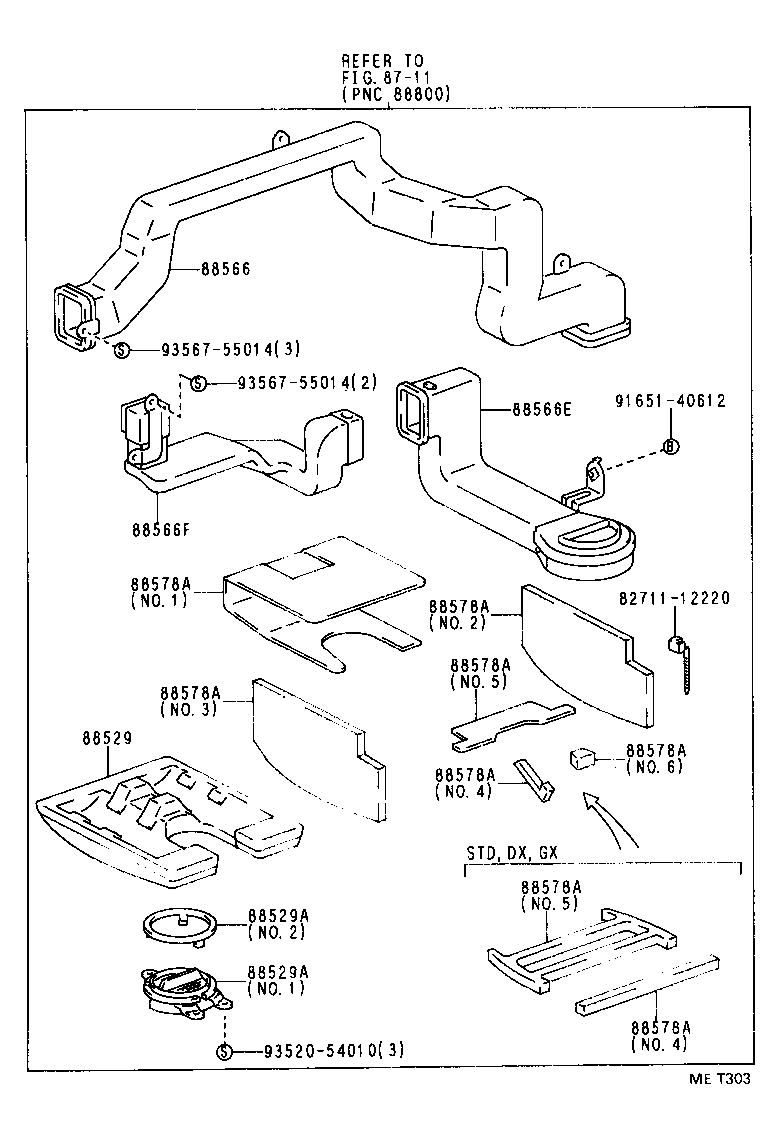

ILLUST NO. 3 OF 3(8712- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88529 - TRAY, COOLING BOX | ||||
| 88529-20250 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# |
1 | ||
| 88529-20250 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-20270 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88529-20290 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88529-20270 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88529-20290 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-20270 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88529-20290 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88529-20270 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88529-20290 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-20300 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# |
1 | ||
| 88566-20300 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88566E - DUCT, COOLER AIR, NO.2 | ||||
| 88566-20340 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# |
1 | ||
| 88566-20340 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88566F - DUCT, COOLER AIR, NO.3 | ||||
| 88566-20350 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# |
1 | ||
| 88566-20350 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-20240 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.3 |
1 | ||
| 88578-20230 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.2 |
1 | ||
| 88578-20390 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.4 |
2 | ||
| 88578-20410 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.6 |
2 | ||
| 88578-20220 |
AT170..EXS,MX;AT170..4FC..GX;AT175,ET176,ST17# NO.1 |
1 | ||
| 88578-20430 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X NO.5 |
1 | ||
| 88578-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.1 |
1 | ||
| 88578-20230 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88578-20240 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88578-20390 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.4 |
2 | ||
| 88578-20430 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.5 |
1 | ||
| 88578-20410 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z NO.6 |
2 | ||
| Common parts | ||||
| 82711-12220 | ||||
| 91651-40612 | ||||
| 93520-54010 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8711 | ||||

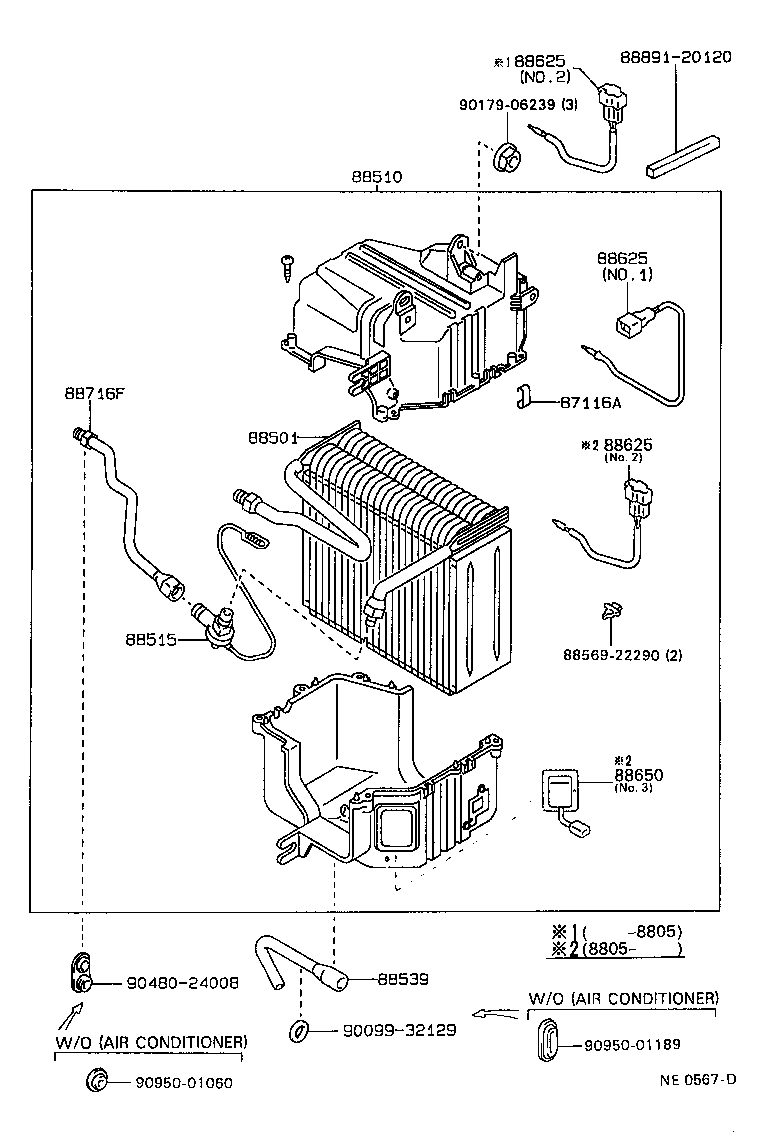

ILLUST NO. 1 OF 3(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AT17#,ET176,ST17# |
3 | ||
| 87116-14010 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z |
3 | ||
| 87116-14010 |
AT17#,ET176,ST17# |
3 | ||
| 87116-14010 |
AT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,STD,SXR,X,Z |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20220 |
AT17#,ET176,ST17# |
1 | ||
| 88501-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
1 | ||
| 88501-20220 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z |
1 | ||
| 88501-20220 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20780 |
AT170,ET176,ST17# |
1 | ||
| 88510-20800 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-20810 |
CT170;AT17#,CT176,ST17#..(4FC,5F)..(DX,EXG,EXS,G,GT,GTR,MX,SXR,X,Z) |
1 | ||
| 88510-20810 |
AT175,CT176..DX,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
1 | ||
| 88510-20810 |
CT176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
1 | ||
| 88510-20800 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
AT17#,ET176,ST17# |
1 | ||
| 88515-16040 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
1 | ||
| 88515-16040 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z |
1 | ||
| 88515-16040 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20160 |
AT170,ET176,ST17# |
1 | ||
| 88539-20160 |
AT170..GX..EFI;ET176,ST17#..CBR,EFI;ST170..(EXS,MX,X,Z)..CI;AT170..DX,EXS,MX,SELS,STD |
1 | ||
| 88539-20160 |
AT170,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,STD,SXR,X,Z |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88625-32040 |
AT170,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.2 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88625-32040 |
AT170,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.2 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.1 |
1 | ||
| 88625-24050 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z NO.1 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88625-20230 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88625-32040 |
AT170,ET176,ST17# NO.1 |
1 | ||
| 88625-20230 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.2 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-2B420 |
AT17#,ET176,ST17# |
1 | ||
| 88716-2B420 |
ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z |
1 | ||
| 88716-2B420 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z |
1 | ||
| 88716-2B420 |
ET176;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
1 | ||
| Common parts | ||||
| 88569-22290 | ||||
| 88891-20120 | ||||
| 90099-32129 | ||||
| 90179-06239 | ||||
| 90480-24008 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||

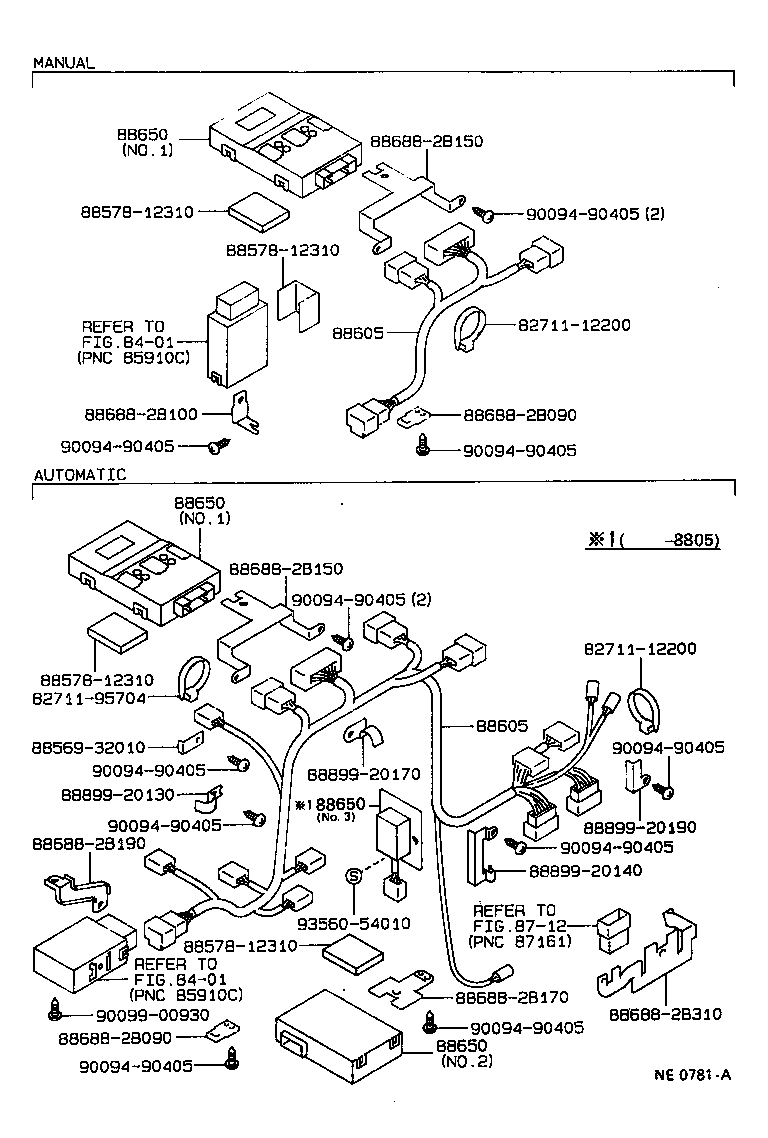

ILLUST NO. 2 OF 3(8712- )
LEVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B150 |
AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B100 |
AT170,ST171..MTM;ST170..EXS,MX,X,Z;AT175,ST171..4FC..(GT,GTR,MX) |
1 | ||
| 88605-2B100 |
AT170..MTM;AT170..4FC..(EXS,GX);ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88605-2B150 |
ST171..5F;AT170,ST170..EXS,X;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B630 |
ST171..5F;ST171..4FC..(GT,GTR) |
1 | ||
| 88605-2B640 |
ST171..5F;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B770 |
ST171..GT,GTR |
1 | ||
| 88605-2B790 |
AT17#,ST171..MTM..(EXG,EXS,G,GX,SELS,SXR) |
1 | ||
| 88605-2B810 |
AT17#,ST171..5F..(EXG,EXS,G,SXR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B150 |
AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B100 |
AT170,ST171..MTM;ST170..EXS,MX,X,Z;AT175,ST171..4FC..(GT,GTR,MX) |
1 | ||
| 88605-2B100 |
AT170..MTM;AT170..4FC..(EXS,GX);ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88605-2B150 |
ST171..5F;AT170,ST170..EXS,X;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B630 |
ST171..5F;ST171..4FC..(GT,GTR) |
1 | ||
| 88605-2B640 |
ST171..5F;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B770 |
ST171..GT,GTR |
1 | ||
| 88605-2B790 |
AT17#,ST171..MTM..(EXG,EXS,G,GX,SELS,SXR) |
1 | ||
| 88605-2B810 |
AT17#,ST171..5F..(EXG,EXS,G,SXR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-95704 | ||||
| 88578-12310 | ||||
| 88688-2B090 | ||||
| 88688-2B150 | ||||
| 88688-2B160 | ||||
| 88688-2B310 | ||||
| 88899-20130 | ||||
| 88899-20140 | ||||
| 88899-20170 | ||||
| 88899-20180 | ||||
| 90094-90405 | ||||
| 93560-54010 | ||||

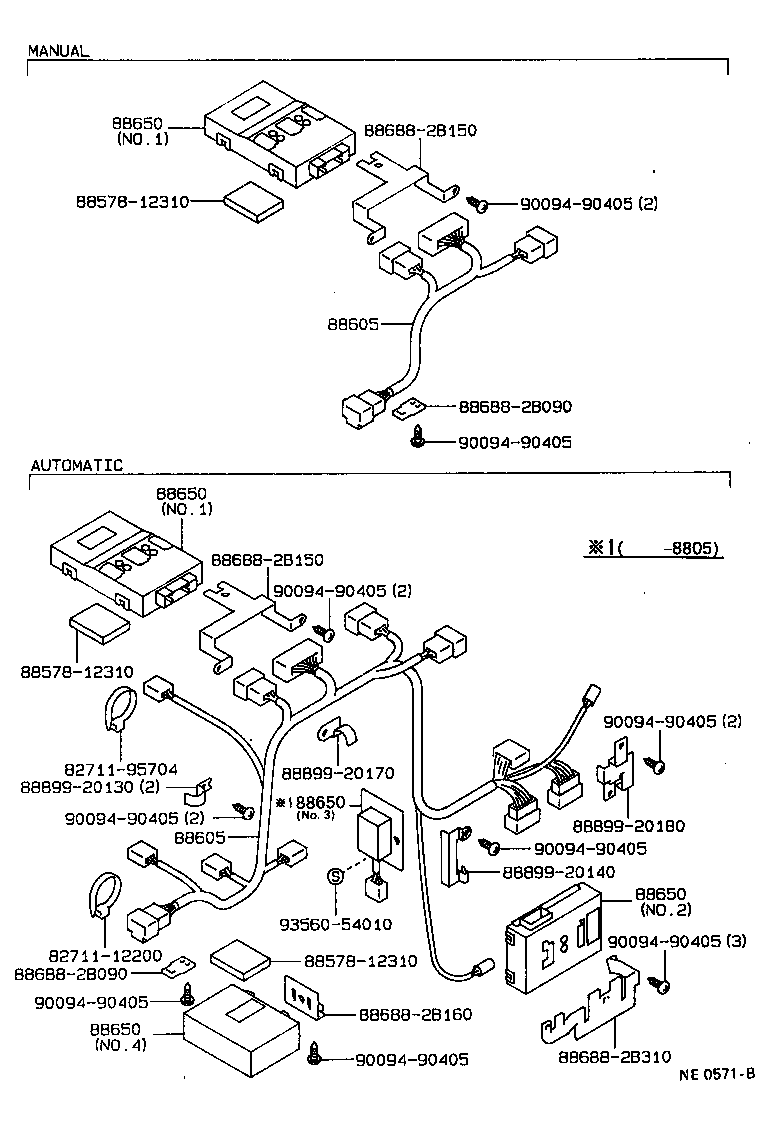

ILLUST NO. 2 OF 3(8712- )
PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B810 |
AT17#,ST171..5F..(EXG,EXS,G,SXR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B150 |
AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B100 |
AT170,ST171..MTM;ST170..EXS,MX,X,Z;AT175,ST171..4FC..(GT,GTR,MX) |
1 | ||
| 88605-2B100 |
AT170..MTM;AT170..4FC..(EXS,GX);ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88605-2B150 |
ST171..5F;AT170,ST170..EXS,X;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B630 |
ST171..5F;ST171..4FC..(GT,GTR) |
1 | ||
| 88605-2B640 |
ST171..5F;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B770 |
ST171..GT,GTR |
1 | ||
| 88605-2B790 |
AT17#,ST171..MTM..(EXG,EXS,G,GX,SELS,SXR) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B150 |
AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B100 |
AT170,ST171..MTM;ST170..EXS,MX,X,Z;AT175,ST171..4FC..(GT,GTR,MX) |
1 | ||
| 88605-2B100 |
AT170..MTM;AT170..4FC..(EXS,GX);ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 88605-2B150 |
ST171..5F;AT170,ST170..EXS,X;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B630 |
ST171..5F;ST171..4FC..(GT,GTR) |
1 | ||
| 88605-2B640 |
ST171..5F;ST171..4FC..(GT,GTR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88605-2B770 |
ST171..GT,GTR |
1 | ||
| 88605-2B790 |
AT17#,ST171..MTM..(EXG,EXS,G,GX,SELS,SXR) |
1 | ||
| 88605-2B810 |
AT17#,ST171..5F..(EXG,EXS,G,SXR) ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20590 |
ST170..EXS,GX,X,Z;AT17#,ST171..EXG,EXS,G,GT,GTR,SXR NO.3 |
1 | ||
| 88650-20500 |
AT170..4FC..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X NO.2 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.2 |
1 | ||
| 88650-20460 |
ST171..5F;ST171..4FC..(GT,GTR) NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.3 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z NO.3 |
1 | ||
| 88650-20510 |
ST17# NO.1 |
1 | ||
| 88650-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z NO.2 |
1 | ||
| 88650-20500 |
AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z NO.2 |
1 | ||
| 88650-20750 |
ST17# NO.1 |
1 | ||
| 88650-20590 |
AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z NO.3 |
1 | ||
| 88650-20750 |
ST17# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-95704 | ||||
| 88569-32010 | ||||
| 88578-12310 | ||||
| 88688-2B090 | ||||
| 88688-2B100 | ||||
| 88688-2B150 | ||||
| 88688-2B170 | ||||
| 88688-2B190 | ||||
| 88688-2B310 | ||||
| 88899-20130 | ||||
| 88899-20140 | ||||
| 88899-20170 | ||||
| 88899-20190 | ||||
| 90094-90405 | ||||
| 90099-00930 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
