ST171-ALMVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

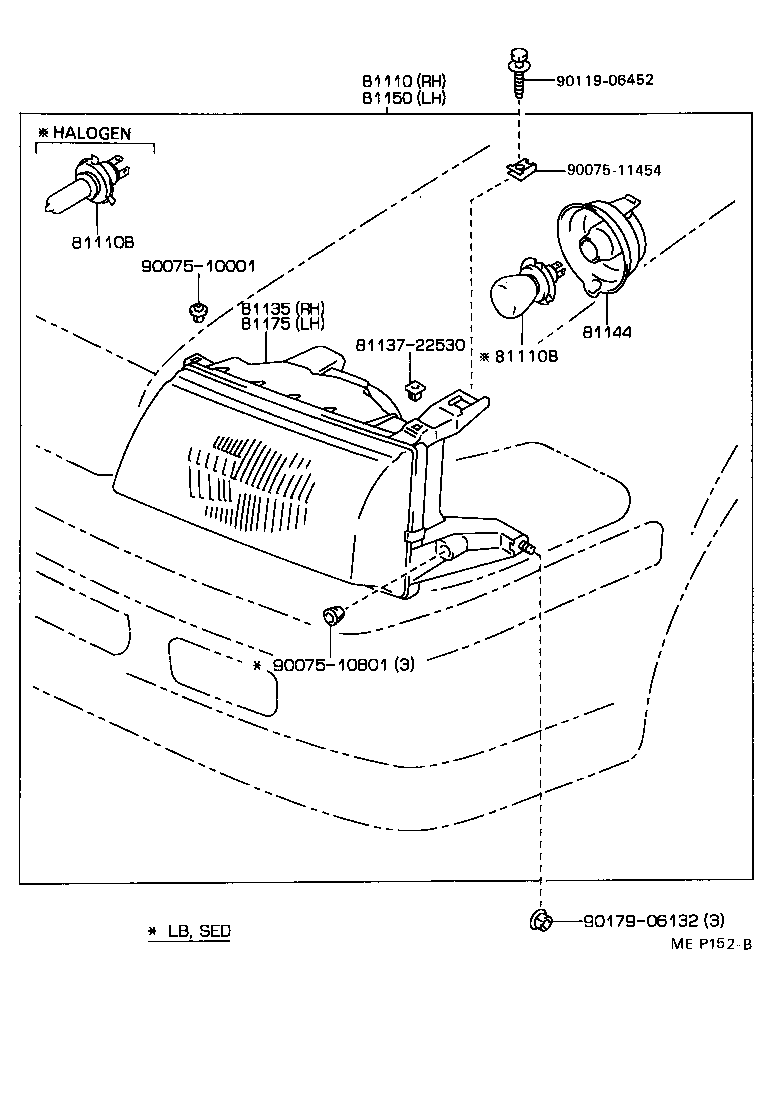

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722530 81144 81150 81175 9007510001 9007510801 9007511454 9011906452 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B230

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
81110-2B530

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B230

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
81130-2B530

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AT17#,CT17#,ET176,ST17#

 2
81150 - HEADLAMP ASSY, LH
81150-2B190

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
81150-2B490

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B490

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z

 1
81170-2B190

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
Common parts
81137-22530
90075-10001
90075-10801
90075-11454
90119-06452
90179-06132
