ST171-ALMGK (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT170,CT17#,ET176,ST17#

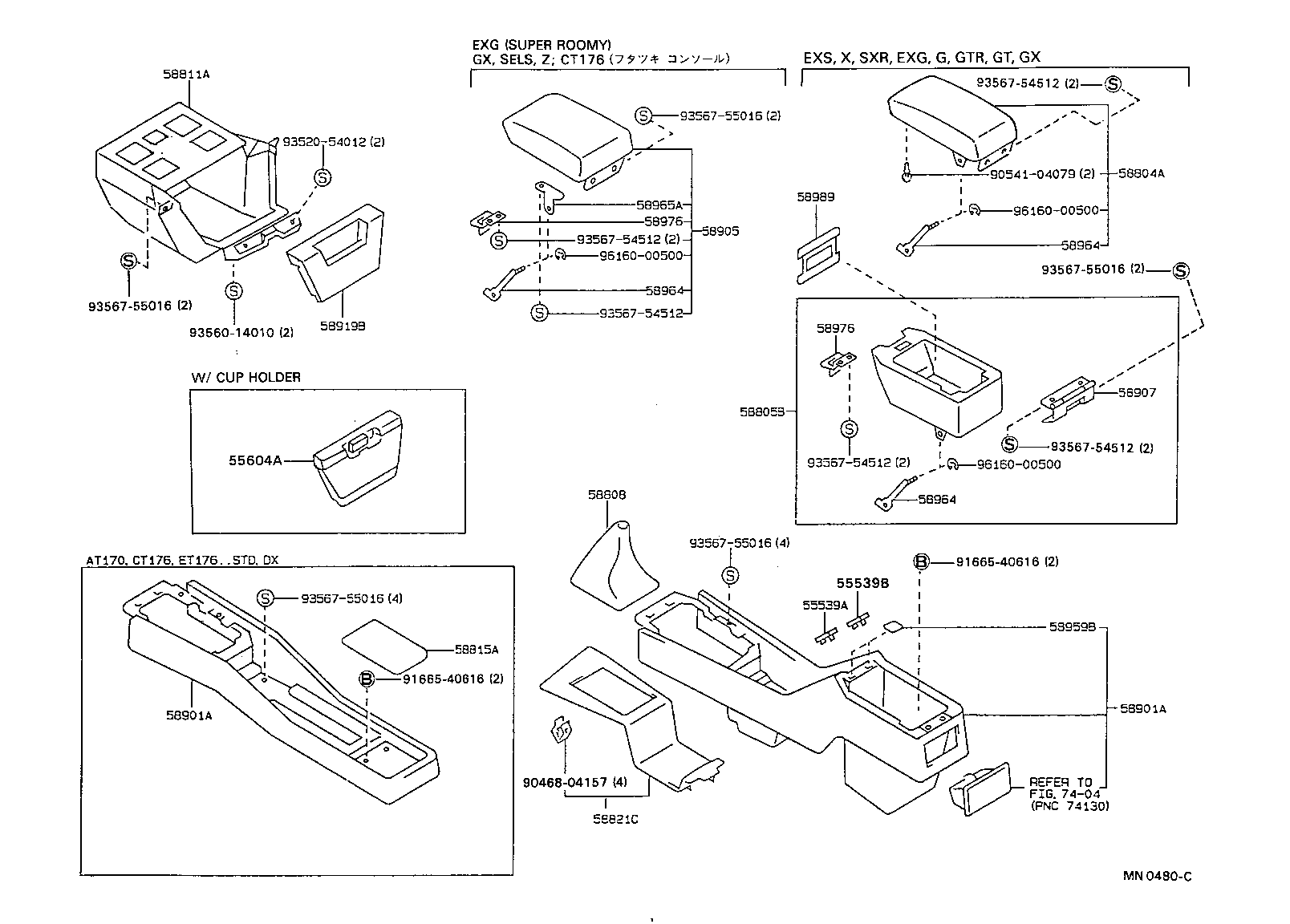

Click highlighted areas on diagram

diagram 55539A 55539B 55604A 58804A 58805B 58808 58811A 58815A 58821C 58901A 58901A 58905 58907 58919B 58959B 58964 58964 58964 58965A 58976 58976 58989 7404 9046804157 9054104079 9166540616 9166540616 9352054012 9356014010 9356754512 9356754512 9356754512 9356754512 9356754512 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2005003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

GRAY,TRIM1#

 1
55539-2005004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
55539-2005014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
55539-2005006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,X,Z

SABLE,TRIM4#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-2005006

ST171..5F..(EXG,G);AT17#,CT170,ET176,ST170..EXS,GX,MX,X,Z

SABLE,TRIM4#

 1
55539-2005004

ST171..5F..(EXG,G);AT17#,CT170,ST170..EXS,GX,MX,X,Z

BLUE,TRIM8#

 1
55539-2005003

ST171..5F;AT17#,CT170,ET176,ST170..EXS,GX,MX,X,Z

GRAY,TRIM1#

 1
55539-2005014

ST171..5F..(EXG,G);AT17#,CT170,ST170..EXS,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-2002014

AT17#,CT170,ST17#..EXG,EXS,G,X,Z

DARK BLUE,TRIM8#

 1
55604-2002006

AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z

SABLE,TRIM4#

 1
55604-2002004

AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z

BLUE,TRIM8#

 1
55604-2002003

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

GRAY,TRIM1#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-2003003

ST171..EXG,G

GRAY,TRIM1#

 1
58804-2003004

ST171..EXG,G

BLUE,TRIM8#

 1
58804-2003006

ST171..EXG,G

SABLE,TRIM4#

 1
58804-2008006

ST171..EXG,G

SABLE,TRIM4#

 1
58804-2008003

ST171..EXG,G

GRAY,TRIM1#

 1
58804-2008004

ST171..EXG,G

DARK BLUE,TRIM8#

 1
58805B - PANEL SUB-ASSY, CONSOLE, LOWER
58805-2001003

AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

GRAY,TRIM1#

 1
58805-2001003

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X

GRAY,TRIM1#

 1
58805-2001004

AT175;AT170,CT170,ST17#..EXG,EXS,G,GX,X

BLUE,TRIM8#

 1
58805-2001006

AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,X

SABLE,TRIM4#

 1
58805-2001006

AT17#,ST171..EXG,EXS,G;CT170,ST170..4FC..(EXS,X)

SABLE,TRIM4#

 1
58805-2001006

AT175;AT170,CT170,ST17#..EXG,EXS,G,GX,X

SABLE,TRIM4#

 1
58805-2001004

AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,X

BLUE,TRIM8#

 1
58805-2001014

AT17#,CT170,ST17#..EXG,EXS,G,X

DARK BLUE,TRIM8#

 1
58805-2001003

AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X

GRAY,TRIM1#

 1
58805-2001014

AT17#,ST171..EXG,EXS,G;CT170,ST170..4FC..(EXS,X)

DARK BLUE,TRIM8#

 1
58805-2001006

AT17#,CT170,ST17#..EXG,EXS,G,SELS,X

SABLE,TRIM4#

 1
58805-2001003

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2006004

AT17#,CT170,ST17#..MTM..(DX,EXG,EXS,G,GX,MX,X,Z)

BLUE,TRIM8#

 1
58808-2006003

AT17#,CT17#,ET176,ST17#..MTM

GRAY,TRIM1#

 1
58808-2006006

AT17#,CT17#,ET176,ST17#..MTM..(DX,EXG,EXS,G,GX,MX,SELS,X,Z)

SABLE,TRIM4#

 1
58808-2006014

AT17#,CT170,ST17#..MTM..(DX,EXG,EXS,G,GX,SELS,X,Z)

DARK BLUE,TRIM8#

 1
58811A - BOX, CONSOLE, FRONT
58811-20260

AT17#,CT17#,ET176,ST17#

 1
58821C - PANEL, CONSOLE, UPPER
58821-2010014

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
58821-2010004

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
58821-2010003

AT170,CT17#,ET176,ST17#

GRAY,TRIM1#

 1
58821-2010006

AT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-2010004

AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
58901-2010014

AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
58901-2010003

AT170,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#

 1
58901-2010006

AT170,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-2010004

AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
58901-2010014

AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
58901-2010003

AT170,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#

 1
58901-2010006

AT170,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-89101

AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
58907-89101

AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X

 1
58907-89101

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
58907-89101

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20020

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58964-30060

AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20020

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58964-30060

AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20020

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58964-30060

AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z

 1
58989 - PANEL, CONSOLE COMPARTMENT DOOR
58989-20030

AT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X

 1
58989-20030

AT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
58989-20030

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
58989-20030

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X

 1
Common parts
90468-04157
90541-04079
91665-40616
93520-54012
93560-14010
93567-54512
93567-55016
96160-00500
Linked diagrams
7404
