ST171-ALMGK (1987)
Toyota Corona

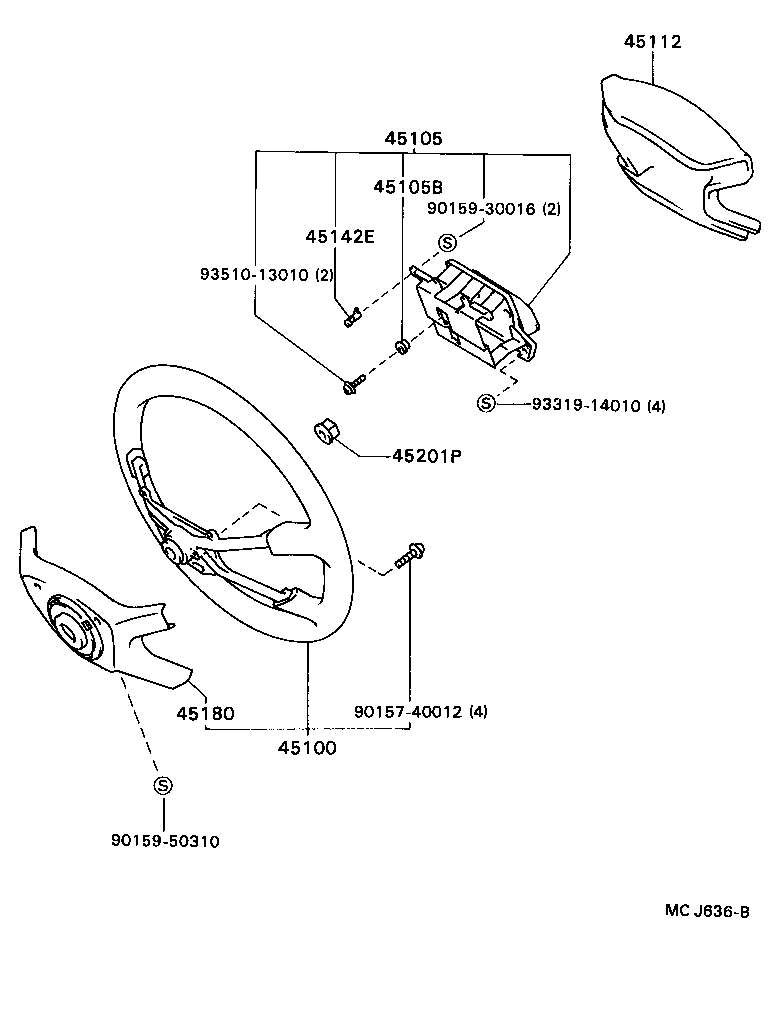

(8911- )EXG,EXS,G,GT,GTR,SXR,X,Z
4ｽﾎﾟ-ｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2061003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2061006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2062006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45100-2060006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2060003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2062004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45100-2060004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45100-2062003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2061004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45100-2077006 |
ST171..EXG,G ｱﾘ(*80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077004 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2087006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2087004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45100-2089004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B01004 |
ST171..EXG,G ｱﾘ(TEMS & *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2B01006 |
ST171..EXG,G ｱﾘ(TEMS & *80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G,GT,GTR ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2087003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2089003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2089006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20360 |
ST171 ｱﾘ(TEMS) |
1 | ||
| 45105-20370 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 45105-20350 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-02001 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z |
2 | ||
| 90561-02001 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
2 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-2041003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45112-2041006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45112-2051004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45112-2051006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45112-2051003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45112-2051003 |
ST171 GRAY,TRIM1# |
1 | ||
| 45112-2051004 |
ST171..EXG,G DARK BLUE,TRIM8# |
1 | ||
| 45112-2051006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45112-2041004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45142E - PIECE, HORN CONTACT | ||||
| 45142-20060 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45142-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
2 | ||
| 45142-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z |
2 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45184-2022004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45180-2008003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45184-2023004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45184-2022003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45180-2008006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45184-2023006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45184-2022006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2023003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45180-2008004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45184-2035003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45184-2036003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45184-2036004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45184-2035006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2035004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45184-2036006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-30016 | ||||
| 90159-50310 | ||||
| 93319-14010 | ||||
| 93510-13010 | ||||

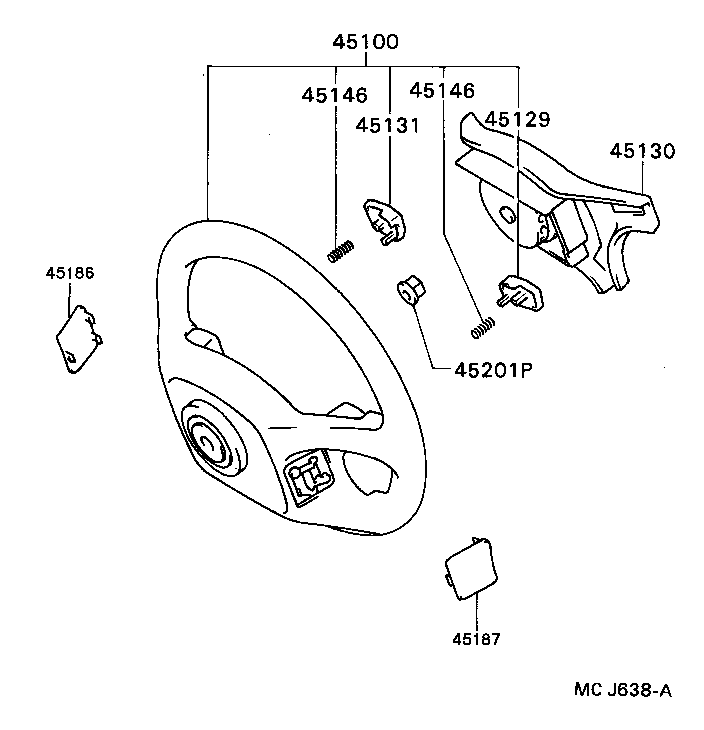

(8911- )EXG,G ; (9006- )GT,GTR
ｴｱﾊﾞﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2061003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2061006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2062006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45100-2060006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2060003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2062004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45100-2060004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45100-2062003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2061004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45100-2077006 |
ST171..EXG,G ｱﾘ(*80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077004 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2087006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2087004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45100-2089004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B01004 |
ST171..EXG,G ｱﾘ(TEMS & *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2B01006 |
ST171..EXG,G ｱﾘ(TEMS & *80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G,GT,GTR ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2087003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2089003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2089006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-2012016 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45129-2012003 |
AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,SELS,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45129-2012003 |
ST171..EXG,G SHADOW GRAY,TRIM1# |
1 | ||
| 45129-2012014 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z BLUE,TRIM8# |
1 | ||
| 45129-33010E1 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45129-2012016 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45129-33010J0 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45129-2012014 |
ST171..EXG,G BLUE,TRIM8# |
1 | ||
| 45129-33010B0 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45129-2012003 |
ST171..EXG,G,GT,GTR SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2085003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-2085006 |
ST171..EXG,G ｱﾘ(*80),SABLE,SABLE,TRIM4# |
1 | ||
| 45130-2085014 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 45130-3231006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45130-2085003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-3231013 |
ST171..EXG,G,GT,GTR GRAY,TRIM1# |
1 | ||
| 45130-3231014 |
ST171..EXG,G BLUE,TRIM8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-2024006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45131-2024003 |
ST171..EXG,G,GT,GTR SHADOW GRAY,TRIM1# |
1 | ||
| 45131-2024006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2021003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45131-2024003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45131-2024014 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z BLUE,TRIM8# |
1 | ||
| 45131-33010E1 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2021004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45131-2024014 |
ST171..EXG,G BLUE,TRIM8# |
1 | ||
| 45131-2021006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2024003 |
ST171..EXG,G SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010B0 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010J0 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
ST171..EXG,G |
2 | ||
| 45146-20180 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45146-20230 |
ST171..EXG,G,GT,GTR |
2 | ||
| 45146-20230 |
AT170,CT170,ST17# |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
ST171..EXG,G |
2 | ||
| 45146-20180 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45146-20230 |
ST171..EXG,G,GT,GTR |
2 | ||
| 45146-20230 |
AT170,CT170,ST17# |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-2002006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45186-2002003 |
ST171..EXG,G SHADOW GRAY,TRIM1# |
1 | ||
| 45186-2002003 |
ST171..5F..(EXG,G) SHADOW GRAY,TRIM1# |
1 | ||
| 45186-2002014 |
ST171..5F..(EXG,G) DARK BLUE,TRIM8# |
1 | ||
| 45186-2002006 |
ST171..5F..(EXG,G) SABLE,TRIM4# |
1 | ||
| 45186-2002014 |
ST171..EXG,G DARK BLUE,TRIM8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-2001014 |
ST171..EXG,G DARK BLUE,TRIM8# |
1 | ||
| 45187-2001003 |
ST171..EXG,G SHADOW GRAY,TRIM1# |
1 | ||
| 45187-2001003 |
ST171..EXG,G,GT,GTR SHADOW GRAY,TRIM1# |
1 | ||
| 45187-2001006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45187-2001003 |
AT170,CT170,ST17#..EXG,G,GT,GTR,GX SHADOW GRAY,TRIM1# |
1 | ||
| 45187-2001006 |
AT170,CT170,ST17#..EXG,G,GX SABLE,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT17#,CT17#,ET176,ST17# |
1 | ||
(8712-8911)EXS,MX ; (8810-8911)
(8810-8911)ｾﾚｸﾄ ｻﾙ-ﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2061003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2061006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2062006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45100-2060006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2060003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2062004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45100-2060004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45100-2062003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2061004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45100-2077006 |
ST171..EXG,G ｱﾘ(*80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077004 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2087006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2087004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45100-2089004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B01004 |
ST171..EXG,G ｱﾘ(TEMS & *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2B01006 |
ST171..EXG,G ｱﾘ(TEMS & *80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G,GT,GTR ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2087003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2089003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2089006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20360 |
ST171 ｱﾘ(TEMS) |
1 | ||
| 45105-20370 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 45105-20350 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2085003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-2085006 |
ST171..EXG,G ｱﾘ(*80),SABLE,SABLE,TRIM4# |
1 | ||
| 45130-2085014 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 45130-3231006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45130-2085003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-3231013 |
ST171..EXG,G,GT,GTR GRAY,TRIM1# |
1 | ||
| 45130-3231014 |
ST171..EXG,G BLUE,TRIM8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45184-2022004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45180-2008003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45184-2023004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45184-2022003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45180-2008006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45184-2023006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45184-2022006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2023003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45180-2008004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45184-2035003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45184-2036003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45184-2036004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45184-2035006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2035004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45184-2036006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90159-50229 | ||||
(8712-8911)EXG,G,GT,GTR,SXR,X,Z ; (8812-8911)
(8812-8911)EX ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2061003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2061006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2062006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45100-2060006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2060003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2062004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45100-2060004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45100-2062003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2061004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45100-2077006 |
ST171..EXG,G ｱﾘ(*80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G,GT,GTR ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077003 |
ST171..EXG,G ｱﾘ(*80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-2077004 |
ST171..EXG,G ｱﾘ(*80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45100-2087006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45100-2087004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45100-2089004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45100-2B01004 |
ST171..EXG,G ｱﾘ(TEMS & *80),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45100-2088006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45100-2B01006 |
ST171..EXG,G ｱﾘ(TEMS & *80),SABLE,TRIM4# |
1 | ||
| 45100-2B01003 |
ST171..EXG,G,GT,GTR ｱﾘ(TEMS & *80),GRAY,TRIM1# |
1 | ||
| 45100-2087003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45100-2089003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45100-2089006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-2041003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45112-2041006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45112-2051004 |
ST17#..EXG,G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45112-2051006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45112-2051003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45112-2051003 |
ST171 GRAY,TRIM1# |
1 | ||
| 45112-2051004 |
ST171..EXG,G DARK BLUE,TRIM8# |
1 | ||
| 45112-2051006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45112-2041004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-20090 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-20090 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-2024006 |
ST171..EXG,G SABLE,TRIM4# |
1 | ||
| 45131-2024003 |
ST171..EXG,G,GT,GTR SHADOW GRAY,TRIM1# |
1 | ||
| 45131-2024006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2021003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45131-2024003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45131-2024014 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z BLUE,TRIM8# |
1 | ||
| 45131-33010E1 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2021004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45131-2024014 |
ST171..EXG,G BLUE,TRIM8# |
1 | ||
| 45131-2021006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45131-2024003 |
ST171..EXG,G SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010B0 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 45131-33010J0 |
AT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z DARK BLUE,TRIM8# |
1 | ||
| 45136F - PLATE, HORN BUTTON CONTACT, NO.1 | ||||
| 45136-20210 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
1 | ||
| 45137A - PLATE, HORN BUTTON CONTACT, NO.2 | ||||
| 45137-20050 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
1 | ||
| 45137-20060 |
ST171 ｱﾘ(TEMS) |
1 | ||
| 45137-20070 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 45142E - PIECE, HORN CONTACT | ||||
| 45142-20060 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45142-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z |
2 | ||
| 45142-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
ST171..EXG,G |
2 | ||
| 45146-20180 |
ST17#..EXG,G,GT,GTR,SXR,X,Z |
2 | ||
| 45146-20230 |
ST171..EXG,G,GT,GTR |
2 | ||
| 45146-20230 |
AT170,CT170,ST17# |
2 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45184-2022004 |
ST171..EXG,G ｱﾘ(TEMS),BLUE,TRIM8# |
1 | ||
| 45180-2008003 |
ST17#..EXG,G,GT,GTR,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 45184-2023004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),BLUE,TRIM8# |
1 | ||
| 45184-2022003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45180-2008006 |
ST17#..EXG,G,X,Z SABLE,TRIM4# |
1 | ||
| 45184-2023006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45184-2022006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2023003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45180-2008004 |
ST17#..EXG,G,X,Z BLUE,TRIM8# |
1 | ||
| 45184-2035003 |
ST171 ｱﾘ(TEMS),GRAY,TRIM1# |
1 | ||
| 45184-2036003 |
ST17#..EXG,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),GRAY,TRIM1# |
1 | ||
| 45184-2036004 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),DARK BLUE,TRIM8# |
1 | ||
| 45184-2035006 |
ST171..EXG,G ｱﾘ(TEMS),SABLE,TRIM4# |
1 | ||
| 45184-2035004 |
ST171..EXG,G ｱﾘ(TEMS),DARK BLUE,TRIM8# |
1 | ||
| 45184-2036006 |
ST17#..EXG,G,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),SABLE,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90159-40157 | ||||
| 93385-15016 | ||||
| 93510-13010 | ||||
| 93510-14012 | ||||
| 93510-15014 | ||||
| Linked diagrams | ||||
| 8408 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
