ST171-ALMGK (1987)
Toyota Corona

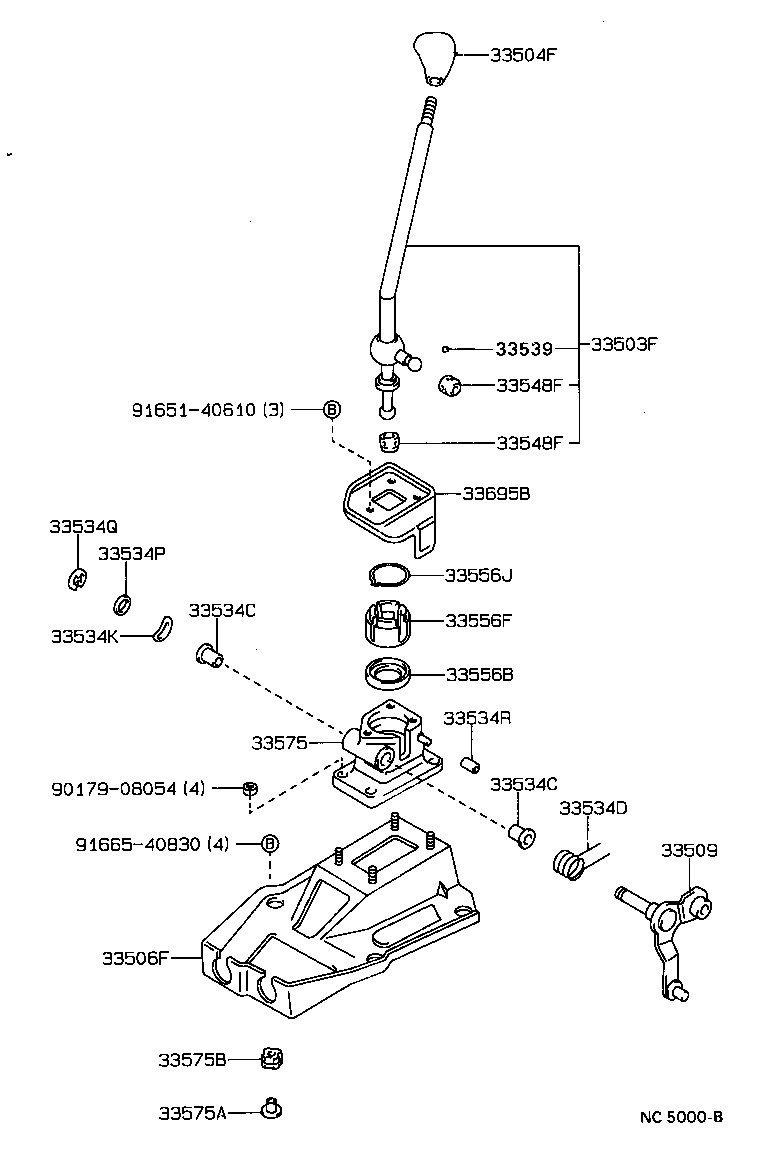

ILLUST NO. 1 OF 2(8712- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-20390 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2008006 |
ST17#..5F..(EXG,G,X,Z) SABLE,TRIM4# |
1 | ||
| 33504-2008003 |
ST17#..5F..(EXG,G,GT,GTR,SXR,X,Z) GRAY,TRIM1# |
1 | ||
| 33504-2008004 |
ST17#..5F..(EXG,G,X,Z) BLUE,TRIM8# |
1 | ||
| 33504-2008014 |
ST17#..5F..(EXG,G,X,Z) DARK BLUE,TRIM8# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-20220 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-12060 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-34002 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-16040 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
AT17#,CT17#,ET176,ST17#..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10020 |
AT17#,CT17#,ET176,ST17#..MTM |
4 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-20010 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||

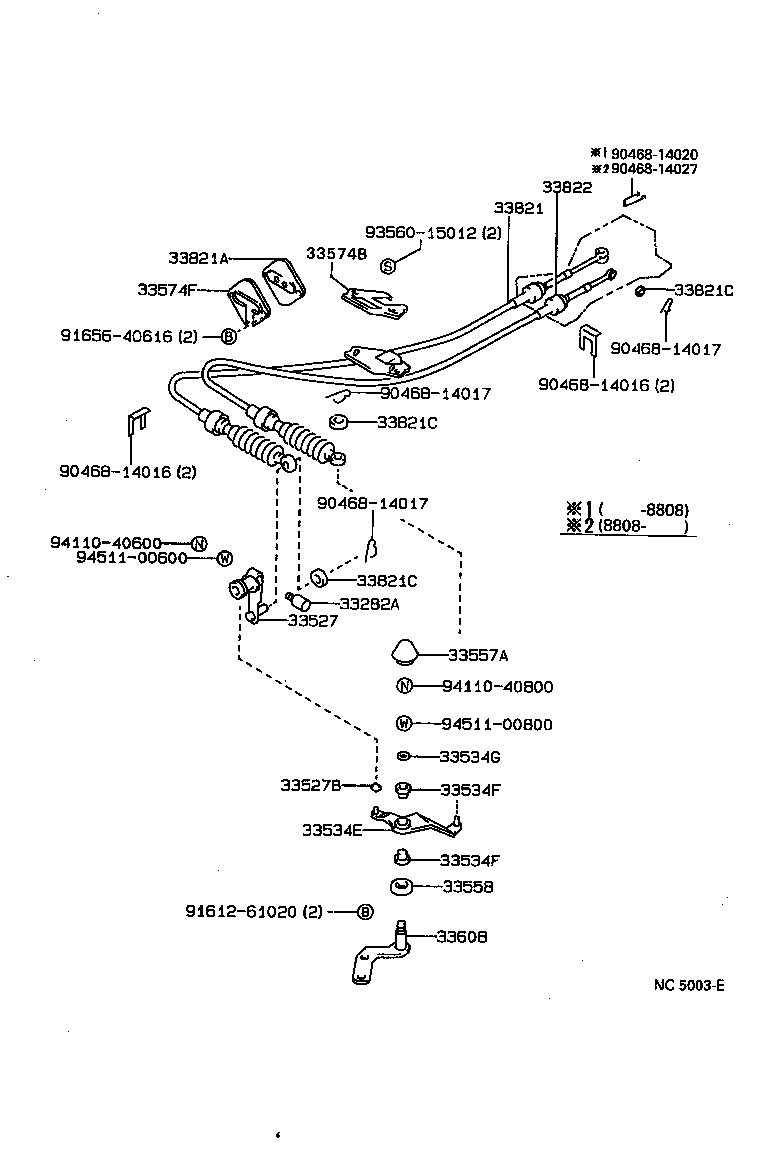

ILLUST NO. 2 OF 2(8712- )CT17#,ST17#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
CT17#,ST17#..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
CT17#,ST17#..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
AT175,CT17#,ST17#..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-32030 |
CT17#,ST17#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
CT17#,ST17#..5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-20210 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33574-20210 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-20280 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-32020 |
CT17#,ST17#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-20370 |
ST17#..5F |
1 | ||
| 33821-20730 |
ST17#..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01459 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AT17#,CT17#,ET176,ST17#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AT17#,CT17#,ET176,ST17#..MTM SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AT17#,CT17#,ET176,ST17#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AT17#,CT17#,ET176,ST17#..MTM SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AT17#,CT17#,ET176,ST17#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AT17#,CT17#,ET176,ST17#..MTM SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-20150 |
ST17#..5F |
1 | ||
| 33822-20290 |
ST17#..5F |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 90468-14027 | ||||
| 91612-61020 | ||||
| 91656-40616 | ||||
| 93560-15012 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
