ST171-ALMGK (1987)
Toyota Corona

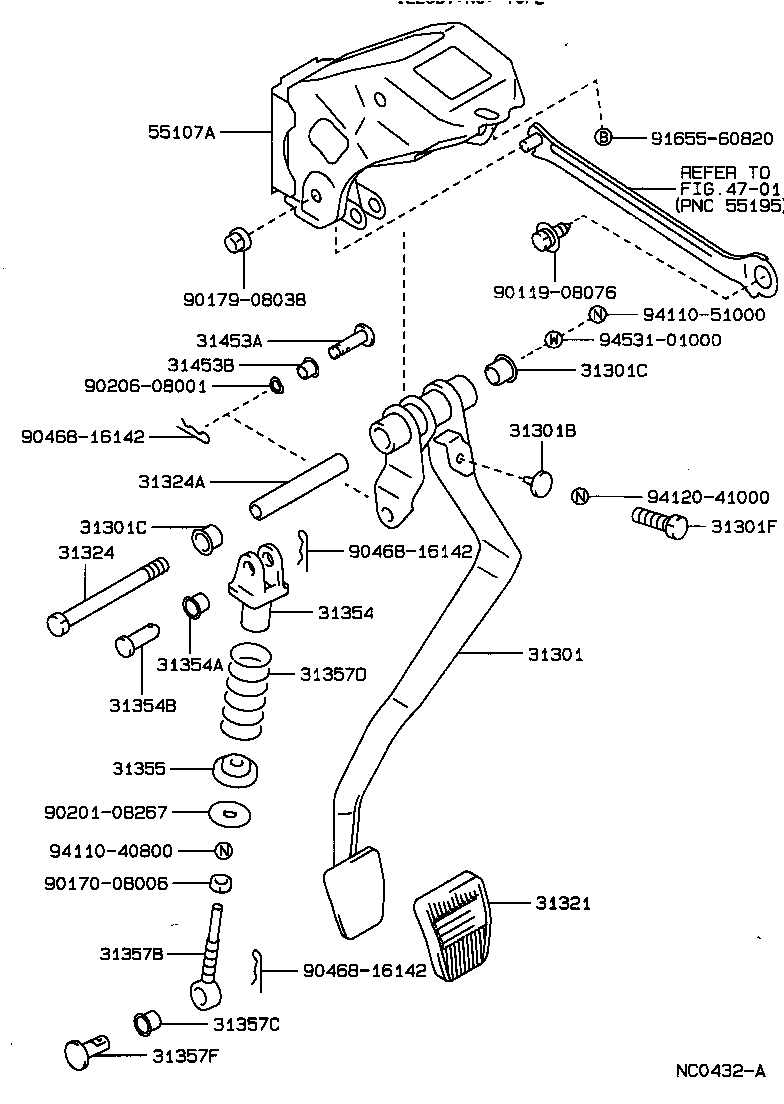

ILLUST NO. 1 OF 2(8712- )ST171..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20270 |
ST171..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-07020 |
ST171..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
AT17#,CT17#,ET176,ST17#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10100 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10002 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-12010 |
ST171..5F |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
ST171..5F |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90240-10029 |
ST171..5F |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-20020 |
ST171..5F |
1 | ||
| 31357B - ROD, OVER CENTER ADJUSTING | ||||
| 31357-32010 |
ST171..5F |
1 | ||
| 31357C - BUSH(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90386-10019 |
ST171..5F |
1 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90501-50008 |
ST171..5F |
1 | ||
| 31357F - PIN, W/HOLE(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90240-10017 |
ST171..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AT17#,CT17#,ET176,ST17#..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20250 |
ST171..5F |
1 | ||
| Common parts | ||||
| 90119-08076 | ||||
| 90170-08006 | ||||
| 90179-08038 | ||||
| 90201-08267 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4701 | ||||

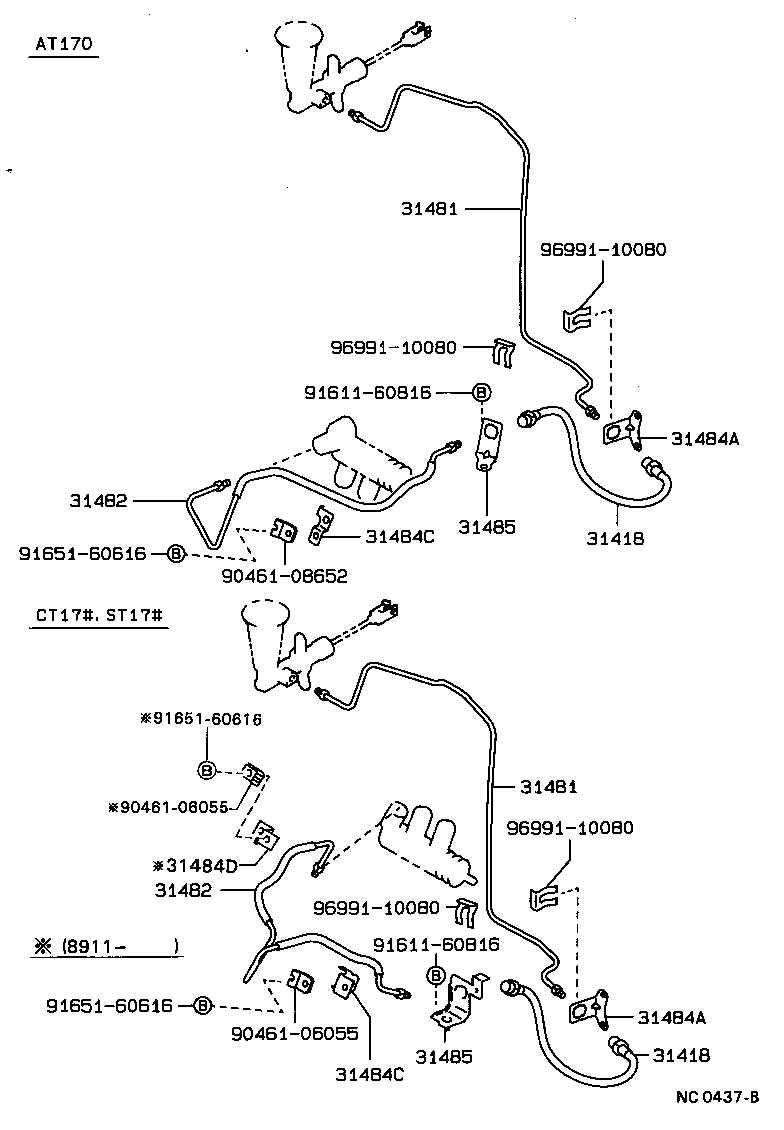

ILLUST NO. 2 OF 2(8712- )AT170,CT17#,ST17#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01045 |
CT17#,ST17#..5F |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90931-01045 |
CT17#,ST17#..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20330 |
AT170,ET176,ST17#..MTM |
1 | ||
| 31481-20370 |
ST171..5F ｱﾘ(*66) |
1 | ||
| 31481-20520 |
ST171..5F..(EXG,G,SXR) ｱﾘ(*66) |
1 | ||
| 31481-20520 |
ST171..5F..(EXG,G,SXR) ｱﾘ(*66) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20330 |
AT170,ET176,ST17#..MTM |
1 | ||
| 31481-20370 |
ST171..5F ｱﾘ(*66) |
1 | ||
| 31481-20520 |
ST171..5F..(EXG,G,SXR) ｱﾘ(*66) |
1 | ||
| 31481-20520 |
ST171..5F..(EXG,G,SXR) ｱﾘ(*66) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20380 |
ST17#..5F..(EXG,EXS,G,GX,MX,SELS,SXR,X,Z) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20380 |
ST17#..5F..(EXG,EXS,G,GX,MX,SELS,SXR,X,Z) |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20240 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20240 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CT17#,ST17#..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CT17#,ST17#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20300 |
CT17#,ST17#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20300 |
CT17#,ST17#..5F |
1 | ||
| Common parts | ||||
| 90461-06055 | ||||
| 90461-08652 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
| 96991-10080 | ||||
