ST171-AEPVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST171

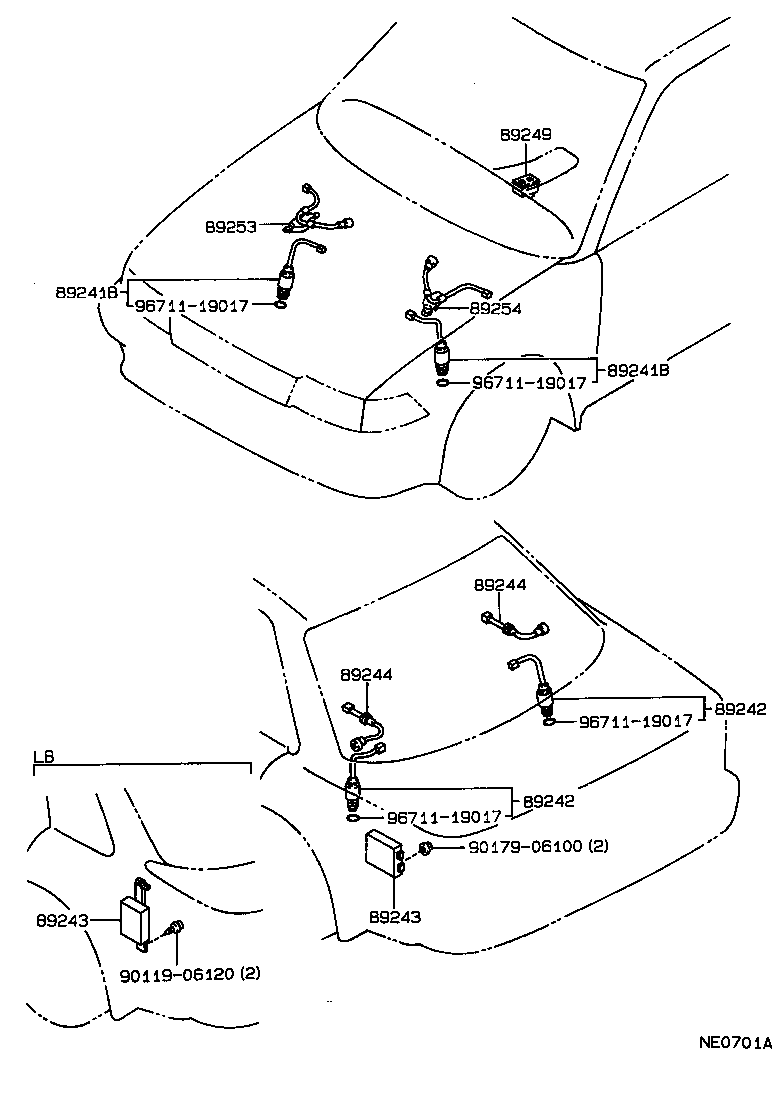

Click highlighted areas on diagram

diagram 89241B 89241B 89242 89242 89243 89243 89244 89244 89249 89253 89254 9011906120 9017906100 9671119017 9671119017 9671119017 9671119017
Part # Description Qty Price
89241B - ACTUATOR, ABSORBER CONTROL
89241-20020

ST171

 2
89241B - ACTUATOR, ABSORBER CONTROL
89241-20020

ST171

 2
89242 - ACTUATOR, ABSORBER CONTROL, RR
89242-20020

ST171

 2
89242 - ACTUATOR, ABSORBER CONTROL, RR
89242-20020

ST171

 2
89243 - COMPUTER, ABSORBER CONTROL
89243-20070

ST171..SED

 1
89243-20071

ST171..SED

 1
89243 - COMPUTER, ABSORBER CONTROL
89243-20070

ST171..SED

 1
89243-20071

ST171..SED

 1
89244 - WIRE, ABSORBER CONTROL, REAR
89244-32010

ST171

 2
89244-20010

ST171

 2
89244-32010

ST171

 2
89244 - WIRE, ABSORBER CONTROL, REAR
89244-32010

ST171

 2
89244-20010

ST171

 2
89244-32010

ST171

 2
89249 - SWITCH, ABSORBER CONTROL
89249-20020

ST171

 1
89253 - WIRE, ABSORBER CONTROL, FRONT RH
89253-20020

ST171

 1
89254 - WIRE, ABSORBER CONTROL, FRONT LH
89254-20020

ST171

 1
Common parts
90119-06120
90179-06100
96711-19017
