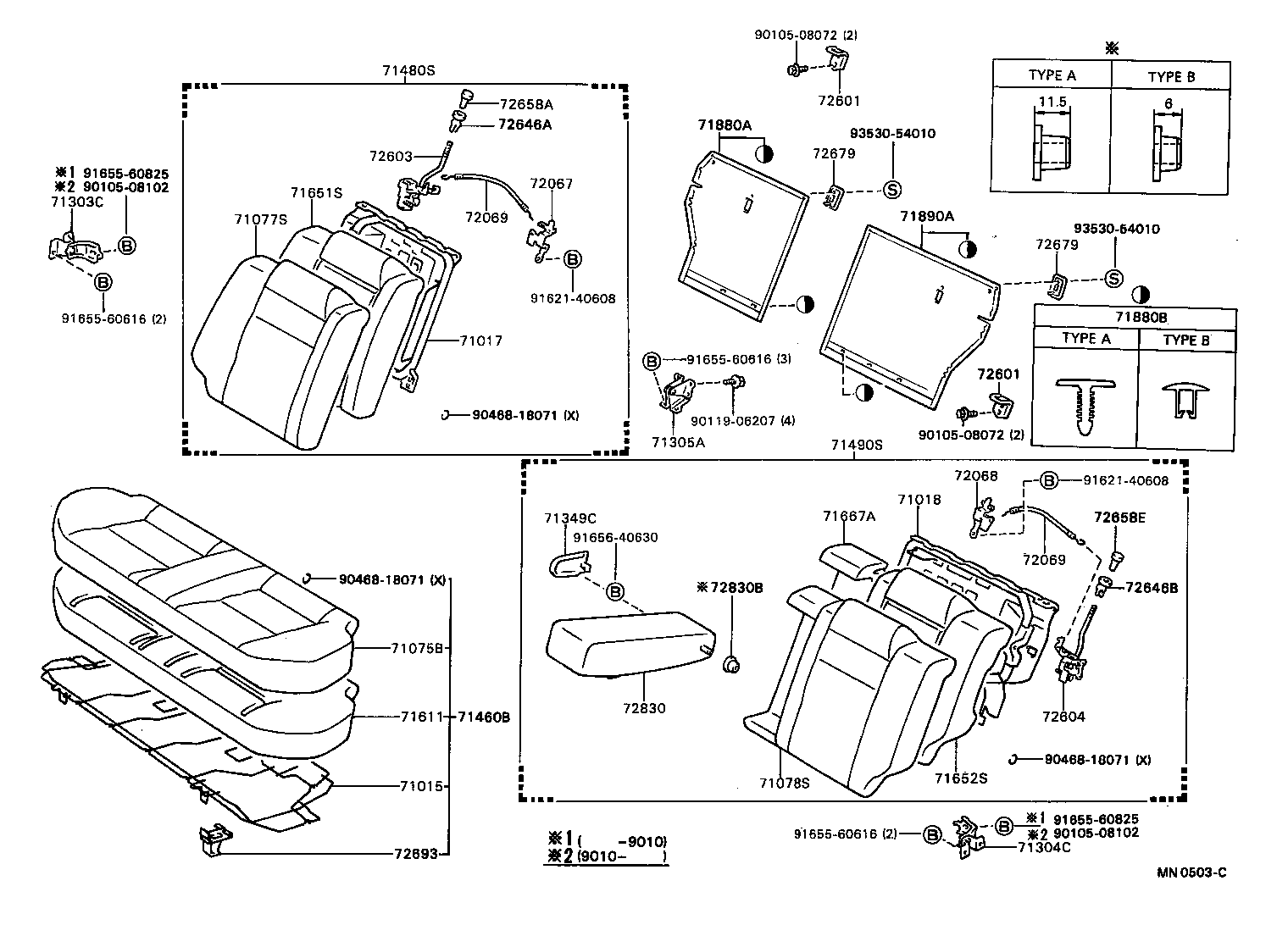

ST171-AEPSK (1987)
Toyota Corona
(8712- )EXG,EXS,GTR,SXR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20290 |
AT170,CT170,ST17# |
1 | ||
| 71015-20291 |
AT170,CT170,ST17# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20390 |
ST171..SED |
1 | ||
| 71017-20391 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20121 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71018-20120 |
ST171..SED |
2 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2088006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 71065-2088003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 71065-2089003 |
ST171..GT,GTR,SXR GRAY,TRIM1# |
1 | ||
| 71065-2088004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 71065-2088104 |
AT170,CT170,ST17#..EXG,EXS,G,X DARK BLUE,TRIM8# |
1 | ||
| 71065-2088103 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 71065-2088106 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 71065-2089103 |
ST171..GT,GTR,SXR GARY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2D18006 |
ST17#..G,X SABLE,TRIM4# |
1 | ||
| 71077-2D15003 |
ST171..GTR,SXR GRAY,TRIM1# |
1 | ||
| 71077-2D15103 |
ST171..GTR,SXR GARY,TRIM1# |
1 | ||
| 71077-2D18103 |
ST17#..G,X GRAY,TRIM1# |
1 | ||
| 71077-2D18004 |
ST17#..G,X BLUE,TRIM8# |
1 | ||
| 71077-2D18104 |
ST17#..G,X DARK BLUE,TRIM8# |
1 | ||
| 71077-2D18003 |
ST17#..G,X GRAY,TRIM1# |
1 | ||
| 71077-2D18106 |
ST17#..G,X SABLE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2050003 |
ST171..GTR,SXR GRAY,TRIM1# |
1 | ||
| 71078-2053003 |
ST17#..G,X GRAY,TRIM1# |
1 | ||
| 71078-2053004 |
ST17#..G,X BLUE,TRIM8# |
1 | ||
| 71078-2050103 |
ST171..GTR,SXR GARY,TRIM1# |
1 | ||
| 71078-2053006 |
ST17#..G,X SABLE,TRIM4# |
1 | ||
| 71078-2053103 |
ST17#..G,X GRAY,TRIM1# |
1 | ||
| 71078-2053106 |
ST17#..G,X SABLE,TRIM4# |
1 | ||
| 71078-2053104 |
ST17#..G,X DARK BLUE,TRIM8# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20040 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71303-20040 |
ST171..SED |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20040 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71304-20040 |
ST171..SED |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20070 |
AT170,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71305-20070 |
ST171..SED |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-3203013 |
ST171..SED GRAY,TRIM1# |
1 | ||
| 71349-3203013 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2082004 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,BLUE,TRIM8# |
1 | ||
| 71560-2083003 |
ST171..GT,GTR,SXR ***,GRAY,TRIM1# |
1 | ||
| 71560-2082003 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,GRAY,TRIM1# |
1 | ||
| 71560-2082006 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,SABLE,TRIM4# |
1 | ||
| 71560-2083103 |
ST171..GT,GTR,SXR ***,GARY,TRIM1# |
1 | ||
| 71560-2082104 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2082103 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,GRAY,TRIM1# |
1 | ||
| 71560-2082106 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,SABLE,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2D14103 |
ST171..GTR,SXR ***,GARY,TRIM1# |
1 | ||
| 71480-2D24004 |
ST17#..G,X ***,BLUE,TRIM8# |
1 | ||
| 71480-2D24003 |
ST17#..G,X ***,GRAY,TRIM1# |
1 | ||
| 71480-2D14003 |
ST171..GTR,SXR ***,GRAY,TRIM1# |
1 | ||
| 71480-2D24006 |
ST17#..G,X ***,SABLE,TRIM4# |
1 | ||
| 71480-2D24104 |
ST17#..G,X ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2D24106 |
ST17#..G,X ***,SABLE,TRIM4# |
1 | ||
| 71480-2D24103 |
ST17#..G,X ***,GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2044003 |
ST171..GTR,SXR ***,GRAY,TRIM1# |
1 | ||
| 71490-2053004 |
ST17#..G,X ***,BLUE,TRIM8# |
1 | ||
| 71490-2053006 |
ST17#..G,X ***,SABLE,TRIM4# |
1 | ||
| 71490-2053106 |
ST17#..G,X ***,SABLE,TRIM4# |
1 | ||
| 71490-2044103 |
ST171..GTR,SXR ***,GARY,TRIM1# |
1 | ||
| 71490-2053103 |
ST17#..G,X ***,GRAY,TRIM1# |
1 | ||
| 71490-2053003 |
ST17#..G,X ***,GRAY,TRIM1# |
1 | ||
| 71490-2053104 |
ST17#..G,X ***,DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20440 |
AT170,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71611-20441 |
AT170,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71611-20421 |
AT170,CT170,ST17#..DX,GT,GTR,GX,SELS,SXR,Z |
1 | ||
| 71611-20420 |
AT170,CT170,ST17#..DX,GT,GTR,GX,MX,STD,SXR,Z |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20491 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71651-20490 |
ST171..SED |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20291 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71652-20290 |
ST171..SED |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-20080 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 71667-20080 |
ST171..SED |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-2007003 |
ST171..SXR GRAY,TRIM1# |
1 | ||
| 71880-2007103 |
AT170,CT170,ST17#..EXS,SXR GRAY,TRIM1# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0601633 |
ST171..SED GRAY,TRIM1#,ﾀｲﾌﾟ A |
13 | ||
| 90467-09066B1 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
5 | ||
| 90467-09066B1 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
5 | ||
| 90467-09066B0 |
ST171..GTR,SXR GRAY,TRIM1#,ﾀｲﾌﾟ B |
5 | ||
| 90467-09066E0 |
ST171..SED TYPE B,SABLE,SABLE,TRIM4# |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-2001003 |
ST171..SXR GRAY,TRIM1# |
1 | ||
| 71890-2001103 |
AT170,CT170,ST17#..EXS,SXR GRAY,TRIM1# |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72067-20010 |
ST171..SED |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72068-20010 |
ST171..SED |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
2 | ||
| 72069-20020 |
ST171..SED |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
2 | ||
| 72069-20020 |
ST171..SED |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16060 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
2 | ||
| 72601-16060 |
ST171..SED |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16060 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
2 | ||
| 72601-16060 |
ST171..SED |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20030 |
ST171..SED |
1 | ||
| 72603-20030 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72603-20080 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20080 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72604-20030 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR |
1 | ||
| 72604-20030 |
ST171..SED |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2004003 |
ST171..SED GRAY,TRIM1# |
1 | ||
| 72646-2005003 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2004003 |
ST171..SED GRAY,TRIM1# |
1 | ||
| 72646-2005003 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301023 |
ST171..SED GRAY,TRIM1# |
1 | ||
| 72658-2301023 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
1 | ||
| 72658E - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301023 |
ST171..SED GRAY,TRIM1# |
1 | ||
| 72658-2301023 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601003 |
ST171..SED GRAY,TRIM1# |
2 | ||
| 72679-1601003 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601003 |
ST171..SED GRAY,TRIM1# |
2 | ||
| 72679-1601003 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
AT17#,CT170,ST17# |
2 | ||
| 72693-32030 |
AT17#,CT170,ST17# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-2021003 |
ST171..GTR,SXR GRAY,TRIM1# |
1 | ||
| 72830-2021103 |
ST171..GTR,SXR GARY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
ST171..SED ﾀｲﾌﾟ A |
1 | ||
| 90386-06002 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR ﾀｲﾌﾟ A |
1 | ||
| 90386-06028 |
AT17#,CT170,ST17#..EXG,EXS,GTR,SXR ﾀｲﾌﾟ B |
1 | ||
| 90386-06028 |
ST171..SED ﾀｲﾌﾟ B |
1 | ||
| Common parts | ||||
| 90105-08072 | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90468-18071 | ||||
| 91621-40608 | ||||
| 91655-60616 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 93530-54010 | ||||
