ST171-AEPSK (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT170,CT170,ST17#..SED

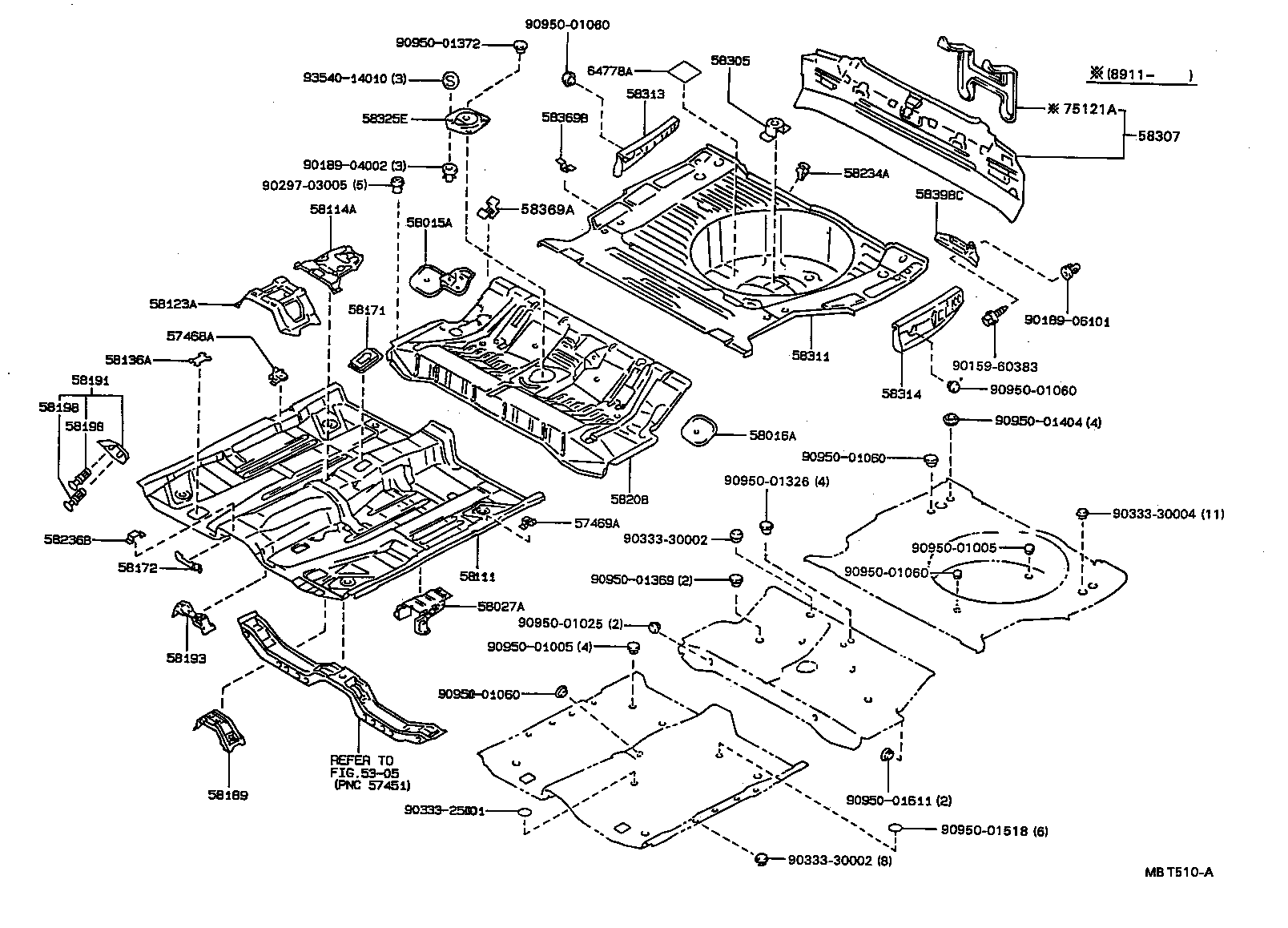

Click highlighted areas on diagram

diagram 5305 57468A 57469A 58015A 58016A 58027A 58111 58114A 58123A 58136A 58171 58172 58189 58191 58193 58198 58198 58208 58234A 58236B 58305 58307 58311 58313 58314 58325E 58369A 58369B 58398C 64778A 75121A 9015960383 9018904002 9018906101 9029703005 9033325001 9033330002 9033330002 9033330004 9095001005 9095001005 9095001025 9095001060 9095001060 9095001060 9095001060 9095001060 9095001326 9095001369 9095001372 9095001404 9095001518 9095001611 9354014010
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20030

AT170,CT17#,ET176,ST17#

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20030

AT170,CT17#,ET176,ST17#

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-32030

AT170,CT170,ST17#..SED

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-32020

AT170,CT170,ST17#

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20070

AT170,CT17#,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z

 1
58111 - PAN, FRONT FLOOR
58111-20120

AT170,CT17#,ET176,ST17#

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20040

AT170,CT17#,ET176,ST17#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20040

AT170,CT17#,ET176,ST17#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-20010

AT170,CT17#,ET176,ST17#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20080

AT170,CT17#,ET176,ST17#

 1
58107-20040

AT170,CT17#,ET176,ST17#

 1
58107-20040

AT170,CT17#,ET176,ST17#

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-20040

AT170,CT17#,ET176,ST17#

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-20020

AT170,CT17#,ET176,ST17#

 1
58191 - FOOTREST, FRONT FLOOR
58191-20040

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20090

AT170,CT17#,ET176,ST17#

 1
58198 - CLIP, FOOTREST
58198-20020

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=97.1

 1
58198-20030

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=89.1

 1
58198 - CLIP, FOOTREST
58198-20020

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=97.1

 1
58198-20030

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=89.1

 1
58208 - PAN, CENTER FLOOR
58211-32050

AT170,CT170,ST17#

 1
58211-32051

AT170,CT170,ST17#..SED

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32020

AT170,CT170,ST17#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT17#,CT170,ST17#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20633

AT170,CT170,ST17#..SED

 1
58307-20632

AT170,CT170,ST17#..SED

 1
58307-20631

AT170,CT170,ST17#..SED

 1
58307-20850

AT170,CT170,ST17#..SED

 1
58307-20630

AT170,CT170,ST17#..SED

 1
58311 - PAN, REAR FLOOR
58311-32090

AT170,CT170,ST17#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-20210

AT170,CT170,ST17#..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-20190

AT170,CT170,ST17#..SED

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32020

AT170,CT170,ST17#

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,CT170,ST17#

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,CT170,ST17#

 2
58398C - COVER, BODY LOWER BACK, LH
58398-20050

AT170,CT170,ST17#

 1
64778A - PROTECTOR, SPARE WHEEL
64778-14020

AT17#,ST17#;CT170..EXS,GX

 3
64778-14020

AT17#,ST17#

 3
75121A - BRACKET, REAR LICENSE PLATE
75121-20150

AT17#,CT170,ST17#

 1
Common parts
90159-60383
90189-04002
90189-06101
90297-03005
90333-25001
90333-30002
90333-30004
90950-01005
90950-01025
90950-01060
90950-01326
90950-01369
90950-01372
90950-01404
90950-01518
90950-01611
93540-14010
Linked diagrams
5305

(9005- )ST171..SED

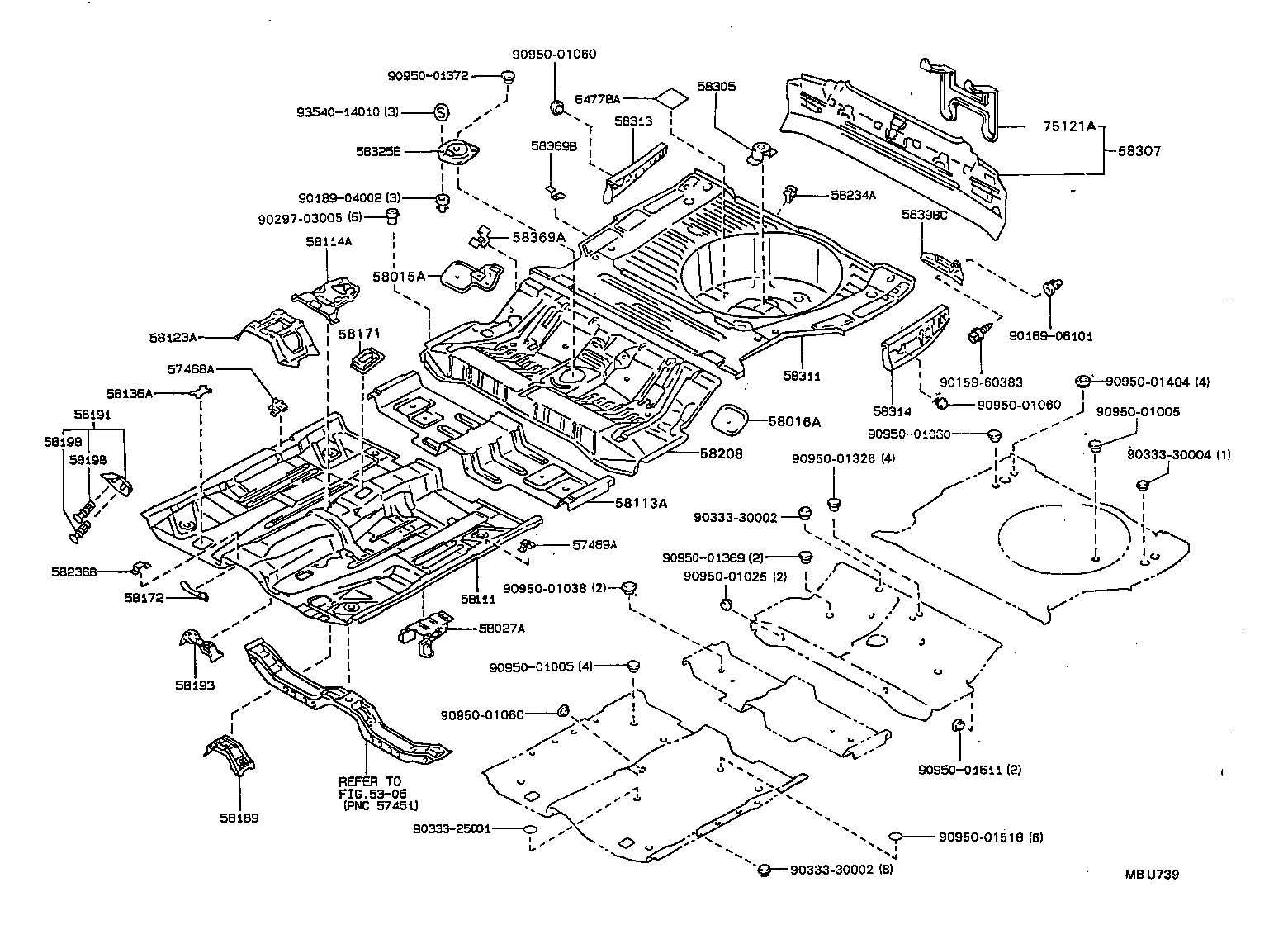

Click highlighted areas on diagram

(9006- )ｽ-ﾊﾟ- ﾙ-ﾐ-

diagram 5305 57468A 57469A 58015A 58016A 58027A 58111 58113A 58114A 58123A 58136A 58171 58172 58189 58191 58193 58198 58198 58208 58234A 58236B 58305 58307 58311 58313 58314 58325E 58369A 58369B 58398C 64778A 75121A 9015960383 9018904002 9018906101 9029703005 9033325001 9033330002 9033330002 9033330004 9095001005 9095001005 9095001025 9095001038 9095001060 9095001060 9095001060 9095001060 9095001326 9095001369 9095001372 9095001404 9095001518 9095001611 9354014010
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20030

AT170,CT17#,ET176,ST17#

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20030

AT170,CT17#,ET176,ST17#

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-32030

AT170,CT170,ST17#..SED

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-32020

AT170,CT170,ST17#

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20070

AT170,CT17#,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z

 1
58111 - PAN, FRONT FLOOR
58111-20120

AT170,CT17#,ET176,ST17#

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20040

AT170,CT17#,ET176,ST17#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20040

AT170,CT17#,ET176,ST17#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-20010

AT170,CT17#,ET176,ST17#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20080

AT170,CT17#,ET176,ST17#

 1
58107-20040

AT170,CT17#,ET176,ST17#

 1
58107-20040

AT170,CT17#,ET176,ST17#

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-20040

AT170,CT17#,ET176,ST17#

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-20020

AT170,CT17#,ET176,ST17#

 1
58191 - FOOTREST, FRONT FLOOR
58191-20040

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20090

AT170,CT17#,ET176,ST17#

 1
58198 - CLIP, FOOTREST
58198-20020

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=97.1

 1
58198-20030

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=89.1

 1
58198 - CLIP, FOOTREST
58198-20020

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=97.1

 1
58198-20030

ET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

L=89.1

 1
58208 - PAN, CENTER FLOOR
58211-32050

AT170,CT170,ST17#

 1
58211-32051

AT170,CT170,ST17#..SED

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32020

AT170,CT170,ST17#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT17#,CT170,ST17#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20633

AT170,CT170,ST17#..SED

 1
58307-20632

AT170,CT170,ST17#..SED

 1
58307-20631

AT170,CT170,ST17#..SED

 1
58307-20850

AT170,CT170,ST17#..SED

 1
58307-20630

AT170,CT170,ST17#..SED

 1
58311 - PAN, REAR FLOOR
58311-32090

AT170,CT170,ST17#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-20210

AT170,CT170,ST17#..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-20190

AT170,CT170,ST17#..SED

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32020

AT170,CT170,ST17#

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,CT170,ST17#

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT170,CT170,ST17#

 2
58398C - COVER, BODY LOWER BACK, LH
58398-20050

AT170,CT170,ST17#

 1
64778A - PROTECTOR, SPARE WHEEL
64778-14020

AT17#,ST17#;CT170..EXS,GX

 3
64778-14020

AT17#,ST17#

 3
75121A - BRACKET, REAR LICENSE PLATE
75121-20150

AT17#,CT170,ST17#

 1
Common parts
90159-60383
90189-04002
90189-06101
90297-03005
90333-25001
90333-30002
90333-30004
90950-01005
90950-01025
90950-01038
90950-01060
90950-01326
90950-01369
90950-01372
90950-01404
90950-01518
90950-01611
93540-14010
Linked diagrams
5305
