ST171-AEPGK (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SFE,4SFI

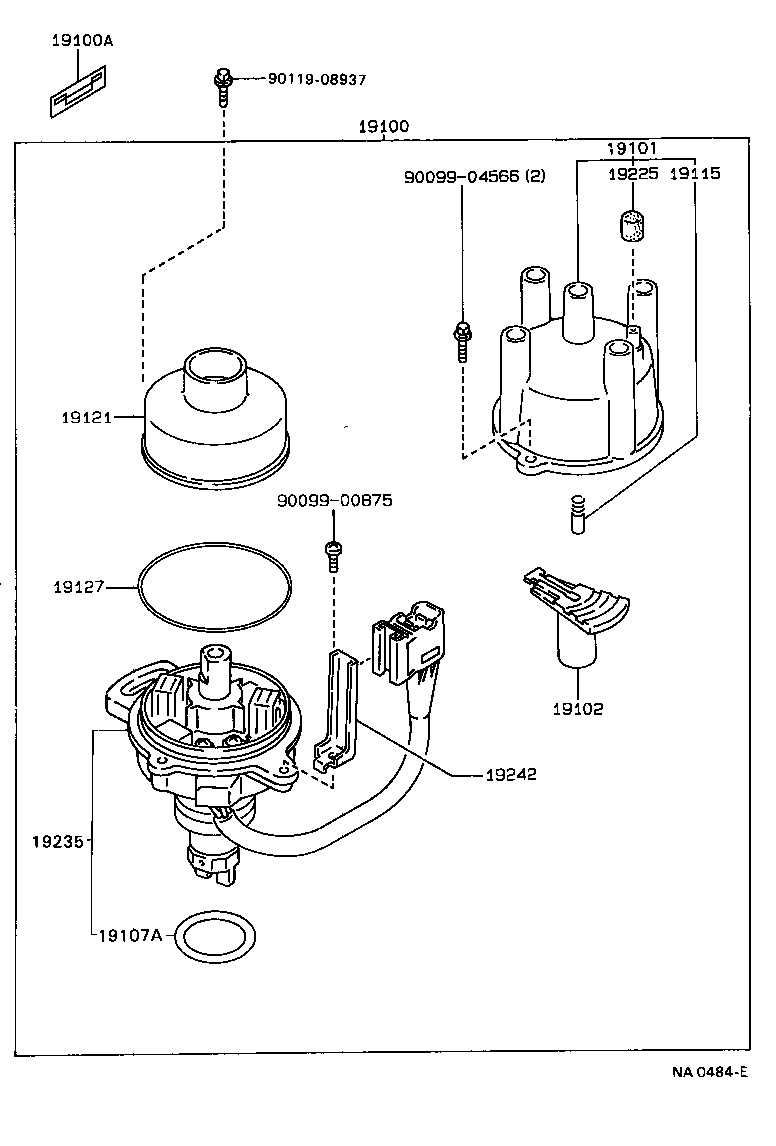

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19127 19225 19235 19242 9009900875 9009904566 9011908937
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-74020

3SFE,4SFI..ST17#

 1
19100A - TAPE, SEALING
90919-24004

3S#,4SFI..ST17#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11040

3SFE,4SFI..ST17#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11010

3SFE,4SFI..ST17#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

3SFE,4SF#..ST17#

 1
90099-14091

3SFE,4SFE..ST17#

 1
90099-14091

3SFE,4SFE..ST17#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3SFE..ST171

 1
19115-50010

3S#,4SFI..ST17#

 1
19121 - COVER, DUST PROOF
19121-16150

3SFE,4SFI..ST17#

 1
19127 - PACKING, DUST PROOF
19127-15021

3SFE..ST171

 1
19127-15021

3S#,4SFI..ST17#

 1
19225 - CAP, RUBBER
19225-62010

3SFE,4SFE..ST17#

 1
19225-16100

3SFE,4SFI..ST17#

 1
19225-62010

3SFE..ST171

 1
19235 - HOUSING, DISTRIBUTOR
19235-74120

3SFE,4SFI..ST17#

 1
19242 - CLAMP, CORD
19242-62010

3SFE,4SFI..ST17#

 1
Common parts
90099-00875
90099-04566
90119-08937
