ST171-AEMVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

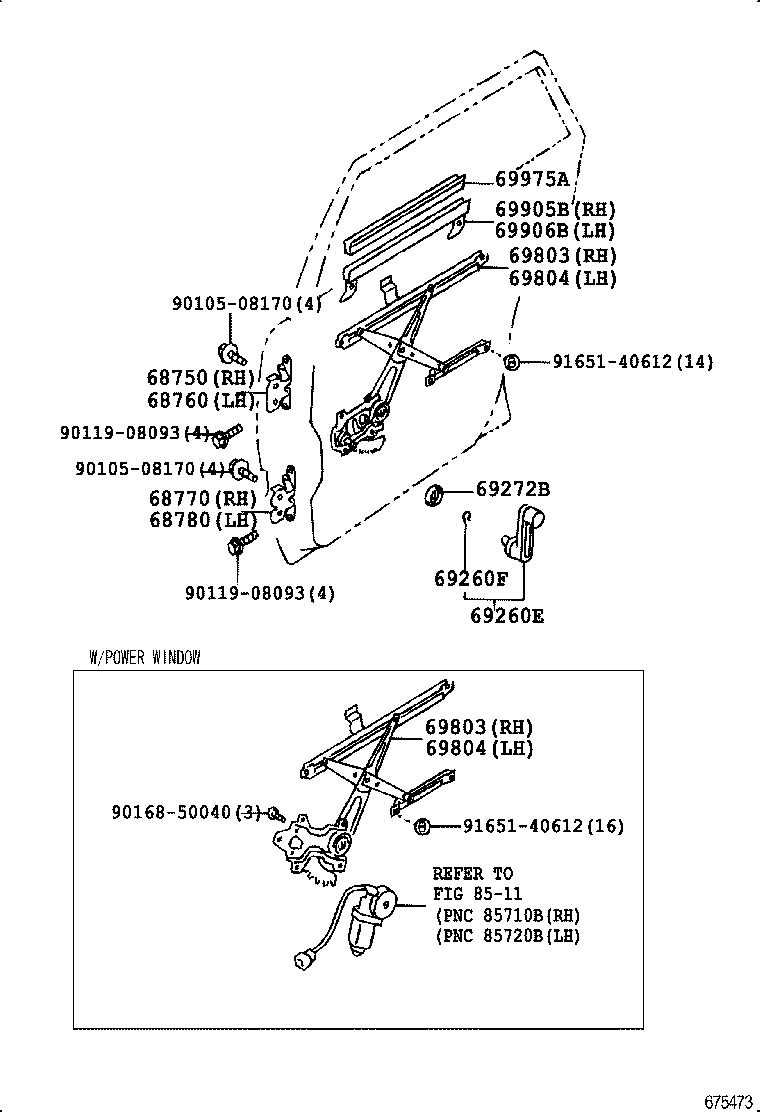

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 8511 9010508170 9010508170 9011908093 9011908093 9016850040 9165140612 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20060

AT17#,CT17#,ET176,ST17#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20060

AT17#,CT17#,ET176,ST17#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20050

AT17#,CT17#,ET176,ST17#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20060

AT17#,CT17#,ET176,ST17#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20170

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20170

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20170

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20170

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-20110

AT17#,CT170,ST17#

W=9.4

 1
69905-20110

AT17#,CT170,ST17#

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-20110

AT17#,CT170,ST17#

 1
69905-20110

AT17#,CT170,ST17#

W=9.4

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-20030

AT17#,CT170,ST17#

 2
Common parts
90105-08170
90119-08093
90168-50040
91651-40612
Linked diagrams
8511
