ST171-AEMVF (1987)
Toyota Corona
(8911- )ST17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B360 |
ST171 |
1 | ||
| 44610-2B280 |
ST171 ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..GT,GTR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B360 |
ST171 |
1 | ||
| 44610-2B280 |
ST171 ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..GT,GTR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST17# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST17# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST17# |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST17# |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT175,ST171 |
1 | ||
| 90404-51237 |
AT17#,ST17# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT175,ST171 |
1 | ||
| 90404-51237 |
AT17#,ST17# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST17# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST17# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..GT,GTR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171 ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44772-20230 |
ST170..CI;AT170,ET176,ST171 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..GT,GTR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171 ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44772-20230 |
ST170..CI;AT170,ET176,ST171 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20550 |
ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
1 | ||
| 44773-20560 |
ST171..GT,GTR |
1 | ||
| 44773-20670 |
ST171..GT,GTR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20550 |
ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
1 | ||
| 44773-20560 |
ST171..GT,GTR |
1 | ||
| 44773-20670 |
ST171..GT,GTR |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-03038 | ||||

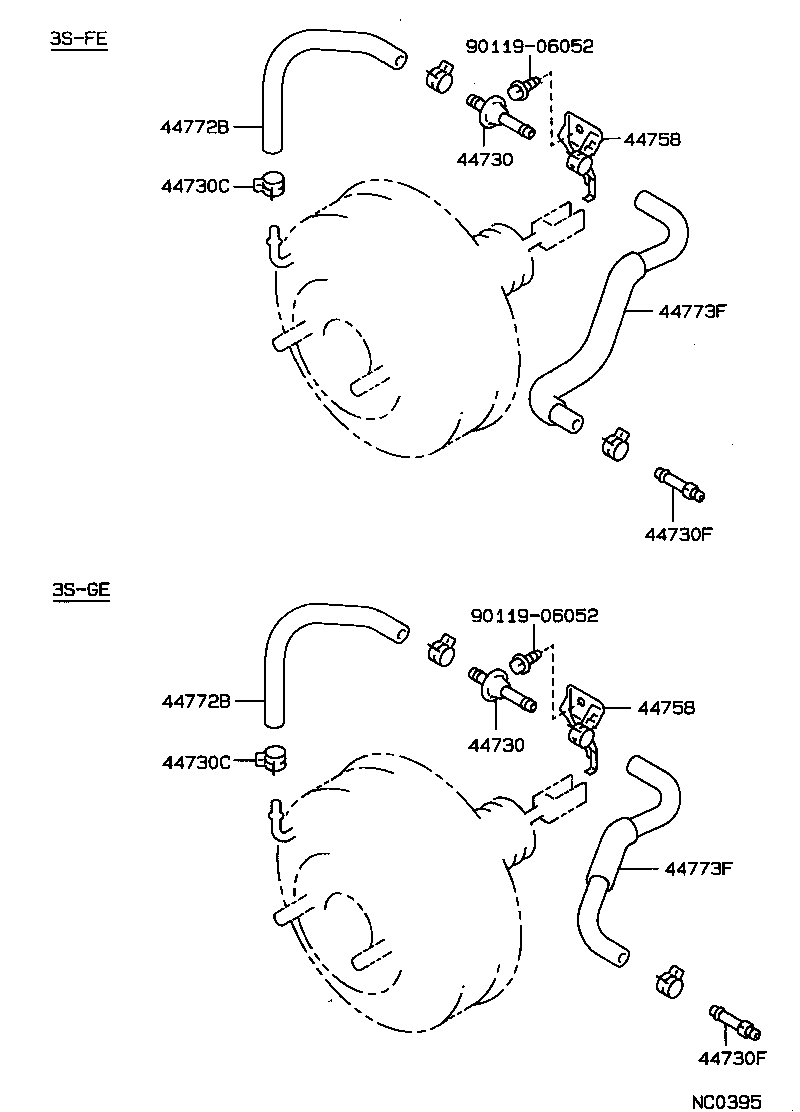

ILLUST NO. 2 OF 2(8712-8911)ST171
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST17# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT17#,ET176,ST17# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST17# |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT17#,ST17# |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT175,ST171 |
1 | ||
| 90404-51237 |
AT17#,ST17# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT175,ST171 |
1 | ||
| 90404-51237 |
AT17#,ST17# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST17# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT17#,ET176,ST17# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..GT,GTR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171 ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44772-20230 |
ST170..CI;AT170,ET176,ST171 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..GT,GTR ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171 ｱﾘ(*66) |
1 | ||
| 44772-20250 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44772-20230 |
ST170..CI;AT170,ET176,ST171 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20550 |
ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
1 | ||
| 44773-20560 |
ST171..GT,GTR |
1 | ||
| 44773-20670 |
ST171..GT,GTR |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20550 |
ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
1 | ||
| 44773-20560 |
ST171..GT,GTR |
1 | ||
| 44773-20670 |
ST171..GT,GTR |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||

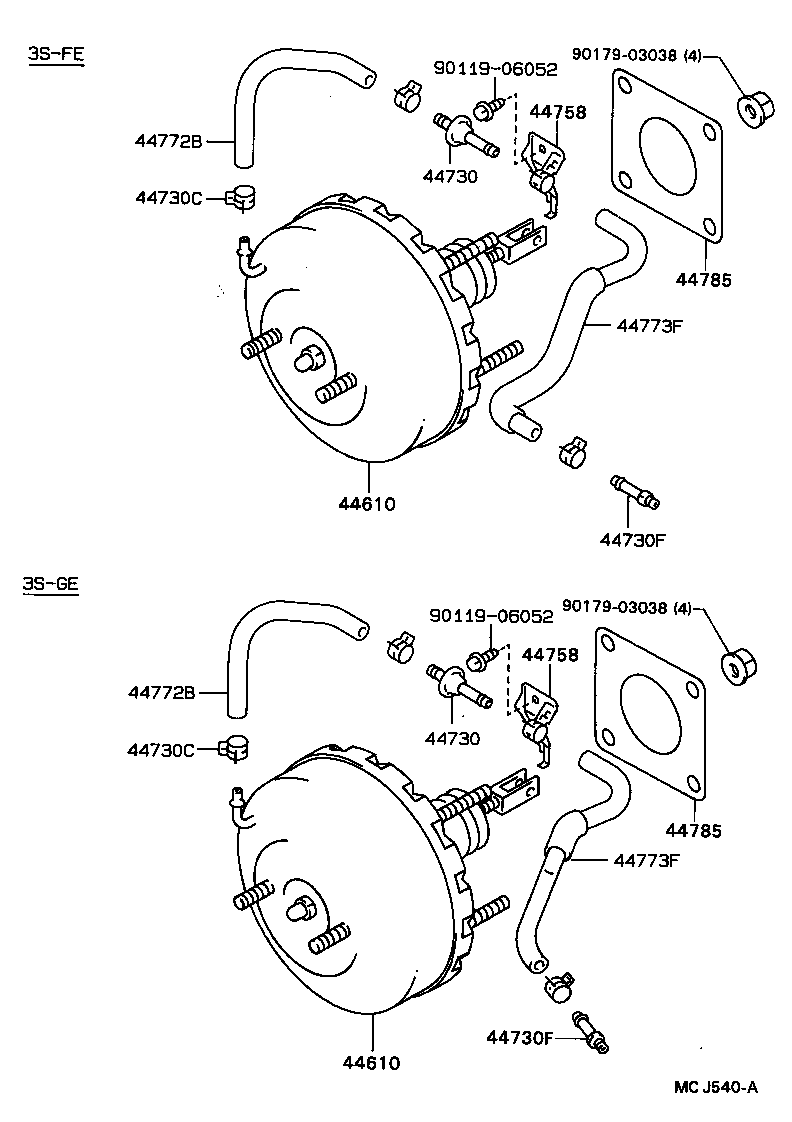

ILLUST NO. 1 OF 2(8712-8911) ; (8808-8911)AT175
ｱﾘ(ESC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20820 |
ST171 JKC |
1 | ||
| 04443-20700 |
ST171 AISIN |
1 | ||
| 04443-20780 |
ST171 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44606-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B360 |
ST171 |
1 | ||
| 44610-2B280 |
ST171 ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..GT,GTR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44621-14030 |
ST171 ｱﾘ(*66) |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
ST171 |
1 | ||
| 44626-60010 |
AT175;AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST171 ｱﾘ(*66) |
1 | ||
| 44628-28120 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44635-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-2B210 |
ST171 |
1 | ||
| 44642-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
ST171 |
1 | ||
| 44643-20800 |
AT175;AT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-30560 |
ST171 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90179-08083 | ||||

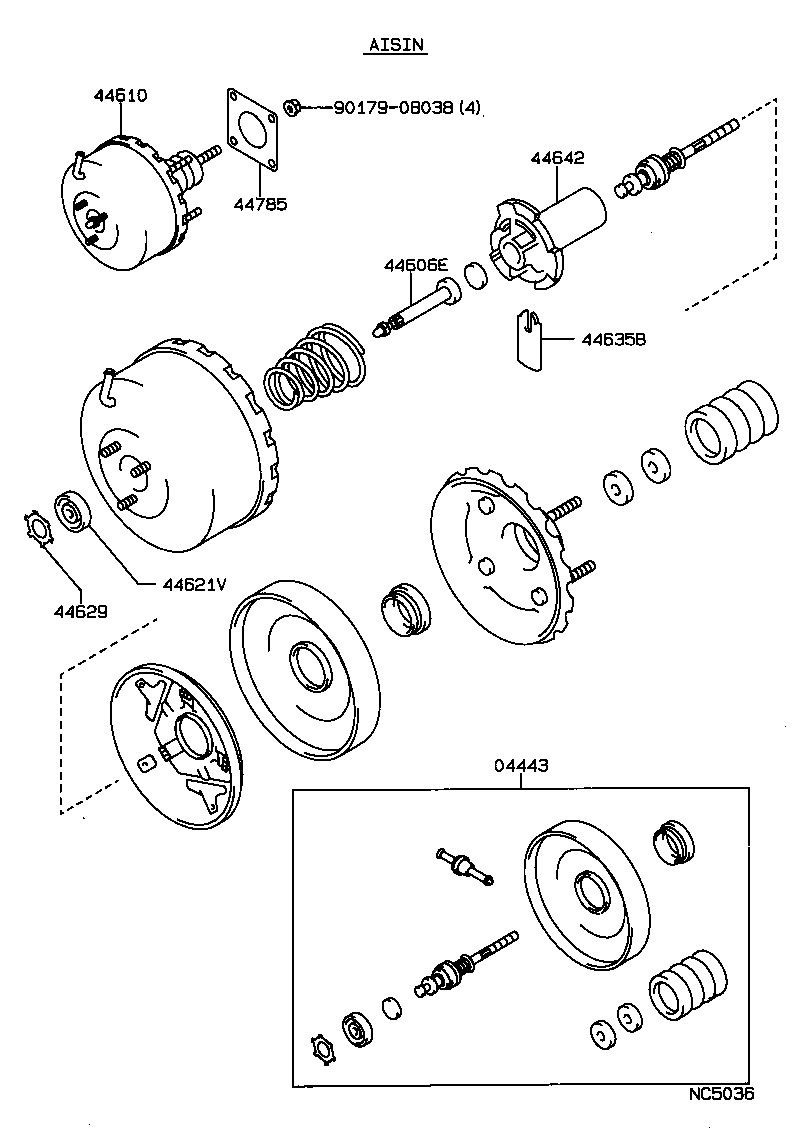

ILLUST NO. 1 OF 2(8712-8911)AT170,CT17#,ET176,ST17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20820 |
ST171 JKC |
1 | ||
| 04443-20700 |
ST171 AISIN |
1 | ||
| 04443-20780 |
ST171 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44606-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B360 |
ST171 |
1 | ||
| 44610-2B280 |
ST171 ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..GT,GTR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44621-14030 |
ST171 ｱﾘ(*66) |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST171 ｱﾘ(*66) |
1 | ||
| 44628-28120 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-12630 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44635-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-2B210 |
ST171 |
1 | ||
| 44642-20800 |
ST171 ｱﾘ(*66) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8712-8911)AT170,CT17#,ET176,ST17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20820 |
ST171 JKC |
1 | ||
| 04443-20700 |
ST171 AISIN |
1 | ||
| 04443-20780 |
ST171 |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B360 |
ST171 |
1 | ||
| 44610-2B280 |
ST171 ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..GT,GTR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44610-2B280 |
ST171..EXG,G,SXR ｱﾘ(*66 & 14ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
ST171 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-2B360 |
ST171 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
