ST171-AEMVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SGE

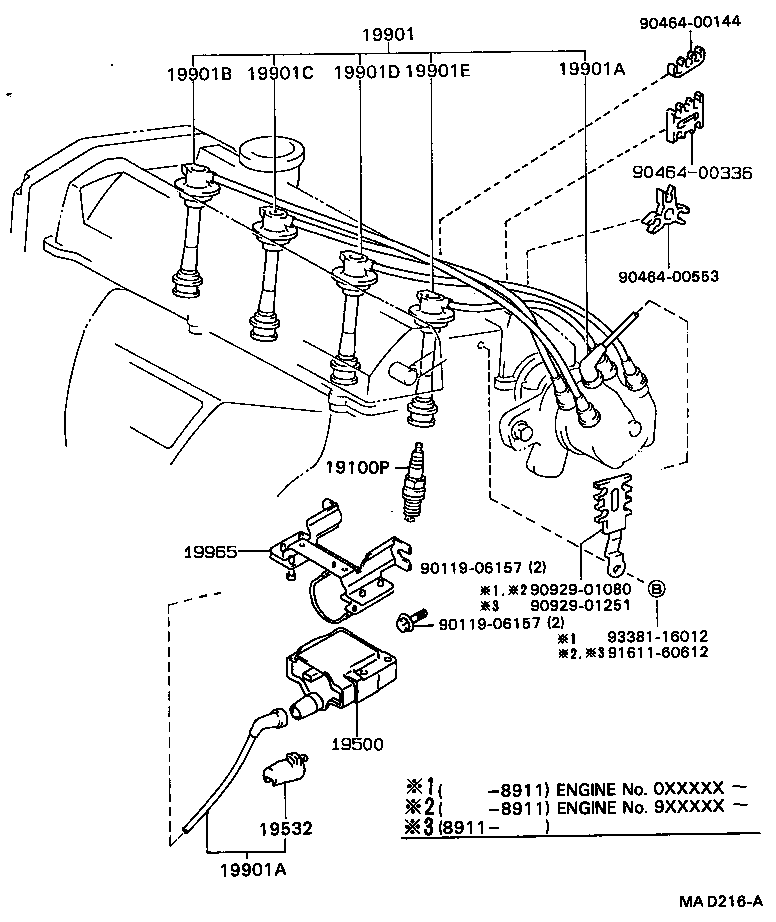

Click highlighted areas on diagram

diagram 19100P 19500 19532 19901 19901A 19901A 19901B 19901C 19901D 19901E 19965 9011906157 9011906157 9046400144 9046400336 9046400553 9092901080 9092901251 9161160612 9338116012
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01122

3SGE..ST171

BCPR5EP−11

 4
90919-01181

3SGE..ST171

BKR6EP−8

 4
90919-01121

3SGE..ST171

PQ16R

 4
90919-01180

3SGE..ST171

PK20R8

 4
19500 - COIL ASSY, IGNITION
90919-02175

3S#,4SFI..ST17#

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010

3SGE..ST171

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21493

3SGE..ST171

 1
90919-21407

3SGE..ST171

 1
19901A - CORD, COIL RESISTIVE
90919-13286

3SGE..ST171

 1
90919-13343

3SGE..ST171

 1
19590-74090

3SGE..ST171

 1
19901A - CORD, COIL RESISTIVE
90919-13286

3SGE..ST171

 1
90919-13343

3SGE..ST171

 1
19590-74090

3SGE..ST171

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12546

3SGE..ST171

 1
90919-12994

3SGE..ST171

 1
90919-15046

3SGE..ST171

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12547

3SGE..ST171

 1
90919-12995

3SGE..ST171

 1
90919-15047

3SGE..ST171

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12548

3SGE..ST171

 1
90919-15048

3SGE..ST171

 1
90919-12996

3SGE..ST171

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12549

3SGE..ST171

 1
90919-12997

3SGE..ST171

 1
90919-15049

3SGE..ST171

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03109

3S#,4SF#..ST17#

 1
Common parts
90119-06157
90464-00144
90464-00336
90464-00553
90929-01080
90929-01251
91611-60612
93381-16012
