ST171-AEMVF (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

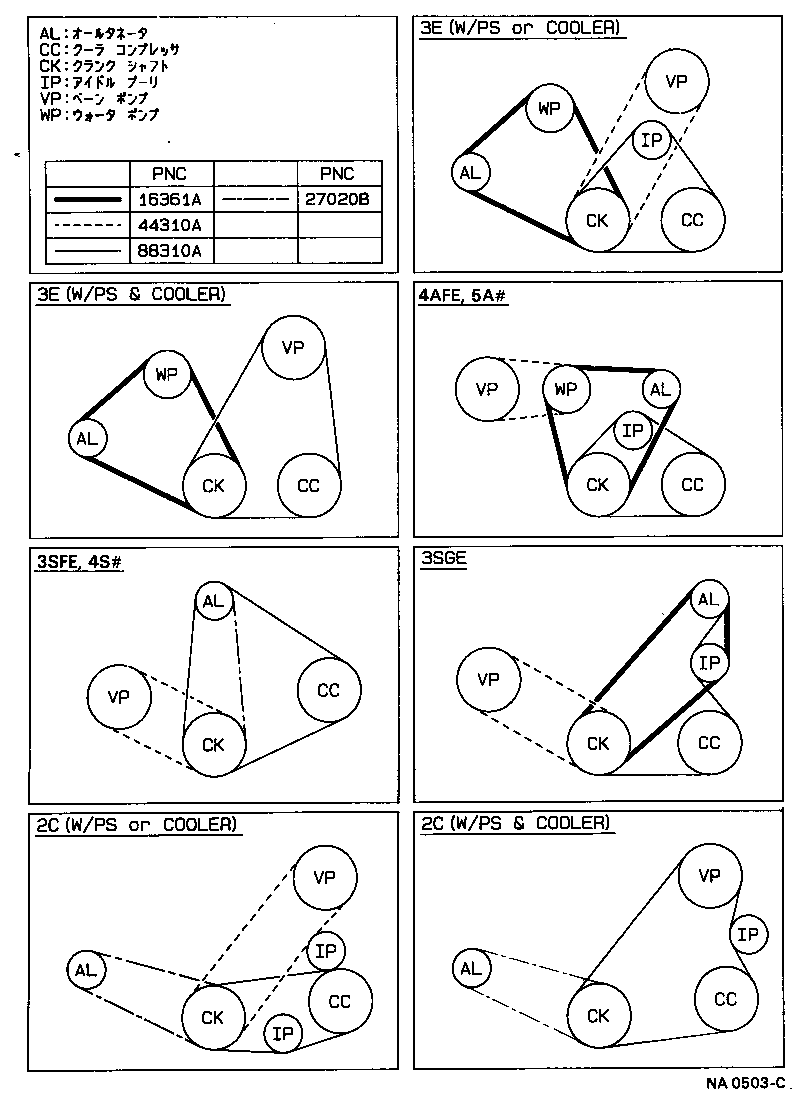

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02293

3SGE..ST171

 1
90916-02216

3SGE..ST171

 1
99365-01000

3SGE..ST171

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

ST17#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51130

ST17#..EXG,EXS,G,MX,SXR,X,Z

 1
99365-51130

ST171..5F..(EXG,G,SXR)

 1
90916-20116

ST171..GT,GTR

ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
90916-02116

ST171..GT,GTR

 1
90916-02270

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

MITSUBOSHI

 1
90916-02270

ST17#..EXG,EXS,G,MX,SXR,X,Z

MITSUBOSHI

 1
99365-51120

ST171..5F..(EXG,G,SXR)

 1
90916-02271

ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

BANDO

 1
90916-02270

ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

MITSUBOSHI

 1
90916-02344

ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

長さ=1115,BANDO

 1
90916-02116

ST171..GT,GTR

 1
90916-02345

ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

長さ=1115,MITSUBOHSI

 1
99365-21110

ST171..GT,GTR

長さ=1110

 1
