ST171-AEMGK (1987)

Toyota Corona

Production Dec 1987 - Feb 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT17#,ST17#..5F

Click highlighted areas on diagram

S50,S51,S53

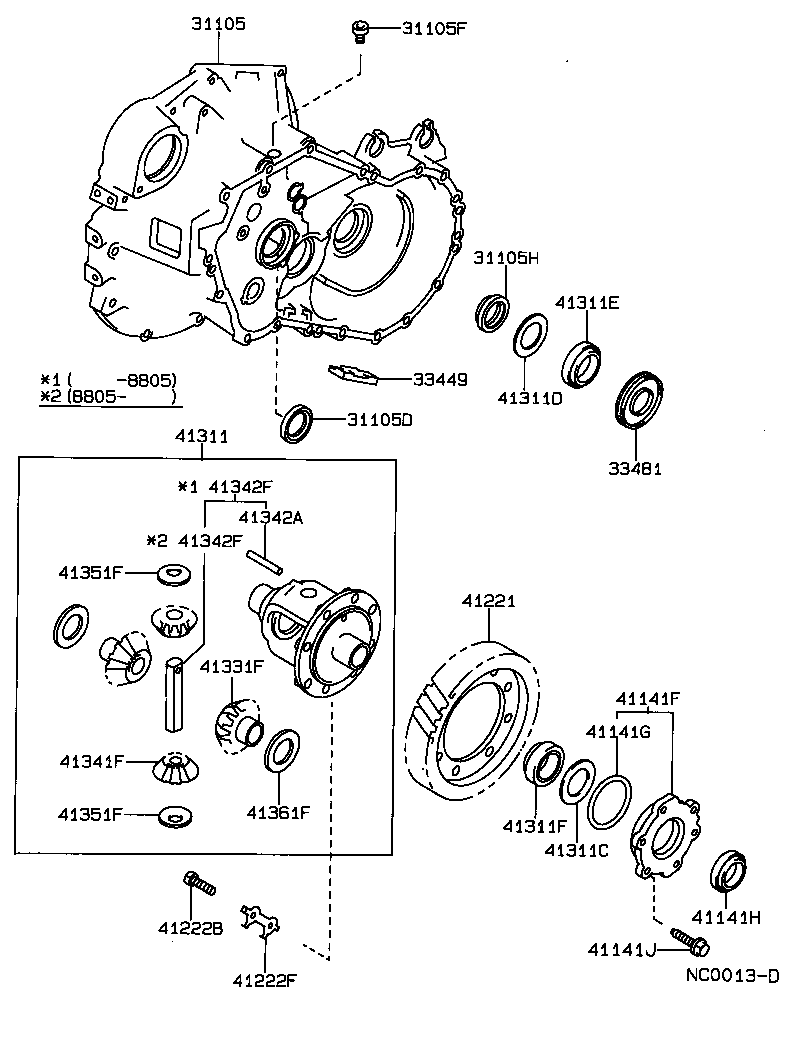

diagram 31105 31105D 31105F 31105H 33449 33481 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41342F 41351F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32020

ST17#..5F

 1
31105-32020

ST17#..5F

 1
31105-32060

ST171..5F

 1
31105-32060

ST17#..5F

 1
31105-32061

ST17#..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30002

CT17#,ST17#..5F

 1
90311-30006

AT175,CT17#,ST17#..5F

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

CT17#,ST17#..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35014

CT17#,ST17#..5F

 1
33449 - MAGNET, TRANSMISSION
33449-32010

CT17#,ST17#..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32010

CT17#,ST17#..5F

歯数=25,ﾏｰｸ無し

 1
33481-32010

CT17#,ST17#..5F

歯数=25,ﾏｰｸ無し

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

CT17#,ST17#..5F

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

CT17#,ST17#..5F

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35014

CT17#,ST17#..5F

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

CT17#,ST17#..5F

*8−1.25PX26.5−23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32030

ST170;CT17#,ST171..5F..(DX,EXG,EXS,G,GX,MX,SXR)

 1
41221-32030

ST170;CT17#,ST171..5F..(DX,EXG,EXS,G,GX,SELS,SXR)

 1
41221-32030

CT17#,ST17#..5F..(DX,EXG,EXS,G,GX,SELS,SXR,X,Z)

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

ST17#;CT17#..5F

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

CT17#,ST17#

 4
41222-32010

CT17#,ST17#

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32010

CT17#,ST17#..5F

 1
41301-32010

CT17#,ST17#..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45003

CT17#,ST17#..5F

厚さ=2.00,ﾏｰｸ 03

 1
90564-45004

CT17#,ST17#..5F

厚さ=2.05,ﾏｰｸ 04

 1
90564-45009

CT17#,ST17#..5F

厚さ=2.30,ﾏｰｸ 09

 1
90564-45010

CT17#,ST17#..5F

厚さ=2.35,ﾏｰｸ 10

 1
90564-45001

CT17#,ST17#..5F

厚さ=1.90,ﾏｰｸ 01

 1
90564-45011

ST17#;CT17#..5F

厚さ=2.40,ﾏｰｸ 11

 1
90564-45005

CT17#,ST17#..5F

厚さ=2.10,ﾏｰｸ 05

 1
90564-45006

CT17#,ST17#..5F

厚さ=2.15,ﾏｰｸ 06

 1
90564-45008

CT17#,ST17#..5F

厚さ=2.25,ﾏｰｸ 08

 1
90564-45007

CT17#,ST17#..5F

厚さ=2.20,ﾏｰｸ 07

 1
90564-45016

CT17#,ST17#..5F

厚さ=2.65,ﾏｰｸ 16

 1
90564-45017

CT17#,ST17#..5F

厚さ=2.70,ﾏｰｸ 17

 1
90564-45002

CT17#,ST17#..5F

厚さ=1.95,ﾏｰｸ 02

 1
90564-45012

CT17#,ST17#..5F

厚さ=2.45,ﾏｰｸ 12

 1
90564-45019

CT17#,ST17#..5F

厚さ=2.80,ﾏｰｸ 19

 1
90564-45014

CT17#,ST17#..5F

厚さ=2.55,ﾏｰｸ 14

 1
90564-45018

CT17#,ST17#..5F

厚さ=2.75,ﾏｰｸ 18

 1
90564-45013

CT17#,ST17#..5F

厚さ=2.50,ﾏｰｸ 13

 1
90564-45015

CT17#,ST17#..5F

厚さ=2.60,ﾏｰｸ 15

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

CT17#,ST17#..5F

厚さ=2.40,ﾏｰｸ 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

ST17#;CT17#..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40023

CT17#,ST17#..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CT17#,ST17#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

CT17#,ST17#

 2
41341-30011

CT17#,ST17#..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT170,CT17#,ET176,ST17#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-39025

CT17#,ST17#

 1
41342-20050

CT17#,ST17#

 1
41342-32010

CT17#,ST17#

 1
41342-20050

CT17#,ST17#..5F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-39025

CT17#,ST17#

 1
41342-20050

CT17#,ST17#

 1
41342-32010

CT17#,ST17#

 1
41342-20050

CT17#,ST17#..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CT17#,ST17#

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CT17#,ST17#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22020

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=1.00,ﾏｰｸ 02

 2
41361-22150

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=1.05,ﾏｰｸ 15

 2
41361-22140

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=0.95,ﾏｰｸ 14

 2
41361-22030

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=1.20,ﾏｰｸ 04

 2
41361-22160

ST17#;AT170,CT17#,ET176..3FC,4F,5F

厚さ=1.15,ﾏｰｸ 16

 2
