ST170-ALPMM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB ; (8808- )SED ; (8812- )ST170..EXS

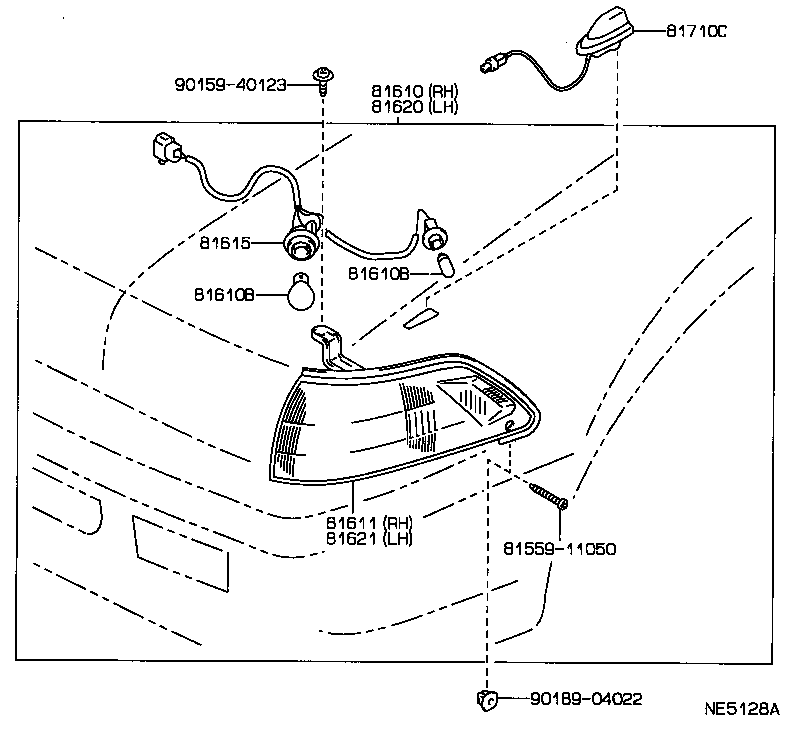

Click highlighted areas on diagram

(8812- )EXｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ

diagram 8155911050 81610 81610B 81610B 81611 81615 81620 81621 81710C 9015940123 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20370

ST17#..LB

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

ST17#..LB

12V 35/5W

 2
99132-12050

ST17#..LB

12V 5W

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

ST17#..LB

12V 35/5W

 2
99132-12050

ST17#..LB

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20370

ST17#..LB

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20370

ST17#..LB

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-20370

ST17#..LB

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20370

ST17#..LB

 1
81710C - MARKER ASSY, FENDER
81710-20040

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

右側

 1
81720-20030

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

左側

 1
Common parts
81559-11050
90159-40123
90189-04022
