ST170-ALPEM (1987)
Toyota Corona
Production
Dec 1987
-
Nov 1989
Engine
4SFI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )

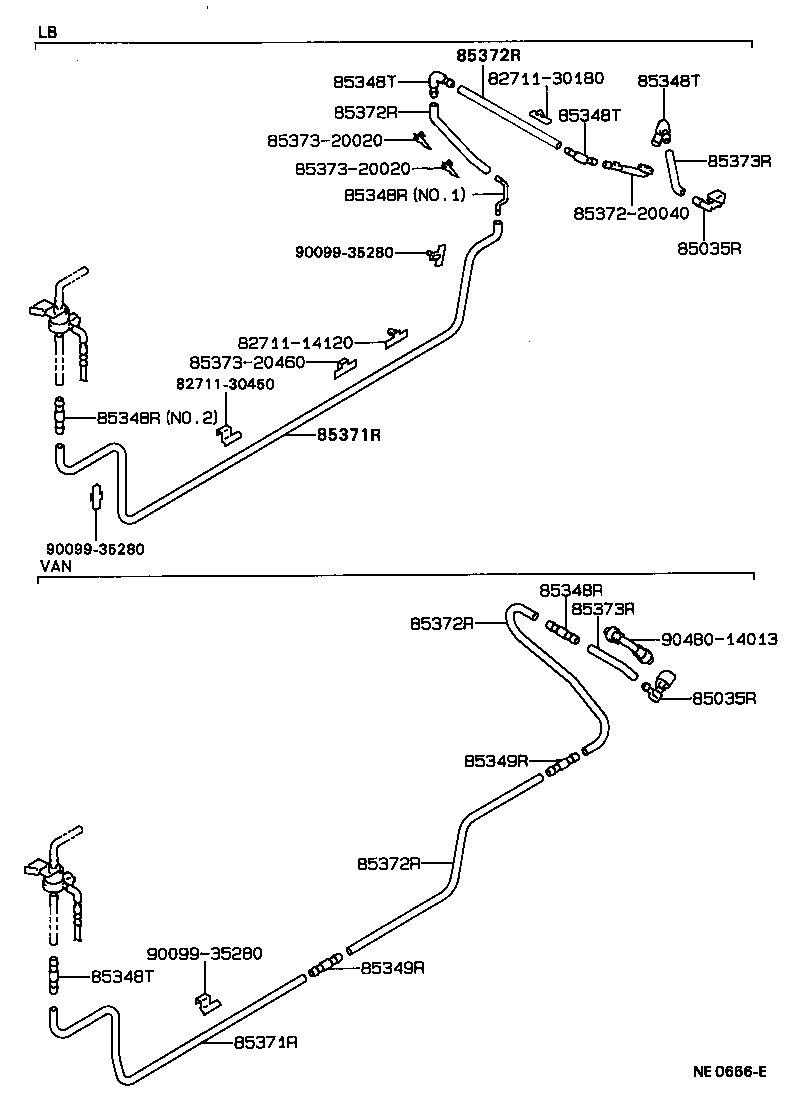

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-20250 |
ST17#..LB |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-20250 |
ST17#..LB |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-20460 |
ST17#..LB NO.1 |
1 | ||
| 85349-89122 |
ST17#..LB NO.2 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-20460 |
ST17#..LB NO.1 |
1 | ||
| 85349-89122 |
ST17#..LB NO.2 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-20460 |
ST17#..LB NO.1 |
1 | ||
| 85349-89122 |
ST17#..LB NO.2 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20200 |
ST17#..LB |
3 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20200 |
ST17#..LB |
3 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20200 |
ST17#..LB |
3 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-20200 |
ST17#..LB |
3 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33490 |
ST17#..LB 長さ=3050 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33490 |
ST17#..LB 長さ=3050 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
ST17#..LB |
1 | ||
| 90446-06013 |
ST17#..LB 長さ=450 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
ST17#..LB |
1 | ||
| 90446-06013 |
ST17#..LB 長さ=450 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
ST17#..LB |
1 | ||
| 90446-06013 |
ST17#..LB 長さ=450 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
ST17#..LB |
1 | ||
| 90446-06013 |
ST17#..LB 長さ=450 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
ST17#..LB 長さ=1000 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
ST17#..LB 長さ=1000 |
1 | ||
| Common parts | ||||
| 82711-14120 | ||||
| 82711-30180 | ||||
| 82711-30450 | ||||
| 85372-20040 | ||||
| 85373-20020 | ||||
| 85373-20460 | ||||
| 90099-35280 | ||||
| 90480-14013 | ||||
