ST170-ALPEM (1987)
Toyota Corona

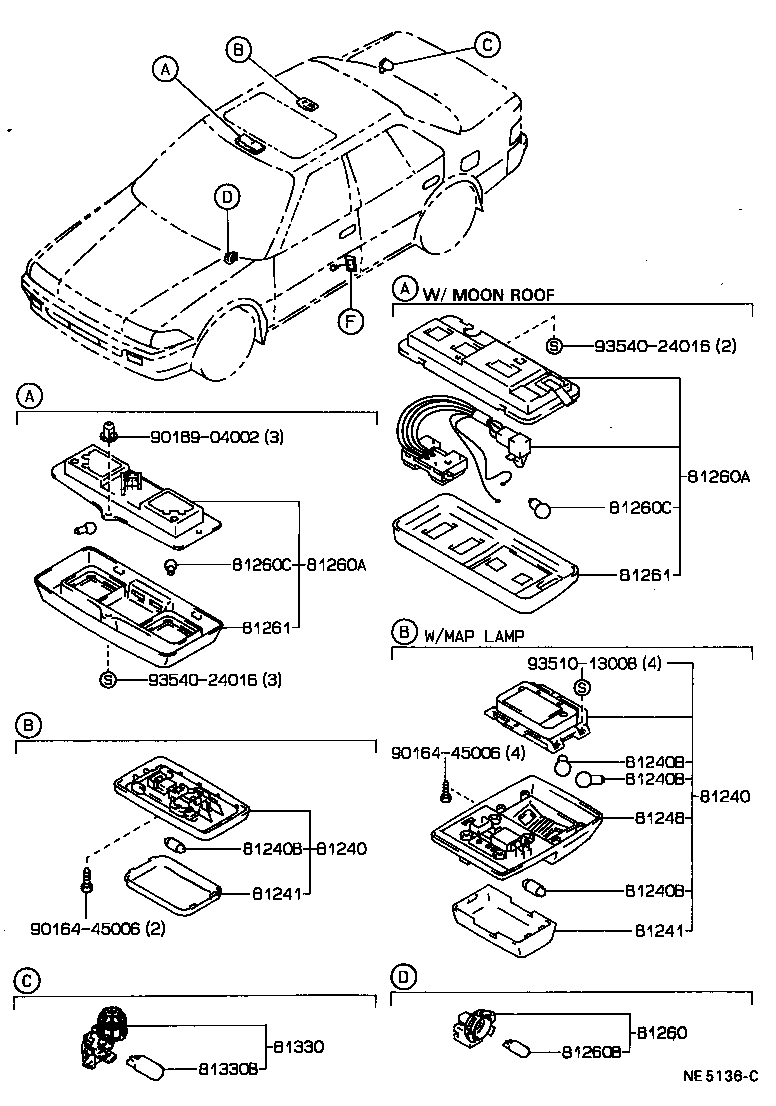

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2009004 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81240-2204006 |
CT170,ST17#..EXG,EXS,G,X W/MAP LAMP,SABLE,SABLE,TRIM4# |
1 | ||
| 81240-2204024 |
CT170,ST17#..EXG,EXS,G,X W/MAP LAMP,BLUE,BLUE,TRIM8# |
1 | ||
| 81240-2009006 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81240-2204013 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X W/MAP LAMP,GRAY,GRAY,TRIM1# |
1 | ||
| 81240-2009003 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2009004 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81240-2204006 |
CT170,ST17#..EXG,EXS,G,X W/MAP LAMP,SABLE,SABLE,TRIM4# |
1 | ||
| 81240-2204024 |
CT170,ST17#..EXG,EXS,G,X W/MAP LAMP,BLUE,BLUE,TRIM8# |
1 | ||
| 81240-2009006 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81240-2204013 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X W/MAP LAMP,GRAY,GRAY,TRIM1# |
1 | ||
| 81240-2009003 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST17# 12V 10W |
1 | ||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST17# 12V 10W |
1 | ||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST17# 12V 10W |
1 | ||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
AT17#,CT17#,ET176,ST17# 12V 10W |
1 | ||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-22040 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X |
1 | ||
| 81241-20090 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-22040 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X |
1 | ||
| 81241-20090 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 81248 - COVER, ROOM LAMP, NO.1 | ||||
| 81248-2204024 |
CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 81248-2204013 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X GRAY,TRIM1# |
1 | ||
| 81248-2204006 |
CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-32071 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2013003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X GRAY,TRIM1# |
1 | ||
| 81260-2013006 |
CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 81260-2013004 |
CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 81260-2015003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81260-2015006 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81260-2015004 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2013003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X GRAY,TRIM1# |
1 | ||
| 81260-2013006 |
CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 81260-2013004 |
CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 81260-2015003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81260-2015006 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81260-2015004 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 90981-12014 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR 12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X 12V 8W |
2 | ||
| 90981-12014 |
CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR 12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2015004 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81261-2013003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X GRAY,TRIM1# |
1 | ||
| 81261-2013004 |
CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 81261-2015003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81261-2013006 |
CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 81261-2015006 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2015004 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),BLUE,TRIM8# |
1 | ||
| 81261-2013003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X GRAY,TRIM1# |
1 | ||
| 81261-2013004 |
CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 81261-2015003 |
CT170,ST17#..EXG,EXS,G,GT,GTR,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1# |
1 | ||
| 81261-2013006 |
CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 81261-2015006 |
CT170,ST17#..EXG,EXS,G,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-45006 | ||||
| 90189-04002 | ||||
| 93510-13008 | ||||
| 93540-24016 | ||||

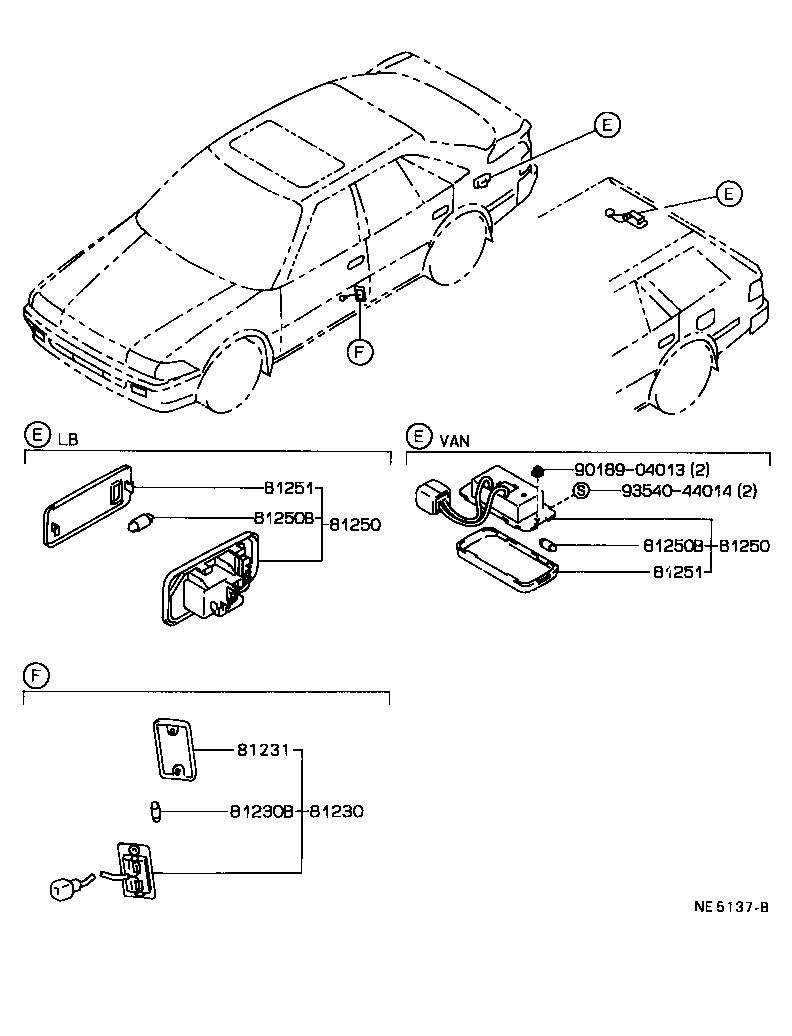

ILLUST NO. 2 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1203004 |
ST17#..G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 81250-1203006 |
ST17#..G,X,Z BROWN,TRIM4# |
1 | ||
| 81250-1203003 |
ST17#..LB SHADOW GRAY,TRIM1# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-1203004 |
ST17#..G,X,Z DARK BLUE,TRIM8# |
1 | ||
| 81250-1203006 |
ST17#..G,X,Z BROWN,TRIM4# |
1 | ||
| 81250-1203003 |
ST17#..LB SHADOW GRAY,TRIM1# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ST17#..LB 12V 5W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ST17#..LB 12V 5W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-12030 |
ST17#..LB |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-12030 |
ST17#..LB |
1 | ||
| Common parts | ||||
| 90189-04013 | ||||
| 93540-44014 | ||||
