ST170-ALPEM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST17#

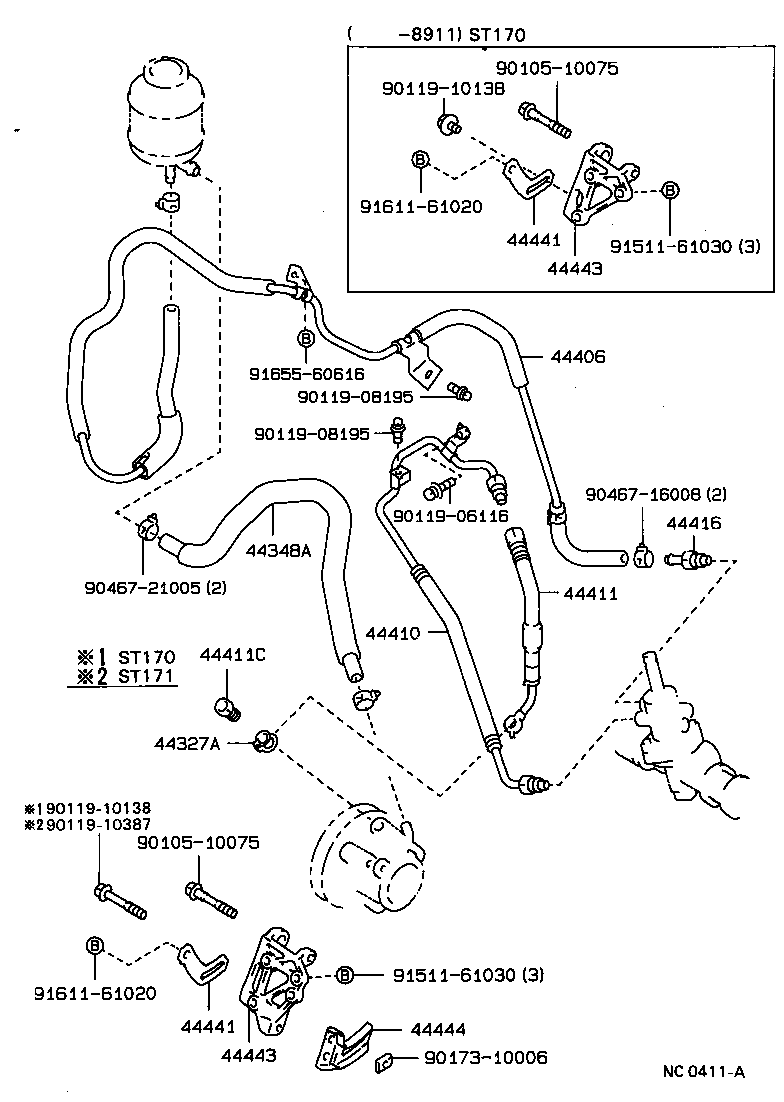

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44411 44411C 44416 44441 44441 44443 44443 44444 9010510075 9010510075 9011906116 9011908195 9011908195 9011910138 9011910138 9011910387 9017310006 9046716008 9046721005 9151161030 9151161030 9161161020 9161161020 9165560616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20230

ST170..EXS,X

ｱﾘ(*66)

 1
44348-20170

ST170..EXS,X

ｱﾘ(*66 & 13ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ)

 1
44348-20250

ST170..CI;ST171..GT,GTR

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20150

ST170..EFI;ST170..(EXS,X)..CI

ｱﾘ(*66 & 13ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ)

 1
44406-20140

ST17#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20430

ST17#

 1
44411 - HOSE, PRESSURE FEED
44411-20230

ST17#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

ST17#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20110

CT17#,ET176,ST17#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST17#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST17#

 1
44443 - BRACKET, PUMP
44443-20060

ST170

 1
44443 - BRACKET, PUMP
44443-20060

ST170

 1
Common parts
90105-10075
90119-06116
90119-08195
90119-10138
90119-10387
90173-10006
90467-16008
90467-21005
91511-61030
91611-61020
91655-60616
