ST170-ALPEM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

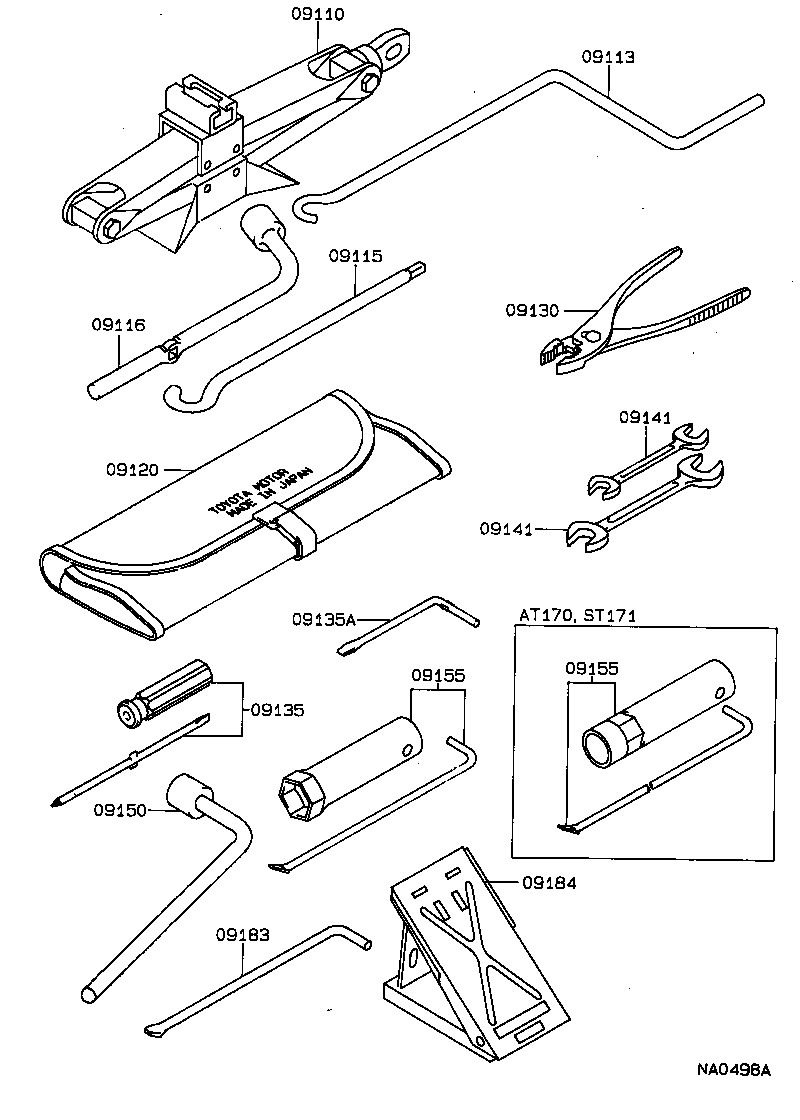

Click highlighted areas on diagram

diagram 09110 09113 09115 09116 09120 09130 09135 09135A 09141 09141 09150 09155 09155 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-12100

AT17#,CT170,ST17#

 1
09113 - HANDLE, JACK
09113-20030

AT17#,CT170,ST17#

 1
09120 - BAG, TOOL
09120-10030

AT17#,CT170,ST17#

 1
09130 - PLIERS
99913-11500

AT17#,CT17#,ET176,ST17#

 1
09135 - DRIVER, SCREW
99915-10700

AT17#,CT17#,ET176,ST17#

 1
09135A - BIT, SCREW DRIVER
09135-00012

CT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR

 1
09141 - SPANNER
99914-10810

AT17#,CT17#,ET176,ST17#

8 X 10

 1
99914-11214

AT17#,CT17#,ET176,ST17#

12 X 14

 1
09141 - SPANNER
99914-10810

AT17#,CT17#,ET176,ST17#

8 X 10

 1
99914-11214

AT17#,CT17#,ET176,ST17#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

AT17#,CT170,ST17#

 1
09183 - WRENCH, WHEEL CAP
09183-00010

AT17#,CT17#,ET176,ST17#

 1
09184 - STOPPER, WHEEL
09184-00010

AT17#,CT17#,ET176,ST17#

 1
