ST170-ALMMM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

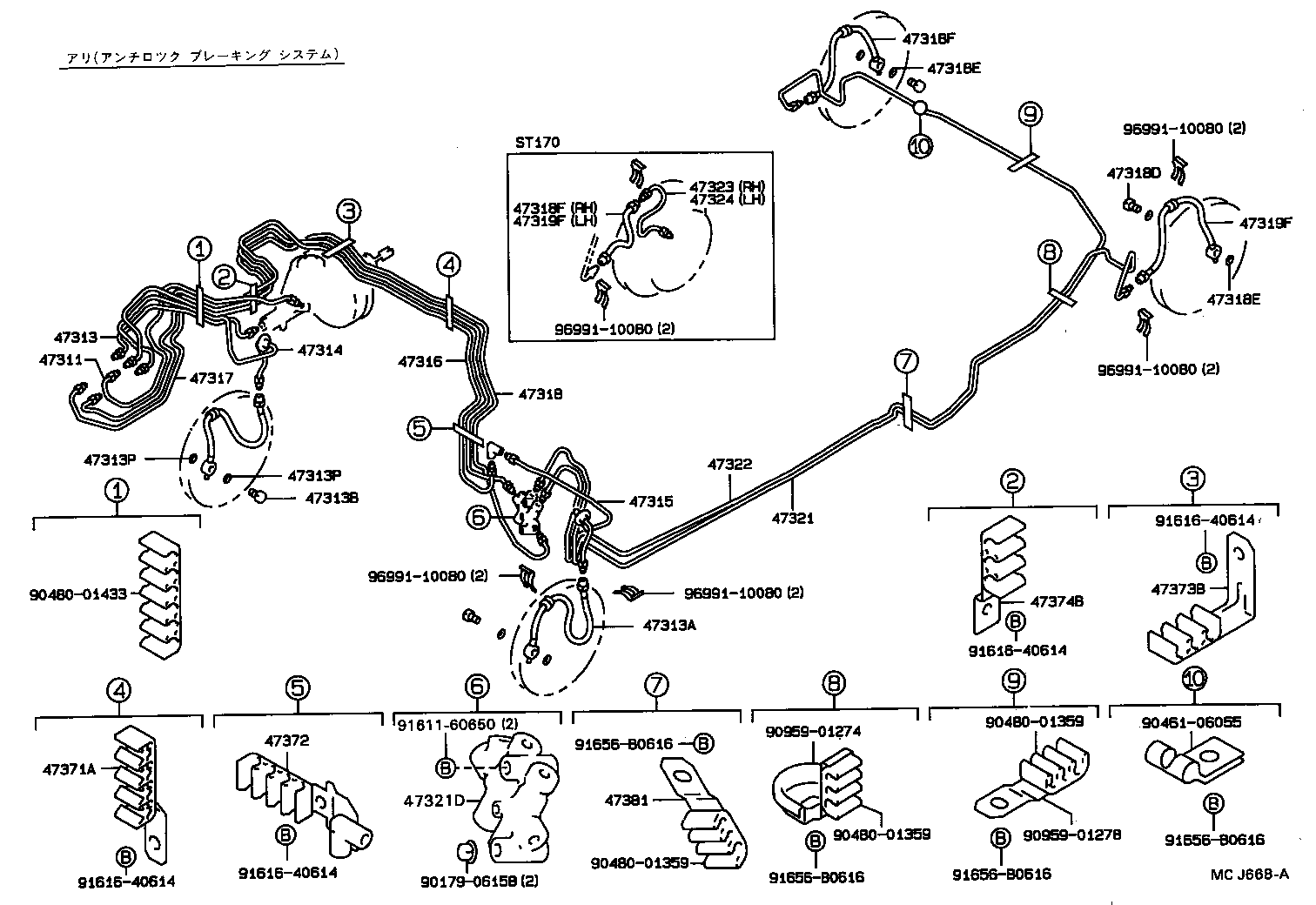

ILLUST NO. 1 OF 2(8712-8911)ST171 ; (8808-8911)ST170..EXS,X ; (8911- )ST17#

Click highlighted areas on diagram

diagram 47311 47313 47313A 47313B 47313P 47313P 47314 47315 47316 47317 47318 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47321D 47322 47323 47324 47371A 47372 47373B 47374B 47381 9017906158 9046106055 9048001359 9048001359 9048001359 9048001433 9095901274 9095901278 9161160650 9161640614 9161640614 9161640614 9161640614 91656B0616 91656B0616 91656B0616 91656B0616 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-20520

AT170,CT17#,ET176,ST170

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20340

AT170,CT17#,ET176,ST17#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02565

AT170,CT17#,ET176,ST17#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT17#,CT17#,ET176,ST17#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20300

AT170,CT17#,ET176,ST17#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20400

AT170,CT17#,ET176,ST17#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20190

AT170,CT170,ST17#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20310

AT170,CT170,ST17#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

AT170,CT170,ST170

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

AT170,CT170,ST170

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-20060

AT170,CT170,ST17#

 1
Common parts
90179-06158
90461-06055
90480-01359
90480-01433
90959-01274
90959-01278
91611-60650
91616-40614
91656-B0616
96991-10080

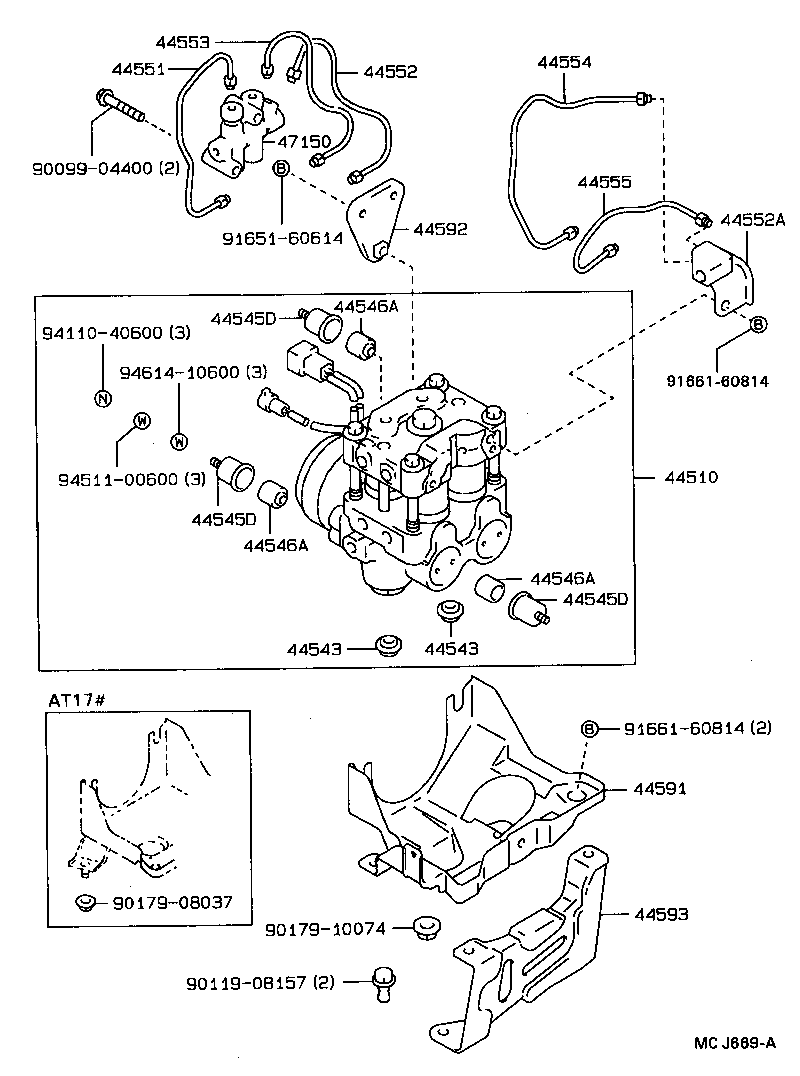

ILLUST NO. 2 OF 2(8712-8911)ST171 ; (8808-8911)AT170,ST170..EXS,X; (8911- )AT17#,ST17#..EXG,EXS,

Click highlighted areas on diagram

diagram 44510 44543 44543 44545D 44545D 44545D 44546A 44546A 44546A 44551 44552 44552A 44553 44554 44555 44591 44592 44593 47150 9009904400 9011908157 9017908037 9017910074 9165160614 9166160814 9166160814 9411040600 9451100600 9461410600
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16050

AT170,CT170,ST170

 1
Common parts
90099-04400
90119-08157
90179-08037
90179-10074
91651-60614
91661-60814
94110-40600
94511-00600
94614-10600

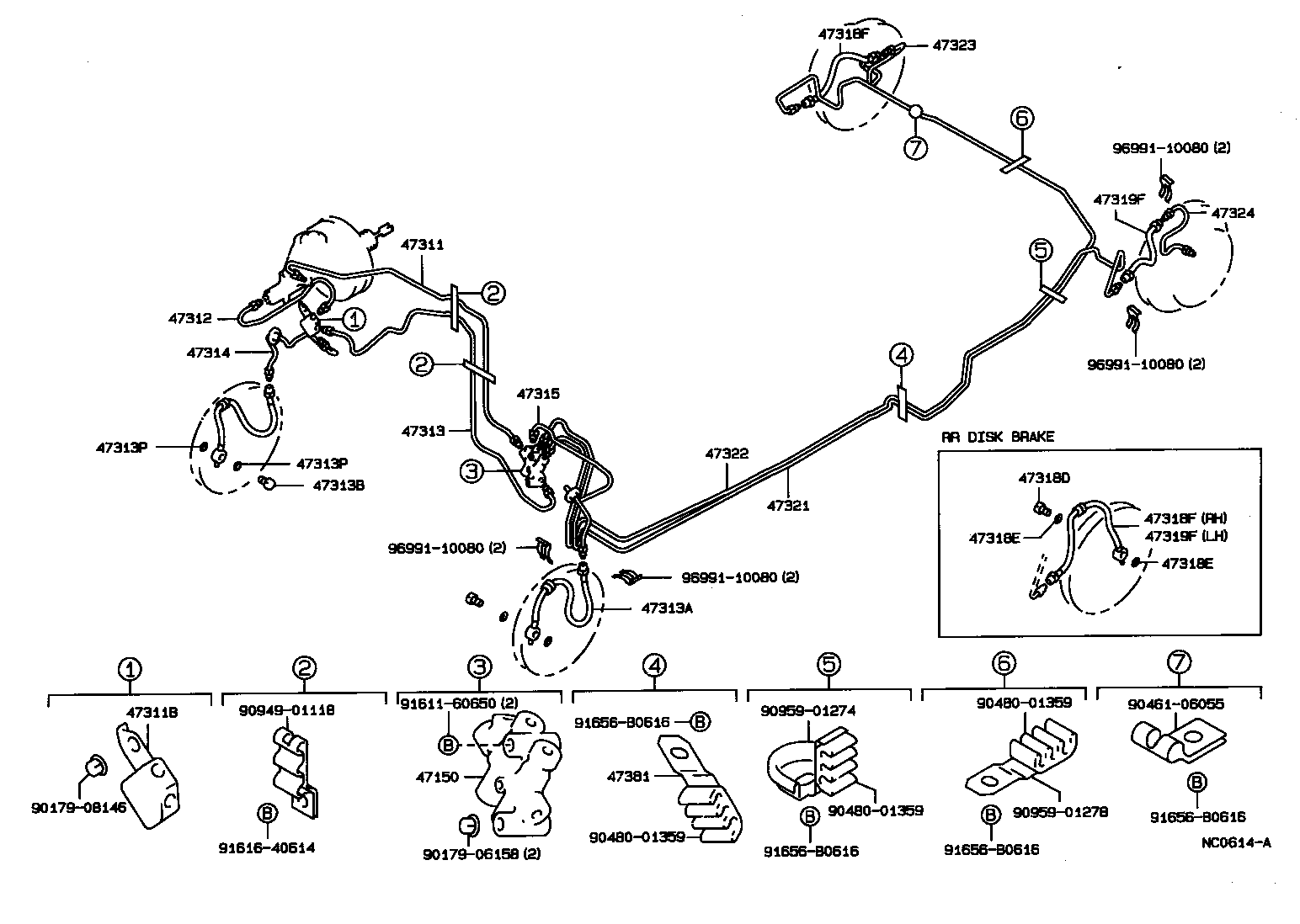

(8712- )AT170,CT170,ST17#

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 47381 9017906158 9017908146 9046106055 9048001359 9048001359 9048001359 9094901118 9095901274 9095901278 9161160650 9161640614 91656B0616 91656B0616 91656B0616 91656B0616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16050

AT170,CT170,ST170

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-20520

AT170,CT17#,ET176,ST170

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10193

ST170..CI;AT17#,CT17#,ET176,ST171

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20200

ST170..CI;AT170,CT17#,ET176

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20340

AT170,CT17#,ET176,ST17#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02565

AT170,CT17#,ET176,ST17#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AT17#,CT17#,ET176,ST17#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AT17#,CT17#,ET176,ST17#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20300

AT170,CT17#,ET176,ST17#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20400

AT170,CT17#,ET176,ST17#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02497

AT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20190

AT170,CT170,ST17#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20310

AT170,CT170,ST17#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-32040

AT170,CT170,ST170

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-32040

AT170,CT170,ST170

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-20060

AT170,CT170,ST17#

 1
Common parts
90179-06158
90179-08146
90461-06055
90480-01359
90949-01118
90959-01274
90959-01278
91611-60650
91616-40614
91656-B0616
96991-10080
