ST170-ALMMM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )5AF#,4SFI

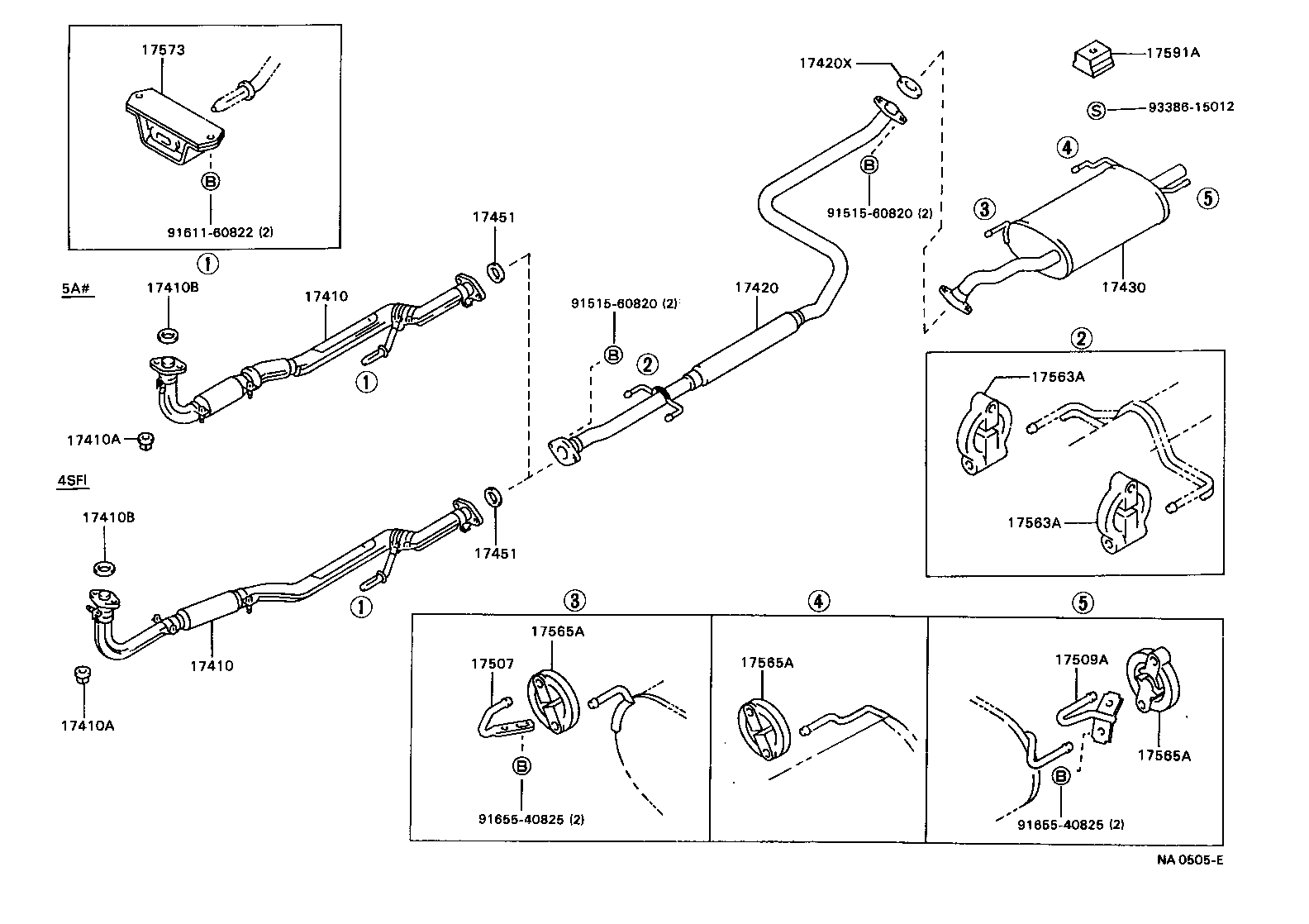

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17507 17509A 17563A 17563A 17565A 17565A 17565A 17573 17591A 9151560820 9151560820 9161160822 9165540825 9165540825 9338615012
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74410

4SF#..ST170

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74410

4SF#..ST170

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170

 2
17410B - GASKET, EXHAUST PIPE
90917-06012

4SFI..ST170

 1
17410B - GASKET, EXHAUST PIPE
90917-06012

4SFI..ST170

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74261

4SFI..ST170

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

3S#,4SFI..ST17#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74400

3SFE,4SFI..ST17#..EXG,EXS,G,GX,MX,X,Z

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17576-74030

5AF,3S#,4SFI..AT170,ST17#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-63060

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

5AF,3E,3S#,4SFI..AT170,ET176,ST17#

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

5AF,3E,3S#,4SFI..AT170,ET176,ST17#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾌﾛﾝﾄ

 1
17565-63030

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾘﾔ

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾌﾛﾝﾄ

 1
17565-63030

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾘﾔ

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63020

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾌﾛﾝﾄ

 1
17565-63030

5AF#,2C,3S#,4SF#..AT170,CT170,ST17#

ﾘﾔ

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74020

4AFE,5AF#,3E,3S#,4SF#..AT17#,ET176,ST17#

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36010

5AF,2C,3S#,4SFI..AT170,CT170,ST17#

 1
Common parts
91515-60820
91611-60822
91655-40825
93386-15012
