ST170-ALMMK (1989)

Toyota Corona

Production Nov 1989 - Feb 1992
Engine 4SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT17#,CT170,ST17#

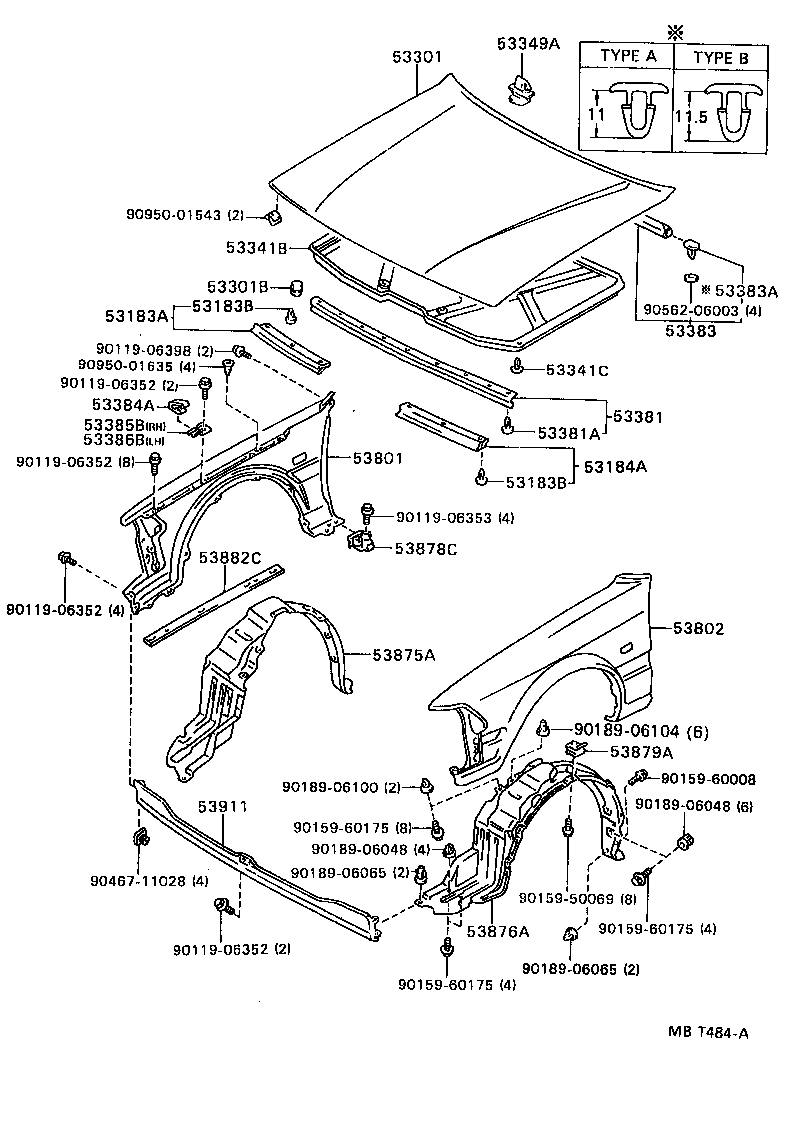

Click highlighted areas on diagram

diagram 53183A 53183B 53183B 53184A 53301 53301B 53341B 53341C 53349A 53381 53381A 53383 53383A 53384A 53385B 53386B 53801 53802 53875A 53876A 53878C 53879A 53882C 53911 9011906352 9011906352 9011906352 9011906352 9011906353 9011906398 9015950069 9015960008 9015960175 9015960175 9015960175 9018906048 9018906048 9018906065 9018906065 9018906100 9018906104 9046711028 9056206003 9095001543 9095001635
Part # Description Qty Price
53183A - SEAL, HEADLAMP COVER, RH
53183-20060

AT17#,CT170,ST17#

 1
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

AT170,CT17#,ET176,ST17#

 11
90467-08050

AT17#,CT170,ST17#

ｱﾘ(ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ)

 1
90467-08011

AT17#,CT170,ST17#

 6
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

AT170,CT17#,ET176,ST17#

 11
90467-08050

AT17#,CT170,ST17#

ｱﾘ(ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ)

 1
90467-08011

AT17#,CT170,ST17#

 6
53184A - SEAL, HEADLAMP COVER, LH
53184-20030

AT17#,CT170,ST17#

 1
53301 - HOOD SUB-ASSY
53301-20270

AT17#,CT17#,ET176,ST17#

 1
53301-20370

AT17#,CT170,ST17#

 1
53301B - CUSHION, HOOD BUMPER
90541-15012

AT17#,CT17#,ET176,ST17#

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20090

AT17#,CT17#,ET176,ST17#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AT17#,CT17#,ET176,ST17#

 9
53383 - SEAL, HOOD TO COWL TOP
53383-20130

CT170..EXS,GX;AT170,CT176,ET176,ST17#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
53383-20110

AT17#,CT17#,ET176,ST17#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08044

AT17#,CT17#,ET176,ST17#

ﾀｲﾌﾟ A

 10
90467-08050

AT17#,CT17#,ET176,ST17#

ﾀｲﾌﾟ B

 1
53384A - BUMPER, FENDER TO HOOD
53384-14030

AT17#,CT17#,ET176,ST17#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-20020

AT17#,CT17#,ET176,ST17#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-20020

AT17#,CT17#,ET176,ST17#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-2B280

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗｰ)

 1
53811-2B300

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

ｱﾘ(ﾄﾞｱ ﾐﾗｰ)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-2B290

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

ｱﾘ(ﾄﾞｱ ﾐﾗｰ)

 1
53812-2B270

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗｰ)

 1
53875A - LINER, FRONT FENDER, RH
53875-20140

AT17#,CT17#,ET176,ST17#

 1
53876A - LINER, FRONT FENDER, LH
53876-20150

AT17#,CT17#,ET176,ST17#

 1
53878C - SPACER, FRONT FENDER
53878-20030

AT17#,CT17#,ET176,ST17#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AT17#,CT17#,ET176,ST17#

 8
53882C - SEAL, FRONT FENDER MAIN
53882-20080

AT17#,CT17#,ET176,ST17#

 2
53911 - PANEL, FRONT VALANCE
53911-20150

AT17#,CT17#,ET176,ST17#

 1
53911-20180

AT17#,CT170,ST17#

 1
Common parts
90119-06352
90119-06353
90119-06398
90159-50069
90159-60008
90159-60175
90189-06048
90189-06065
90189-06100
90189-06104
90467-11028
90562-06003
90950-01543
90950-01635
