ST170-ALMEM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST17#

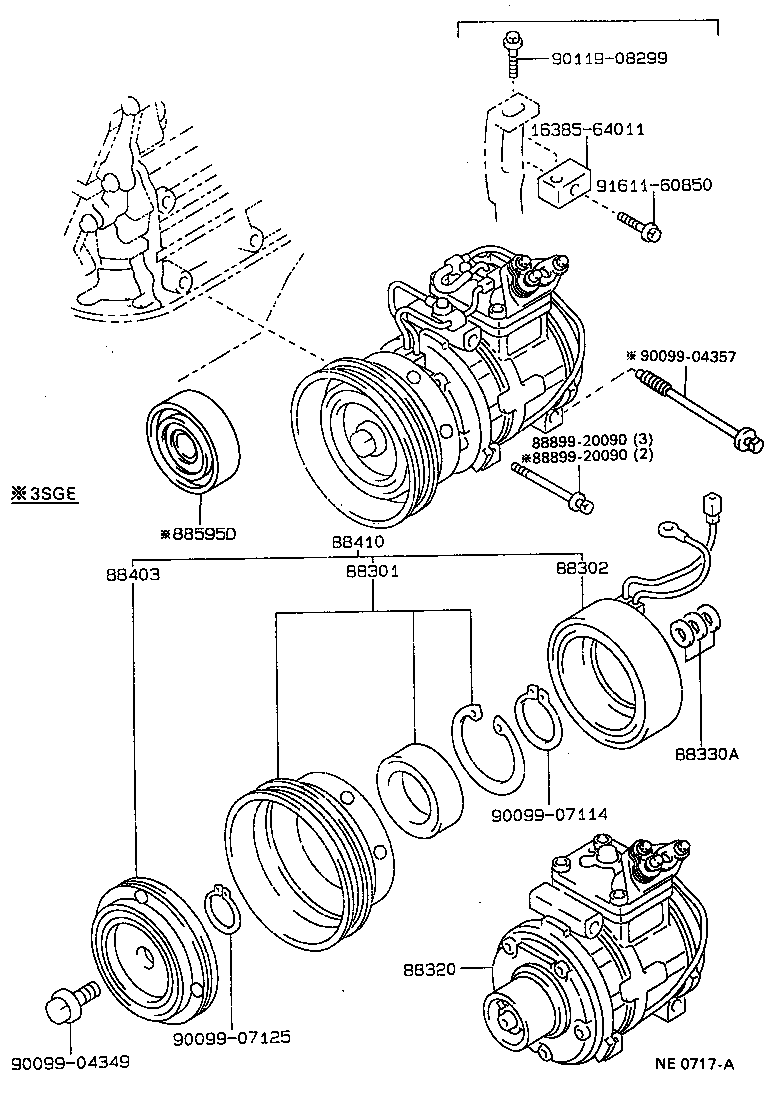

Click highlighted areas on diagram

diagram 1638564011 88301 88302 88320 88330A 88403 88410 88595D 8889920090 8889920090 9009904349 9009904357 9009907114 9009907125 9011908299 9161160850
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20100

ST170

 1
88412-20140

ST170

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20160

ET176,ST17#

 1
88411-20230

ST17#

 1
88411-20230

ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60310

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
88320-20640

ST17#

 1
88320-60310

ST17#..EXG,EXS,G,MX,SXR,X,Z

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT17#,ET176,ST17#

 1
88335-14020

ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

ET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z

 1
88403-16011

AT17#,ET176,ST17#

 1
88410 - CLUTCH ASSY, MAGNET
88410-20290

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
88410-20490

ST170..EXS,MX,X,Z

 1
88410-20490

ST170

 1
Common parts
16385-64011
88899-20090
90099-04349
90099-04357
90099-07114
90099-07125
90119-08299
91611-60850
