ST170-AEPNM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST170..4FC

Click highlighted areas on diagram

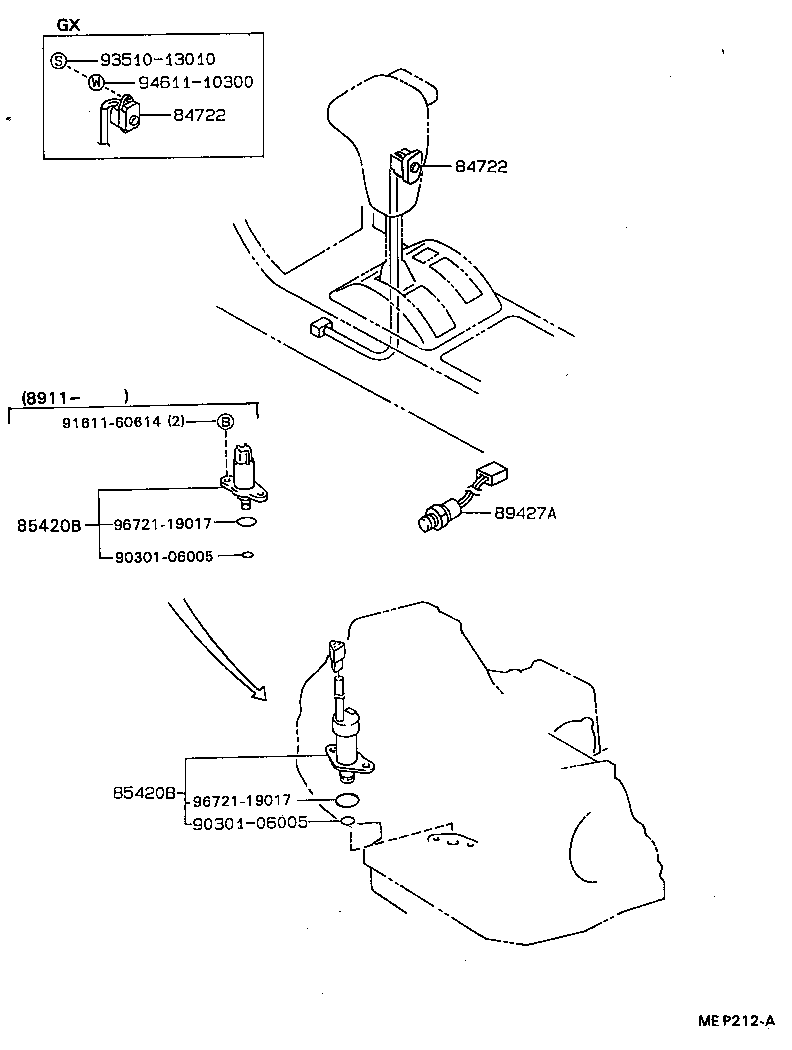

OVERDRIVE

diagram 84722 84722 85420B 85420B 89427A 9030106005 9030106005 9161160614 9351013010 9461110300 9672119017 9672119017
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-2006006

AT175,ST171..4FC..(EXG,G,GX,MX);AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

SABLE,TRIM4#

 1
84722-32010

AT170,CT170,ST170..4FC..GX

 1
84722-2006003

AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

GRAY,TRIM1#

 1
84722-2006004

AT175,ST171..4FC..(EXG,G,GX,MX);AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

BLUE,TRIM8#

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2006006

AT175,ST171..4FC..(EXG,G,GX,MX);AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

SABLE,TRIM4#

 1
84722-32010

AT170,CT170,ST170..4FC..GX

 1
84722-2006003

AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

GRAY,TRIM1#

 1
84722-2006004

AT175,ST171..4FC..(EXG,G,GX,MX);AT170,CT170,ST170..4FC..(EXS,MX,X,Z)

BLUE,TRIM8#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-32081

ST170..4FC

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-32081

ST170..4FC

 1
89427A - SWITCH, TEMPERATURE
89427-12070

ST170..4FC

 1
Common parts
90301-06005
91611-60614
93510-13010
94611-10300
96721-19017
