ST170-AEPNK (1989)

Toyota Corona

Production Nov 1989 - Feb 1992
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

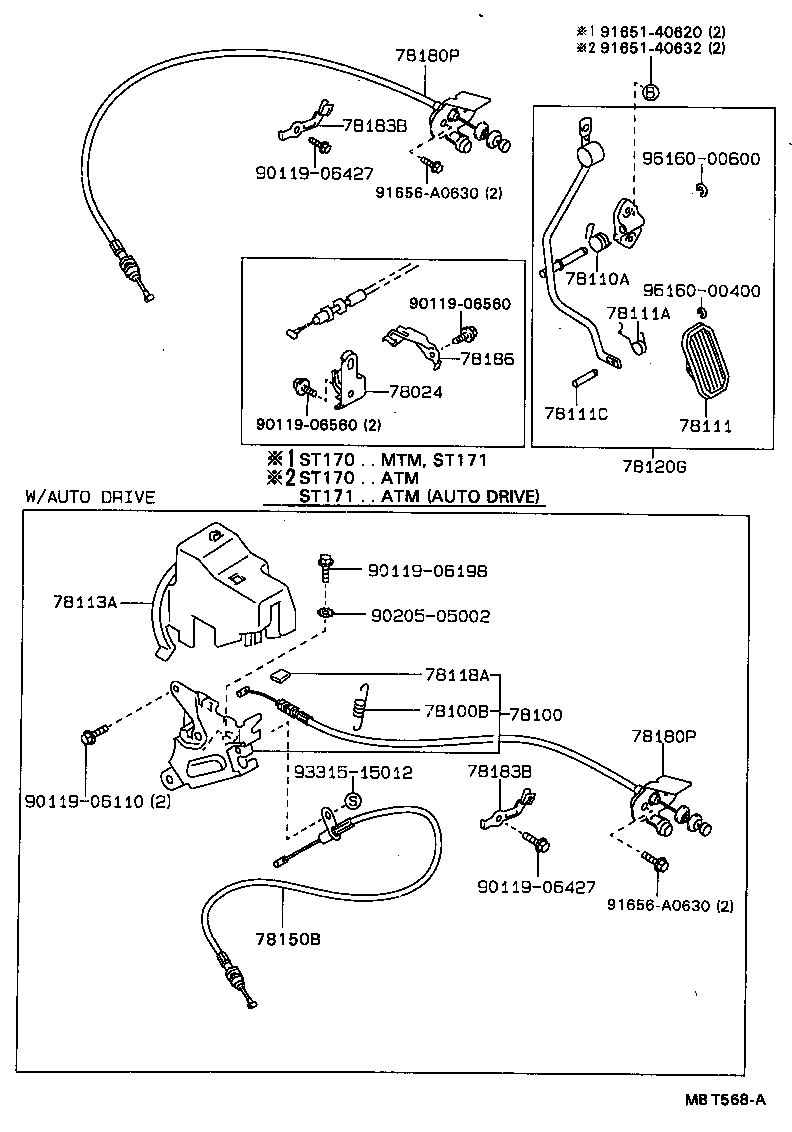

Click highlighted areas on diagram

diagram 78024 78100 78100B 78110A 78111 78111A 78111C 78113A 78118A 78120G 78150B 78180P 78180P 78183B 78183B 78186 9011906110 9011906198 9011906427 9011906427 9011906560 9011906560 9020505002 9165140620 9165140632 91656A0630 91656A0630 9331515012 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20130

ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z

 1
78100 - LINK ASSY, ACCELERATOR
78100-20030

ST17#..EXG,EXS,G,SXR,X

 1
78100B - SPRING (FOR ACCELERATOR LINK)
90506-08019

ST17#..EXG,EXS,G,SXR,X

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048

AT17#,CT170,ET176,ST17#..ATM..(EXS,GT,GTR,GX,MX,X,Z)

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AT17#,CT17#,ET176,ST17#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT17#,CT17#,ET176,ST17#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT17#,CT17#,ET176,ST17#

 1
78118A - STOPPER, ACCELERATOR PEDAL
78118-12010

ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20190

AT17#,CT170,ET176,ST170..ATM

 1
78120-20250

ST170..EXS,X;ST171..4FC..(EXG,G,SXR)

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
78120-20400

AT170;AT175,ET176,ST17#..ATM..(DX,EXS,GT,GTR,GX,SELS,X,Z)

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-20110

ST17#..(EXG,EXS,G,SXR,X)..EFI

 1
78150-20140

ST170..EXS,X

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B060

ST170

 1
78180-2B370

ST17#..EXG,EXS,G,GT,GTR,SXR,X

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B060

ST170

 1
78180-2B370

ST17#..EXG,EXS,G,GT,GTR,SXR,X

ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ)

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20100

CT17#,ST17#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20100

CT17#,ST17#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-20100

ST170..EXS,X

 1
78186-32040

ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI

 1
Common parts
90119-06110
90119-06198
90119-06427
90119-06560
90205-05002
91651-40620
91651-40632
91656-A0630
93315-15012
96160-00400
96160-00600
