ST170-AEPEM (1987)
Toyota Corona

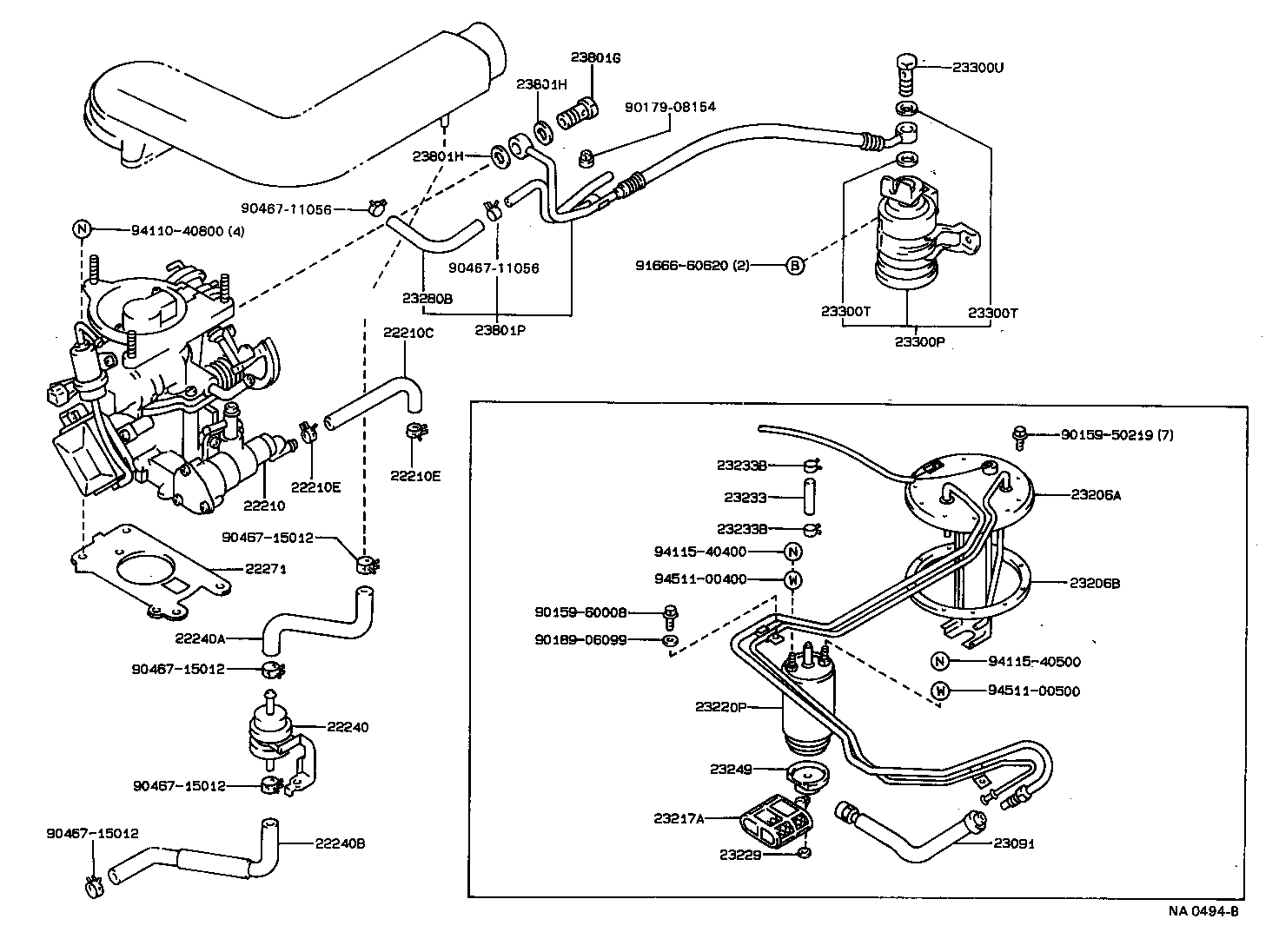

ILLUST NO. 1 OF 2(8712-8911)4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22200-74023 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74010 |
4SFI..ST170 |
1 | ||
| 22200-74020 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74014 |
4SFI..ST170 |
1 | ||
| 22200-74026 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74016 |
4SFI..ST170 |
1 | ||
| 22200-74024 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74013 |
4SFI..ST170 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 99555-10220 |
4SFI..ST170 *H,L=220 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74040 |
4SFI..ST170 |
1 | ||
| 22271-74041 |
4SFI..ST170 |
1 | ||
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74120 |
3S#,4SF#..ST17# |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74320 |
3S#,4SFI..ST17# |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
3S#,4SF#..ST17# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16043 |
3S#,4SF#..ST17# AISAN |
1 | ||
| 23217-16030 |
3S#,4SF#..ST17# NIPPONDENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
3S#,4SF#..ST17# AISAN |
1 | ||
| 23220-43070 |
3S#,4SF#..ST17# NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3S#,4SF#..ST17# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
3S#,4SFI..ST17# |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 90467-13001 |
3S#,4SFI..ST17# |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
3S#,4SFI..ST17# |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 95333-06020 |
4SFI..ST170 *H,L=200 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79175 |
3S#,4SF#..ST17# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3S#,4SF#..ST17# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3S#,4SF#..ST17# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3S#,4SF#..ST17# |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
4SFI..ST170 |
1 | ||
| 90401-12021 |
4SFI..ST170 |
1 | ||
| 90401-12097 |
4SFI..ST170 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12013 |
4SFI..ST170 |
2 | ||
| 90430-12005 |
4SFI..ST170 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12013 |
4SFI..ST170 |
2 | ||
| 90430-12005 |
4SFI..ST170 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74030 |
4SFI..ST170 |
1 | ||
| 23801-74031 |
4SFI..ST170 |
1 | ||
| 23801-74032 |
4SFI..ST170 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90159-60008 | ||||
| 90179-08154 | ||||
| 90189-06099 | ||||
| 90467-11056 | ||||
| 90467-15012 | ||||
| 91666-60620 | ||||
| 94110-40800 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

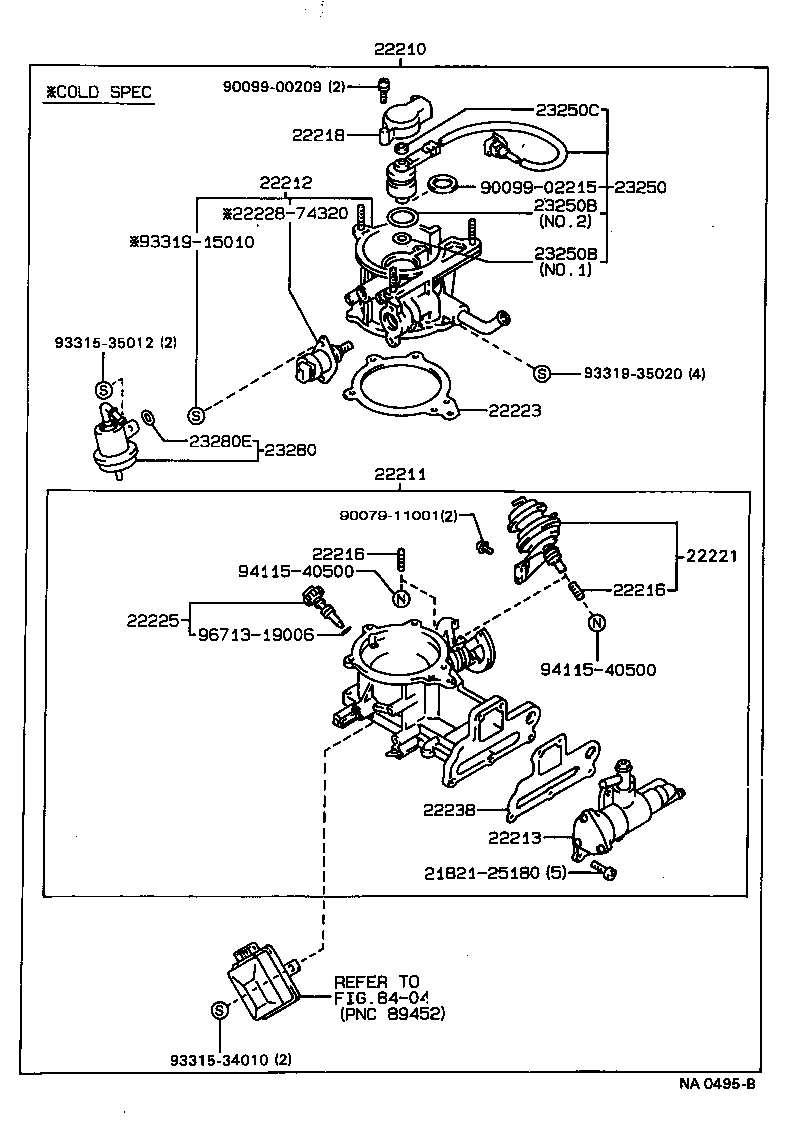

ILLUST NO. 2 OF 2(8712-8911)4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22200-74023 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74010 |
4SFI..ST170 |
1 | ||
| 22200-74020 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74014 |
4SFI..ST170 |
1 | ||
| 22200-74026 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74016 |
4SFI..ST170 |
1 | ||
| 22200-74024 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74013 |
4SFI..ST170 |
1 | ||
| 22211 - BODY, THROTTLE | ||||
| 22211-74310 |
4SFI..ST170 |
1 | ||
| 22211-74314 |
4SFI..ST170 |
1 | ||
| 22211-74316 |
4SFI..ST170 |
1 | ||
| 22212 - BODY, UPPER(FOR THROTTLE BODY) | ||||
| 22212-74320 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22212-74310 |
4SFI..ST170 |
1 | ||
| 22212-74321 |
4SFI..ST170 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22212-74311 |
4SFI..ST170 |
1 | ||
| 22213 - VALVE KIT | ||||
| 22213-74312 |
4SFI..ST170 |
1 | ||
| 22213-74310 |
4SFI..ST170 |
1 | ||
| 22213-74311 |
4SFI..ST170 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4SFI..ST170 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4SFI..ST170 |
2 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-74310 |
4SFI..ST170 |
1 | ||
| 22221 - POSITIONER(FOR THROTTLE BODY) | ||||
| 22221-74311 |
4SFI..ST170 |
1 | ||
| 22221-74310 |
4SFI..ST170 |
1 | ||
| 22223 - GASKET, BODY UPPER(FOR THROTTLE BODY) | ||||
| 22223-74310 |
4SFI..ST170 |
1 | ||
| 22225 - SCREW, IDLE ADJUSTING(FOR THROTTLE BODY) | ||||
| 22225-63020 |
4SFI..ST170 |
1 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22224-74310 |
4SFI..ST170 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74070 |
4SFI..ST170 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90099-14083 |
4SFI..ST170 NO.2 |
1 | ||
| 90099-14082 |
4SFI..ST170 NO.1 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90099-14083 |
4SFI..ST170 NO.2 |
1 | ||
| 90099-14082 |
4SFI..ST170 NO.1 |
1 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90099-32124 |
4SFI..ST170 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74060 |
4SFI..ST170 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4SFI..ST170 |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 22228-74320 | ||||
| 90079-11001 | ||||
| 90099-00209 | ||||
| 90099-02215 | ||||
| 93315-34010 | ||||
| 93315-35012 | ||||
| 93319-15010 | ||||
| 93319-35020 | ||||
| 94115-40500 | ||||
| 96713-19006 | ||||
| Linked diagrams | ||||
| 8404 | ||||
