ST170-AEMNM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

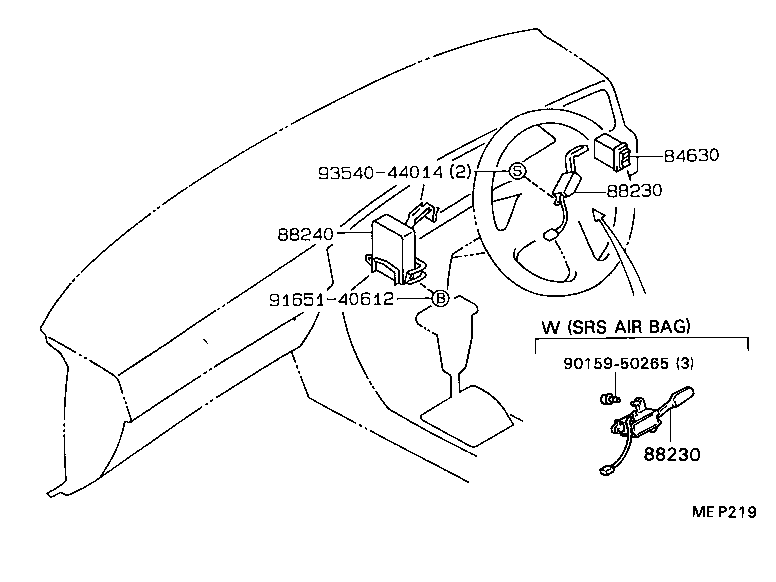

ILLUST NO. 2 OF 2(8712- )ST17#..EXG,EXS,G,GT,GTR,SXR,X

Click highlighted areas on diagram

diagram 84630 88230 88230 88240 9015950265 9165140612 9354044014
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-20050

ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-20100

ST17#..EXG,G,GT,GTR,SXR,X

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-20100

ST17#..EXG,G,GT,GTR,SXR,X

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20280

ST17#..EXG,EXS,G,SXR,X

 1
Common parts
90159-50265
91651-40612
93540-44014

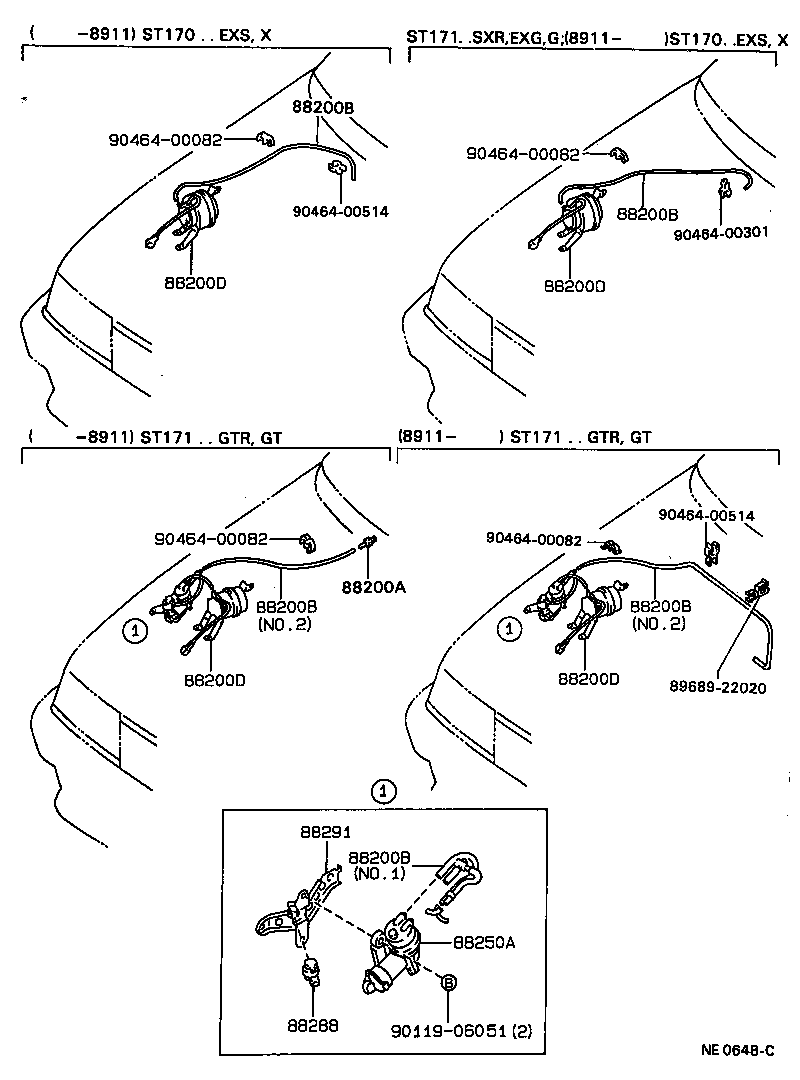

ILLUST NO. 1 OF 2(8712- )ST17#..EXG,EXS,G,GT,GTR,SXR,X

Click highlighted areas on diagram

diagram 88200A 88200B 88200B 88200B 88200B 88200B 88200D 88200D 88200D 88200D 88250A 88288 88291 8968922020 9011906051 9046400082 9046400082 9046400082 9046400082 9046400301 9046400514 9046400514
Part # Description Qty Price
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004

ST170..EXS,X

長さ=950

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004

ST170..EXS,X

長さ=950

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004

ST170..EXS,X

長さ=950

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004

ST170..EXS,X

長さ=950

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92004

ST170..EXS,X

長さ=950

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST17#..EXG,EXS,G,SXR,X

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST17#..EXG,EXS,G,SXR,X

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST17#..EXG,EXS,G,SXR,X

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20040

ST17#..EXG,EXS,G,SXR,X

 1
Common parts
89689-22020
90119-06051
90464-00082
90464-00301
90464-00514
