ST170-AEMNM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

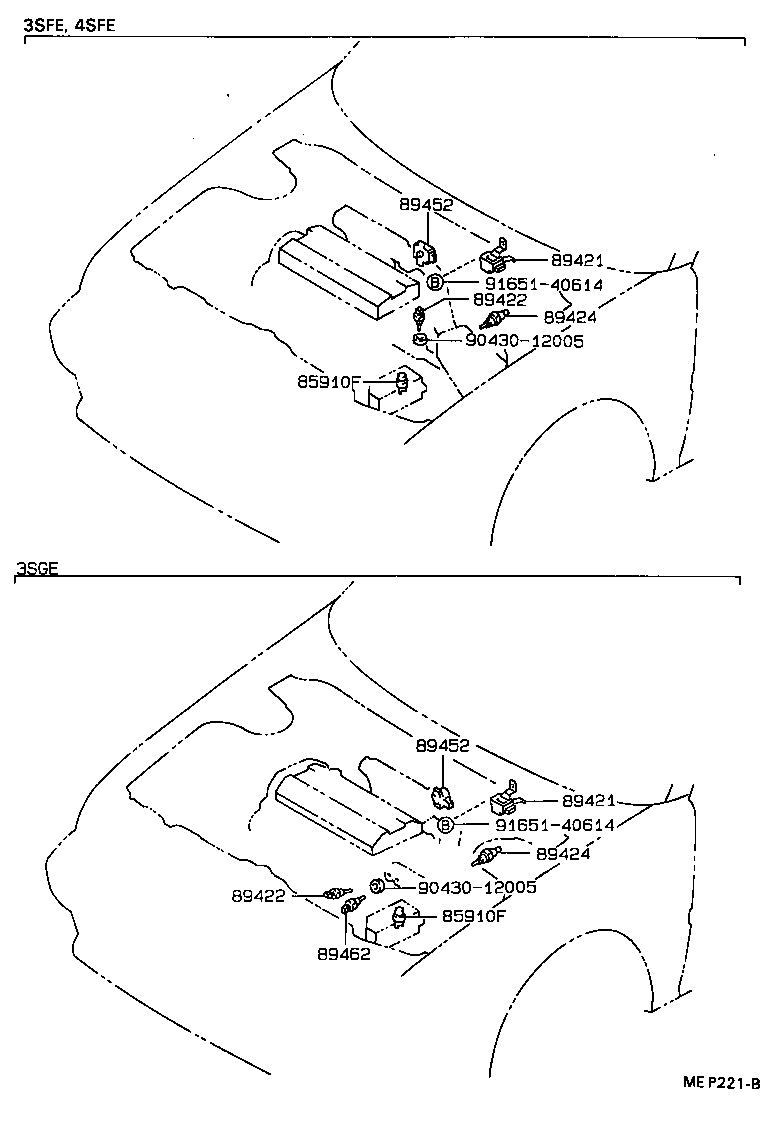

ILLUST NO. 1 OF 2(8712- )ST171 ; (8911- )ST170

Click highlighted areas on diagram

diagram 85910F 85910F 89421 89421 89422 89422 89424 89424 89452 89452 89462 9043012005 9043012005 9165140614 9165140614
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

AT17#,ST17#..CI,EFI

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

AT17#,ST17#..CI,EFI

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20080

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20080

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

AT17#,ST17#..CI,EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

AT17#,ST17#..CI,EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

ST170

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

ST170

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

ST170

 1
Common parts
90430-12005
91651-40614

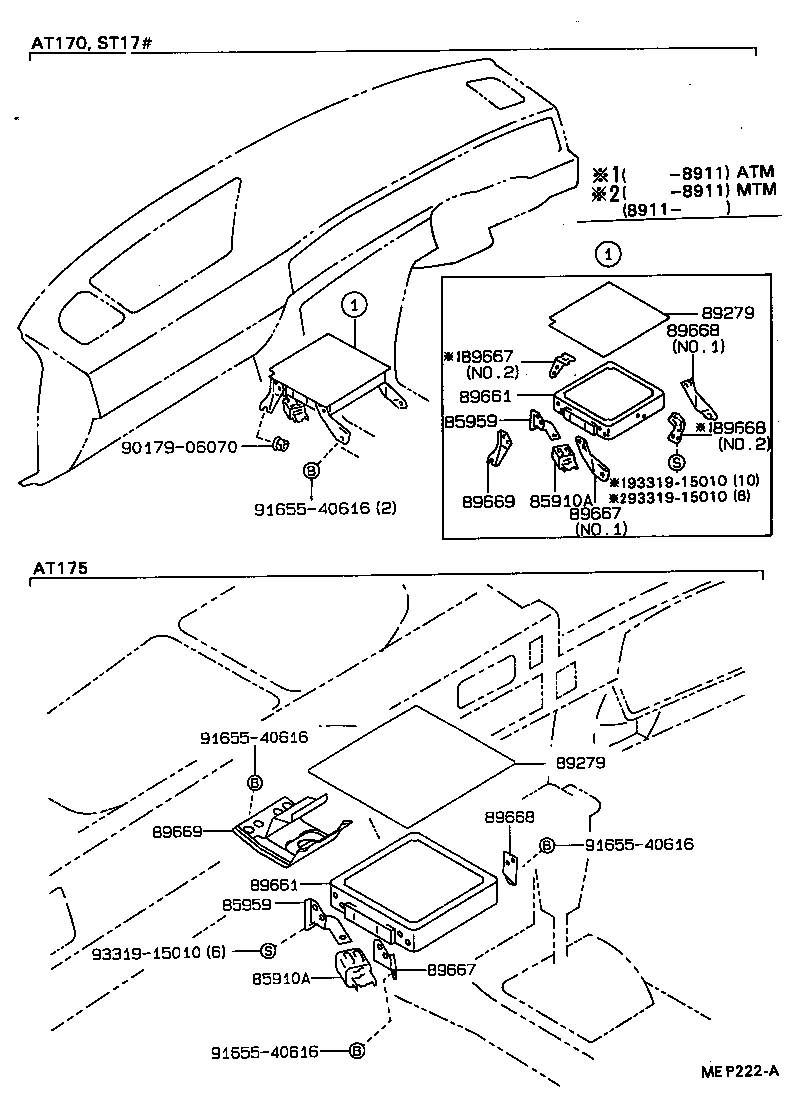

ILLUST NO. 2 OF 2(8712- )CI,EFI

Click highlighted areas on diagram

diagram 85910A 85910A 85959 85959 89279 89279 89661 89661 89667 89667 89667 89668 89668 89668 89669 89669 9017906070 9165540616 9165540616 9165540616 9165540616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

AT175,ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010

AT175,ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
85959 - HOLDER, RELAY
85959-20110

AT175,ST17#

 1
85959 - HOLDER, RELAY
85959-20110

AT175,ST17#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-20110

AT170,ST17#..CI,EFI

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-20110

AT170,ST17#..CI,EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-20460

ST170

 1
89661-20462

ST170..5F

 1
89661-20461

ST170..5F

 1
89661-20464

ST170..5F

 1
89661-20463

ST170..5F

 1
89661 - COMPUTER, ENGINE CONTROL
89661-20460

ST170

 1
89661-20462

ST170..5F

 1
89661-20461

ST170..5F

 1
89661-20464

ST170..5F

 1
89661-20463

ST170..5F

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20130

ST170;ST171..5F..(EXG,G,SXR)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20130

ST170;ST171..5F..(EXG,G,SXR)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20130

ST170;ST171..5F..(EXG,G,SXR)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20120

ST170;ST171..5F

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20120

ST170;ST171..5F

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20120

ST170;ST171..5F

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-20100

ST17#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-20100

ST17#

 1
Common parts
90179-06070
91655-40616
93319-15010

ILLUST NO. 1 OF 2(8712-8911)ST170 ; (8808- )AT17#..EFI

Click highlighted areas on diagram

diagram 28515 28519 85910F 85910F 89421 89421 89422 89422 89424 89424 89452 89452 89462 89462 9020112109 9043012005 9043012221 9165140614 9165140614 9165140614 9331915008
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-74020

4SFI..ST170

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-74020

4SFI..ST170

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

AT17#,ST17#..CI,EFI

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

AT17#,ST17#..CI,EFI

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20080

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20080

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

AT17#,ST17#..CI,EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

AT17#,ST17#..CI,EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

ST17#..EXG,EXS,G,GX,MX,SXR,X,Z

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

ST170

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

ST170

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

ST170

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

ST170

 1
Common parts
90201-12109
90430-12005
90430-12221
91651-40614
93319-15008
