ST170-AEMMM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT17#,CT170,ST17#

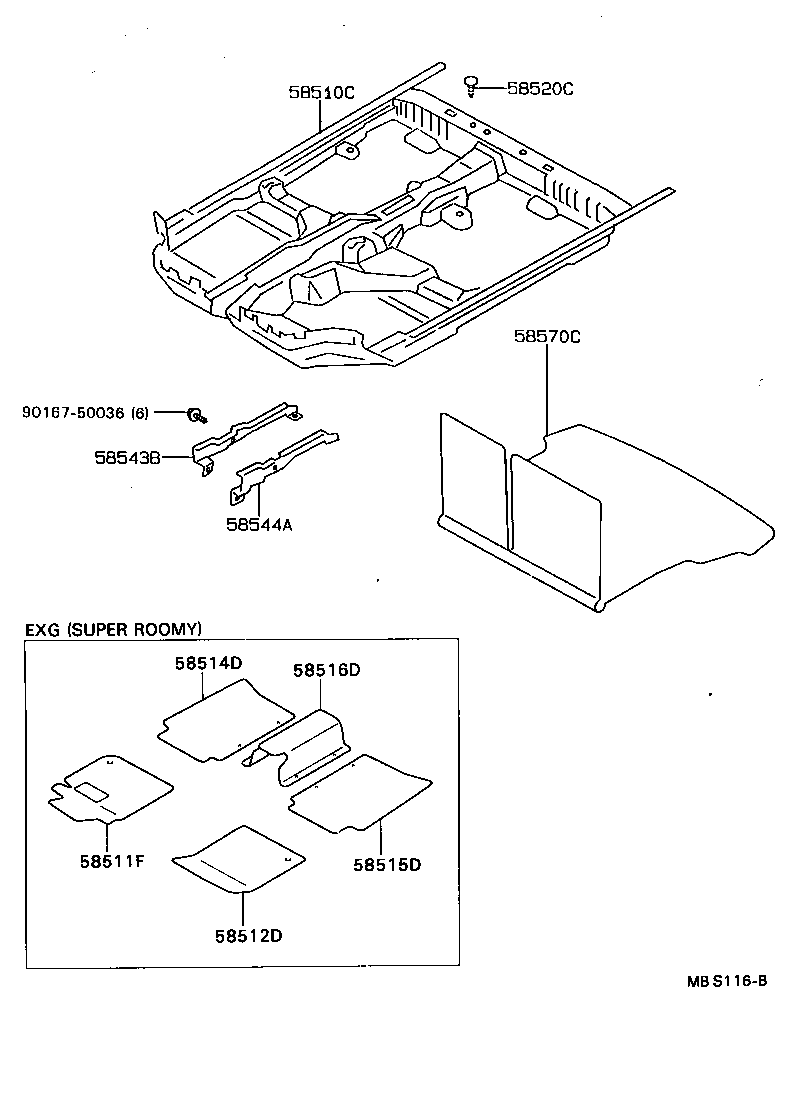

Click highlighted areas on diagram

diagram 58510C 58511F 58512D 58514D 58515D 58516D 58520C 58543B 58544A 58570C 9016750036
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2B43006

AT170,CT170,ST170..EXS,GX,MX,X,Z

SABLE,TRIM4#

 1
58510-2B43003

AT170,CT170,ST17#..EXS,GX,MX,SXR,X,Z

GRAY,TRIM1#

 1
58510-2B84004

ST170..X

SFX ﾘﾐﾃﾂﾄﾞ,BLUE,TRIM8#

 1
58510-2B43004

AT170,CT170,ST170..EXS,GX,MX,X,Z

BLUE,TRIM8#

 1
58510-2B82004

ST170..X

SFX ﾘﾐﾃﾂﾄﾞ,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
58510-2B49004

AT170,CT170,ST170..EXS,GX,MX,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
58510-2B43003

AT170,CT170,ST17#..EXS,GX,MX,SXR,X,Z

GRAY,TRIM1#

 2
58510-2B43006

AT170,CT170,ST170..EXS,GX,MX,X,Z

SABLE,TRIM4#

 2
58510-2B43004

AT170,CT170,ST170..EXS,GX,MX,X,Z

BLUE,TRIM8#

 2
58510-2B49006

AT170,CT170,ST170..EXS,GX,MX,SELS,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4#

 1
58510-2B49003

AT170,CT170,ST17#..EXS,GX,MX,SELS,SXR,X,Z

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601633

AT17#,CT170,ST17#

GRAY,TRIM1#

 2
90467-0601657

AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 2
90467-0601640

AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

DARK BLUE,TRIM8#

 2
58543B - BRACKET, FLOOR CARPET, RH
58543-20010

AT170,CT17#,ET176,ST17#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20010

AT170,CT17#,ET176,ST17#

 1
Common parts
90167-50036
