ST170-AEMMM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SFE,4SF#

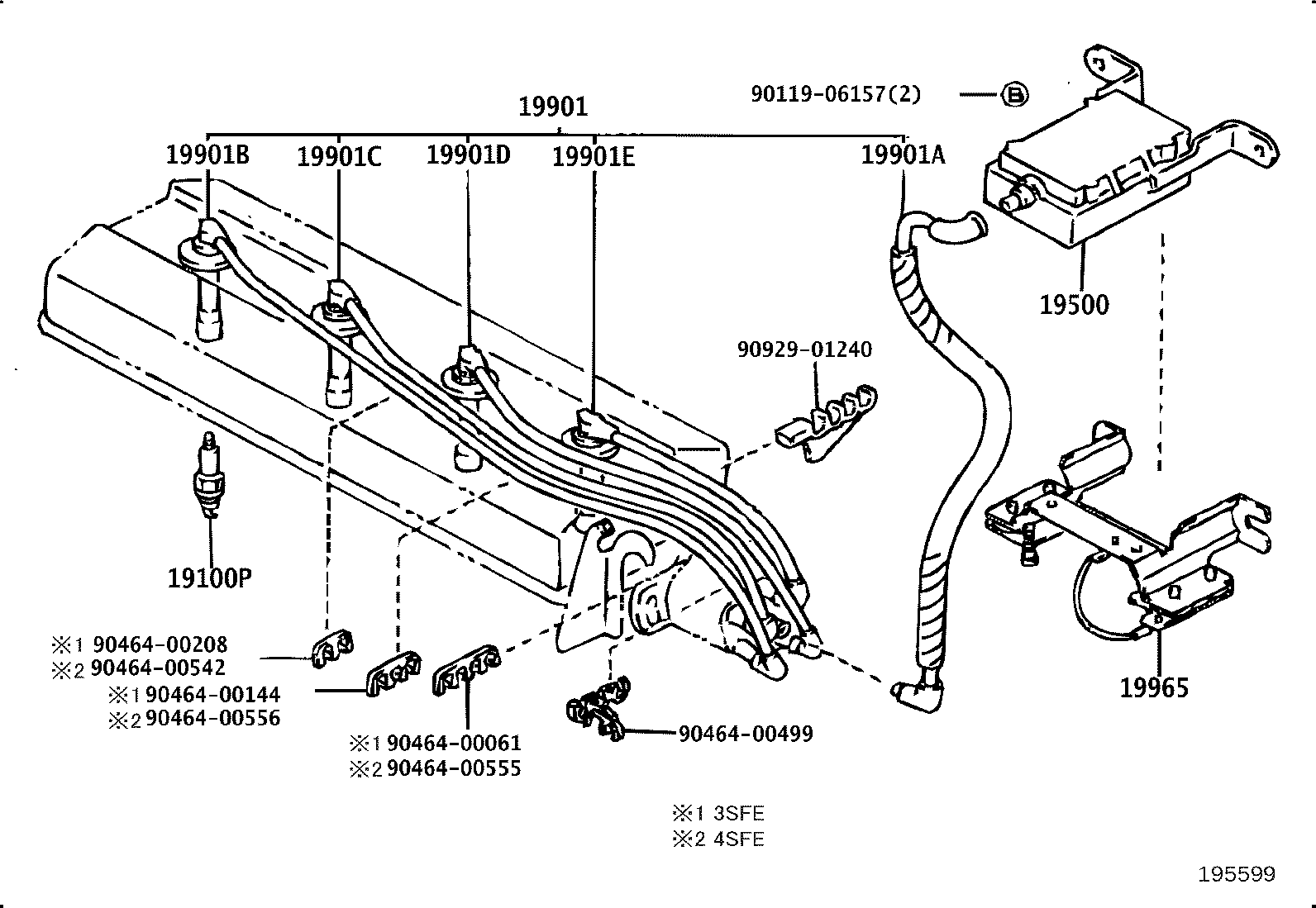

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19965 9011906157 9046400061 9046400144 9046400208 9046400499 9046400542 9046400555 9046400556 9092901240
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01129

3SFE,4SFI..ST17#

Q16R−U11

 4
90919-01170

4SFI..ST170

Q14R−U11

 4
19500 - COIL ASSY, IGNITION
90919-02175

3S#,4SFI..ST17#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21404

4SFI..ST170

 1
19901A - CORD, COIL RESISTIVE
90919-13281

3SFE,4SFI..ST17#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12799

4SFI..ST170

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12800

4SFI..ST170

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12801

4SFI..ST170

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12802

4SFI..ST170

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03109

3S#,4SF#..ST17#

 1
Common parts
90119-06157
90464-00061
90464-00144
90464-00208
90464-00499
90464-00542
90464-00555
90464-00556
90929-01240
