ST170-AEMEM (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT175..EXS,MX ; (8712- )AT170,CT170,ST17#..EXG,EXS,GTR,SXR

Click highlighted areas on diagram

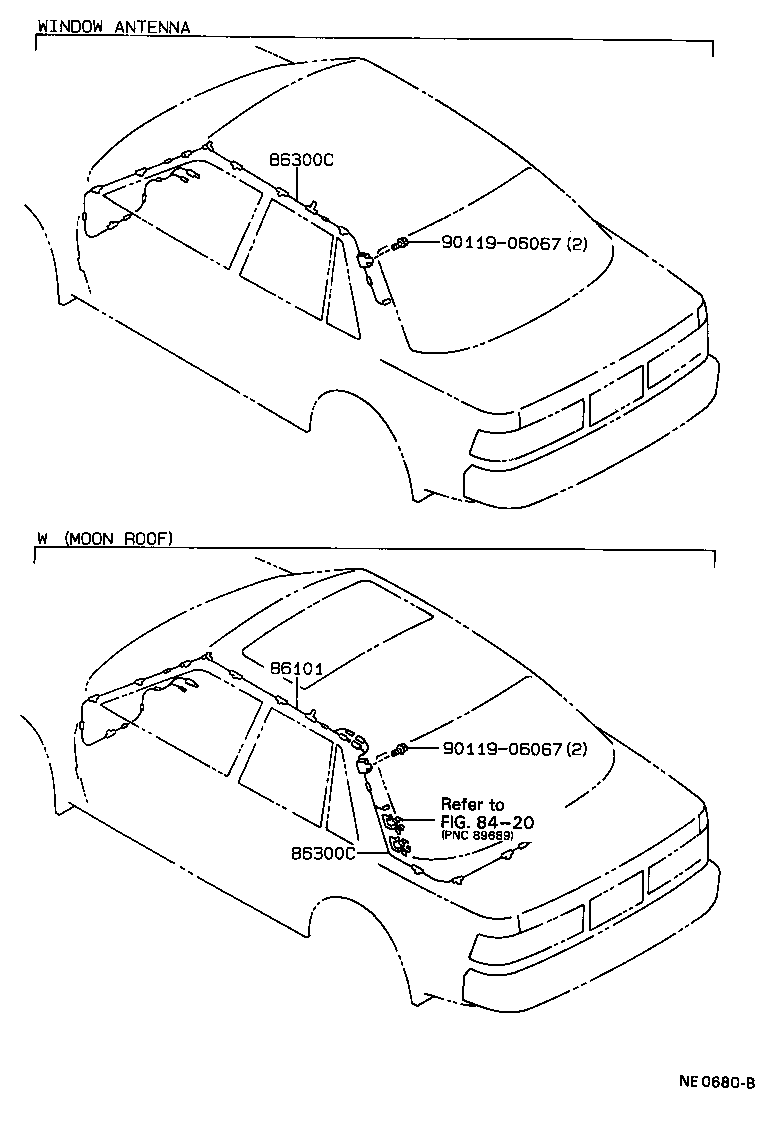

diagram 8420 86101 86300C 86300C 9011906067 9011906067
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20270

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

 1
86101-20300

ST170..X;ST171..5F..G

ｱﾘ(*WDL),NO.2

 1
86101-20280

ST17#..G,GT,X

NO.1

 1
86101-20290

ST17#..G,GT,X

NO.2

 1
86101-20270

ST170..X;ST171..5F..G

ｱﾘ(*MR),NO.1

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20560

ST170..X;ST171..5F..G

ｱﾘ(*WDL)

 1
86300-20540

ST17#..EXG,EXS,SXR

ｱﾘ(*MR & *WDL)

 1
86300-20530

CT170,ST17#..EXG,EXS,GTR,SXR

ｱﾘ(*WDL)

 1
86300-20520

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

ｱﾘ(*MR)

 1
86300-20510

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,GTR,SXR

 1
86300-20550

ST17#..G,GT,X

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20560

ST170..X;ST171..5F..G

ｱﾘ(*WDL)

 1
86300-20540

ST17#..EXG,EXS,SXR

ｱﾘ(*MR & *WDL)

 1
86300-20530

CT170,ST17#..EXG,EXS,GTR,SXR

ｱﾘ(*WDL)

 1
86300-20520

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

ｱﾘ(*MR)

 1
86300-20510

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,GTR,SXR

 1
86300-20550

ST17#..G,GT,X

 1
Common parts
90119-06067
Linked diagrams
8420

(8712- )G,GT,X

Click highlighted areas on diagram

diagram 8271114450 8281720850 86101 86101 86300C 9011906122
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20270

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

 1
86101-20300

ST170..X;ST171..5F..G

ｱﾘ(*WDL),NO.2

 1
86101-20280

ST17#..G,GT,X

NO.1

 1
86101-20290

ST17#..G,GT,X

NO.2

 1
86101-20270

ST170..X;ST171..5F..G

ｱﾘ(*MR),NO.1

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20270

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

 1
86101-20300

ST170..X;ST171..5F..G

ｱﾘ(*WDL),NO.2

 1
86101-20280

ST17#..G,GT,X

NO.1

 1
86101-20290

ST17#..G,GT,X

NO.2

 1
86101-20270

ST170..X;ST171..5F..G

ｱﾘ(*MR),NO.1

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20560

ST170..X;ST171..5F..G

ｱﾘ(*WDL)

 1
86300-20540

ST17#..EXG,EXS,SXR

ｱﾘ(*MR & *WDL)

 1
86300-20530

CT170,ST17#..EXG,EXS,GTR,SXR

ｱﾘ(*WDL)

 1
86300-20520

CT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR

ｱﾘ(*MR)

 1
86300-20510

AT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,GTR,SXR

 1
86300-20550

ST17#..G,GT,X

 1
Common parts
82711-14450
82817-20850
90119-06122
