ST162-TEPVF (1985)
Toyota Corona
Production
Aug 1985
-
Nov 1987
Engine
3SGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4D

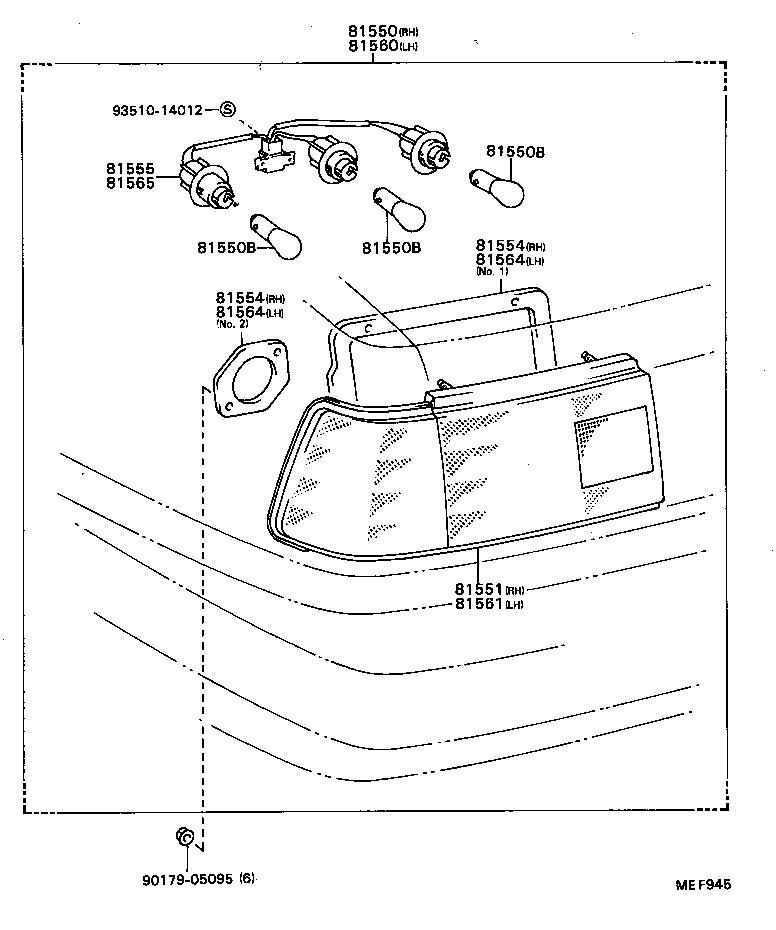

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-20760 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT150,CT150,ST150,16# 12V 21/5W,12V 21W |
2 | ||
| 99132-11230 |
AT150,CT150,ST150,16# 12V 23W,12V 23W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT150,CT150,ST150,16# 12V 21/5W,12V 21W |
2 | ||
| 99132-11230 |
AT150,CT150,ST150,16# 12V 23W,12V 23W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AT150,CT150,ST150,16# 12V 21/5W,12V 21W |
2 | ||
| 99132-11230 |
AT150,CT150,ST150,16# 12V 23W,12V 23W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-20760 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-20600 |
AT150,CT150,ST150,16#..4D NO.2 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-20600 |
AT150,CT150,ST150,16#..4D NO.2 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-20760 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-20700 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-20700 |
AT150,CT150,ST150,16#..4D |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-20600 |
AT150,CT150,ST150,16#..4D NO.2 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-20600 |
AT150,CT150,ST150,16#..4D NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-20760 |
AT150,CT150,ST150,16#..4D |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14012 | ||||
