ST162-TEPVF (1985)

Toyota Corona

Production Aug 1985 - Nov 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3SGELU

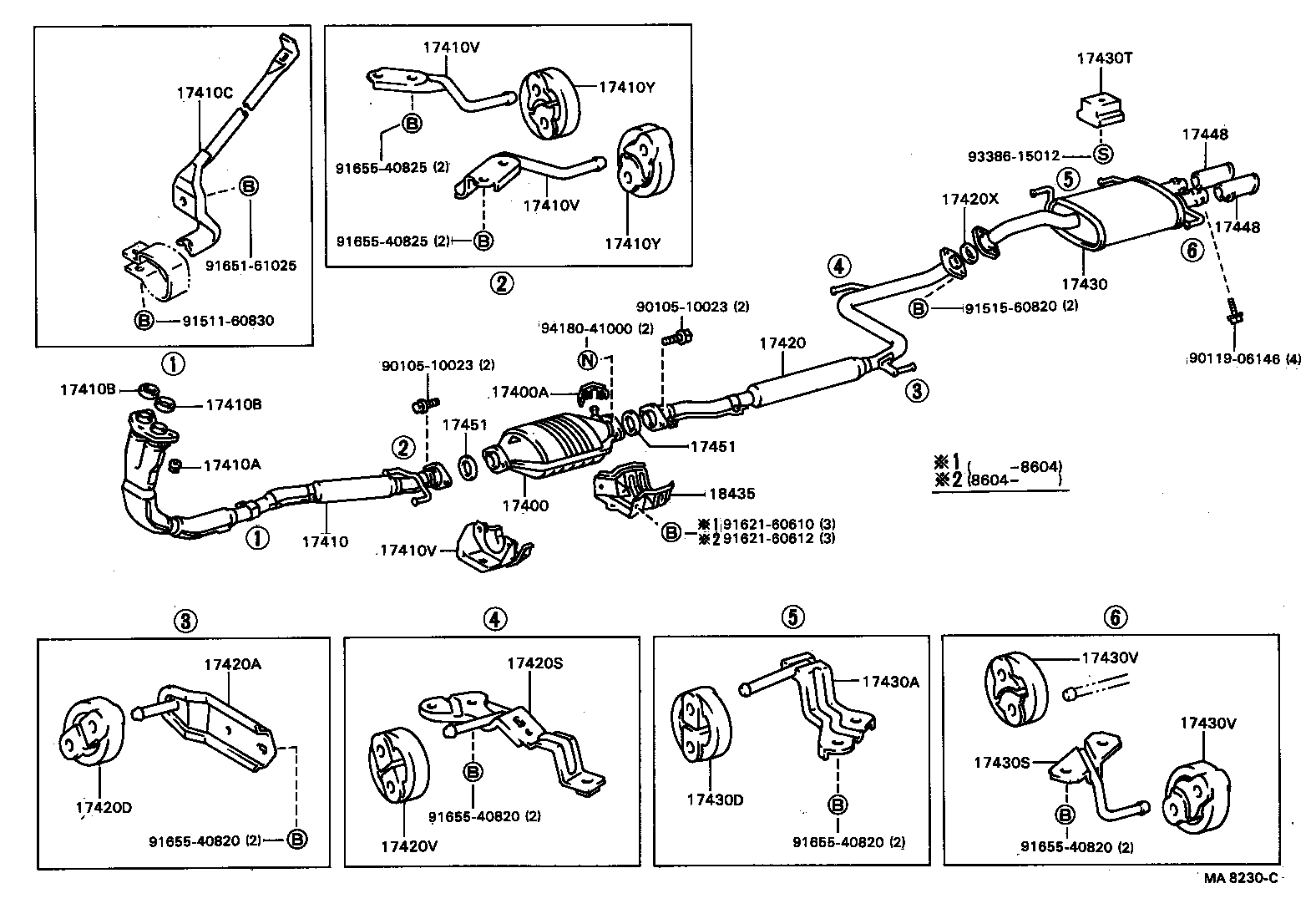

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410B 17410C 17410V 17410V 17410V 17410Y 17410Y 17420 17420A 17420D 17420S 17420V 17420X 17430 17430A 17430D 17430S 17430T 17430V 17430V 17448 17448 17451 17451 18435 9010510023 9010510023 9011906146 9151160830 9151560820 9162160610 9162160612 9165161025 9165540820 9165540820 9165540820 9165540820 9165540825 9165540825 9338615012 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74050

3SGELU..ST162

 1
18450-74110

3SGELU..ST162

 1
17400A - FLANGE, THERMOSENSER INLET
18491-63010

1SELU,1SLU,3SGELU..ST150,16#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74090

3SGELU..ST162

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

3SGELU..ST162

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

3SGELU..ST162

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17506-74020

3SGELU..ST162

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-74020

3SGELU..ST162

CTR

 1
17504-63010

1SELU,1SLU,3SGELU..ST150,16#

RH

 1
17505-63020

1SELU,3SGELU..ST16#

LH

 1
17505-74010

1SELU,3SGELU..ST16#

LH

 1
17504-74030

1SELU,3SGELU..ST16#

RH

 1
17504-74040

1SELU,3SGELU..ST16#

RH

 1
17504-74010

1SELU,3SGELU..ST16#

RH

 1
17505-74020

1SELU,3SGELU..ST16#

LH

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-74020

3SGELU..ST162

CTR

 1
17504-63010

1SELU,1SLU,3SGELU..ST150,16#

RH

 1
17505-63020

1SELU,3SGELU..ST16#

LH

 1
17505-74010

1SELU,3SGELU..ST16#

LH

 1
17504-74030

1SELU,3SGELU..ST16#

RH

 1
17504-74040

1SELU,3SGELU..ST16#

RH

 1
17504-74010

1SELU,3SGELU..ST16#

RH

 1
17505-74020

1SELU,3SGELU..ST16#

LH

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17503-74020

3SGELU..ST162

CTR

 1
17504-63010

1SELU,1SLU,3SGELU..ST150,16#

RH

 1
17505-63020

1SELU,3SGELU..ST16#

LH

 1
17505-74010

1SELU,3SGELU..ST16#

LH

 1
17504-74030

1SELU,3SGELU..ST16#

RH

 1
17504-74040

1SELU,3SGELU..ST16#

RH

 1
17504-74010

1SELU,3SGELU..ST16#

RH

 1
17505-74020

1SELU,3SGELU..ST16#

LH

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-16020

3SGELU..ST162

 2
17565-63071

3SGELU..ST162

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-16020

3SGELU..ST162

 2
17565-63071

3SGELU..ST162

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74100

3SGELU..ST162

 1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17506-74010

1SELU,3SGELU..ST16#

 1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
17565-63060

1SELU,1SLU,3SGELU..ST150,16#

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17507-74010

1SELU,3SGELU..ST16#

 1
17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR
17565-63060

1SELU,1SLU,3SGELU..ST150,16#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

3SGELU..ST162

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74100

3SGELU..ST162

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17508-74010

1SELU,3SGELU..ST16#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63020

3SGELU..ST162..4FC

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-74010

1SELU,3SGELU..ST16#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

3ALU,2CL,1S#,3SGELU..AT150,CT150,ST150,16#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

3SGELU..ST162..4FC

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63030

3SGELU..ST162..4FC

 2
17448 - BAFFLE, TAIL PIPE
17448-74030

3SGELU..ST162

 2
17448 - BAFFLE, TAIL PIPE
17448-74030

3SGELU..ST162

 2
17451 - GASKET, EXHAUST PIPE
90917-06032

3SGELU..ST162

RR

 1
90917-06031

3SGELU..ST162

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06032

3SGELU..ST162

RR

 1
90917-06031

3SGELU..ST162

FR

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18436-74020

3SGELU..ST162

 1
18436-74010

3SGELU..ST162

 1
Common parts
90105-10023
90119-06146
91511-60830
91515-60820
91621-60610
91621-60612
91651-61025
91655-40820
91655-40825
93386-15012
94180-41000
