ST162-TEPVF (1985)

Toyota Corona

Production Aug 1985 - Nov 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3SGELU

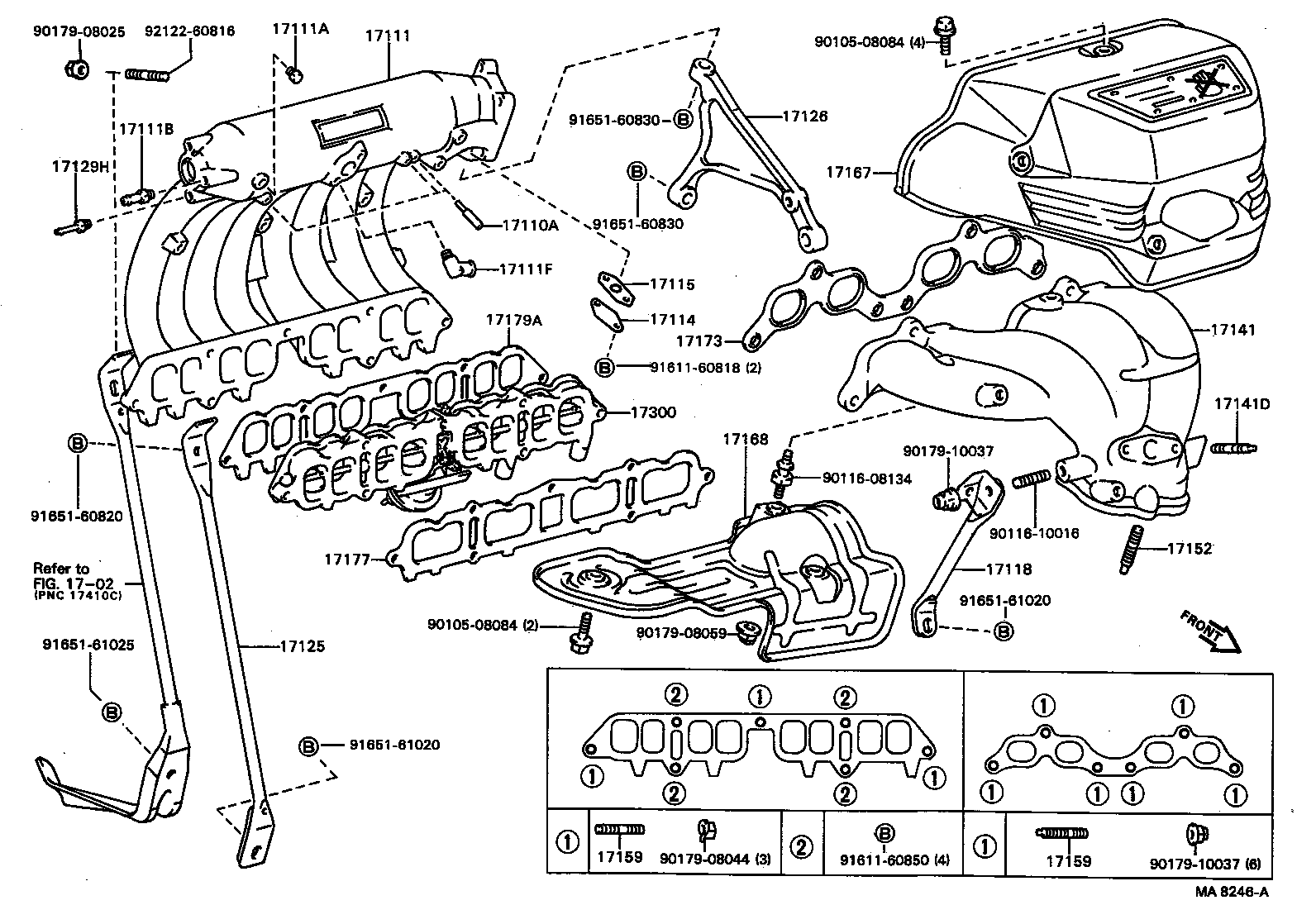

Click highlighted areas on diagram

diagram 1702 17110A 17111 17111A 17111B 17111F 17114 17115 17118 17125 17126 17129H 17141 17141D 17152 17159 17159 17167 17168 17173 17177 17179A 17300 9010508084 9010508084 9011608134 9011610016 9017908025 9017908044 9017908059 9017910037 9017910037 9161160818 9161160850 9165160820 9165160830 9165160830 9165161020 9165161020 9165161025 9212260816
Part # Description Qty Price
17110A - UNION, VACUUM HOSE
90406-04002

3SGELU..ST162

 3
17111 - MANIFOLD, INTAKE
17111-88360

3SGELU..ST162

 1
17111A - PLUG, NO.1
90072-34107

3SGELU..ST162

 1
90345-51006

3SGELU..ST162

 1
17111B - PLUG, NO.2
96411-43000

3SGELU..ST162

*54

 1
96411-43500

3SGELU..ST162

*53

 1
17111F - UNION(FOR VACUUM HOSE TO CARBURETOR)
90405-14008

3SGELU..ST162

*53

 1
90405-14004

3SGELU..ST162

 1
90405-14004

3SGELU..ST162

*54

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-74030

3SGELU..ST162

*53

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-74040

3SGELU..ST162

*53

 1
17118 - STAY, MANIFOLD
17118-88362

3SGELU..ST162

 1
17125 - STAY, SURGE TANK, NO.1
17125-88361

3SGELU..ST162

 1
17126 - STAY, SURGE TANK, NO.2
17126-88360

3SGELU..ST162

 1
17129H - UNION, NO.4
90404-51026

3SGELU..ST162

 1
17141 - MANIFOLD, EXHAUST
17141-88360

3SGELU..ST162

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08187

3SGELU..ST162

 2
90116-08253

3SGELU..ST162

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1S#,3SGELU..ST150,16#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SGELU..ST162

EXHAUST MANIFOLD SIDE

 6
90116-10113

3SGELU..ST162

EXHAUST MANIFOLD SIDE

 6
90116-08186

3SGELU..ST162

INTAKE MANIFOLD SIDE

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SGELU..ST162

EXHAUST MANIFOLD SIDE

 6
90116-10113

3SGELU..ST162

EXHAUST MANIFOLD SIDE

 6
90116-08186

3SGELU..ST162

INTAKE MANIFOLD SIDE

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-88361

3SGELU..ST162

*54

 1
17167-74021

3SGELU..ST162

*53

 1
17167-88361

3SGELU..ST162

 1
17167-74021

3SGELU..ST162

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-88360

3SGELU..ST162

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-88360

3SGELU..ST162

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-88360

3SGELU..ST162

 1
17177-74010

3SGELU..ST162

*53

 1
17177-88360

3SGELU..ST162

*54

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17171-88360

3SGELU..ST162

*54

 1
17171-74010

3SGELU..ST162

*53

 1
17171-88360

3SGELU..ST162

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-88380

3SGELU..ST162

 1
17300-88360

3SGELU..ST162

 1
Common parts
90105-08084
90116-08134
90116-10016
90179-08025
90179-08044
90179-08059
90179-10037
91611-60818
91611-60850
91651-60820
91651-60830
91651-61020
91651-61025
92122-60816
Linked diagrams
1702
