ST162-TEMVF (1985)
Toyota Corona
Production
Aug 1985
-
Nov 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )ST16#

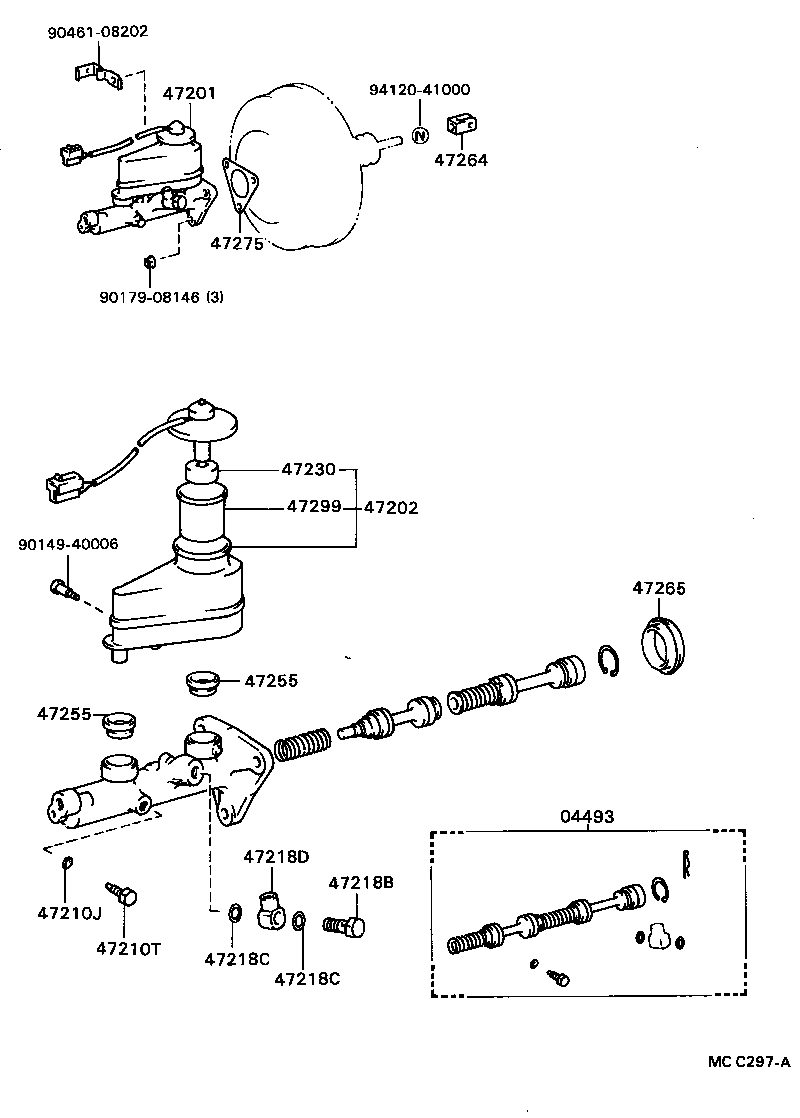

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20130 |
ST16# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-20380 |
ST16# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-20270 |
ST16# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AT150,CT150,ST150,16# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
AT150,CT150,ST150,16# |
1 | ||
| 47218B - BOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90401-10023 |
ST16# |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
ST16# |
2 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
ST16# |
2 | ||
| 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90405-10073 |
ST16# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-12070 |
ST16# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
AT150,CT150,ST150,16# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-10010 |
AT150,CT150,ST150,16# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10080 |
AT150,CT150,ST150,16# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
AT150,CT150,ST150,16# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
ST16# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
AT150,CT150,ST150,16# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90461-08202 | ||||
| 94120-41000 | ||||
