ST160-TEPSE (1985)

Toyota Corona

Production Aug 1985 - Nov 1987
Engine 1SELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST16#

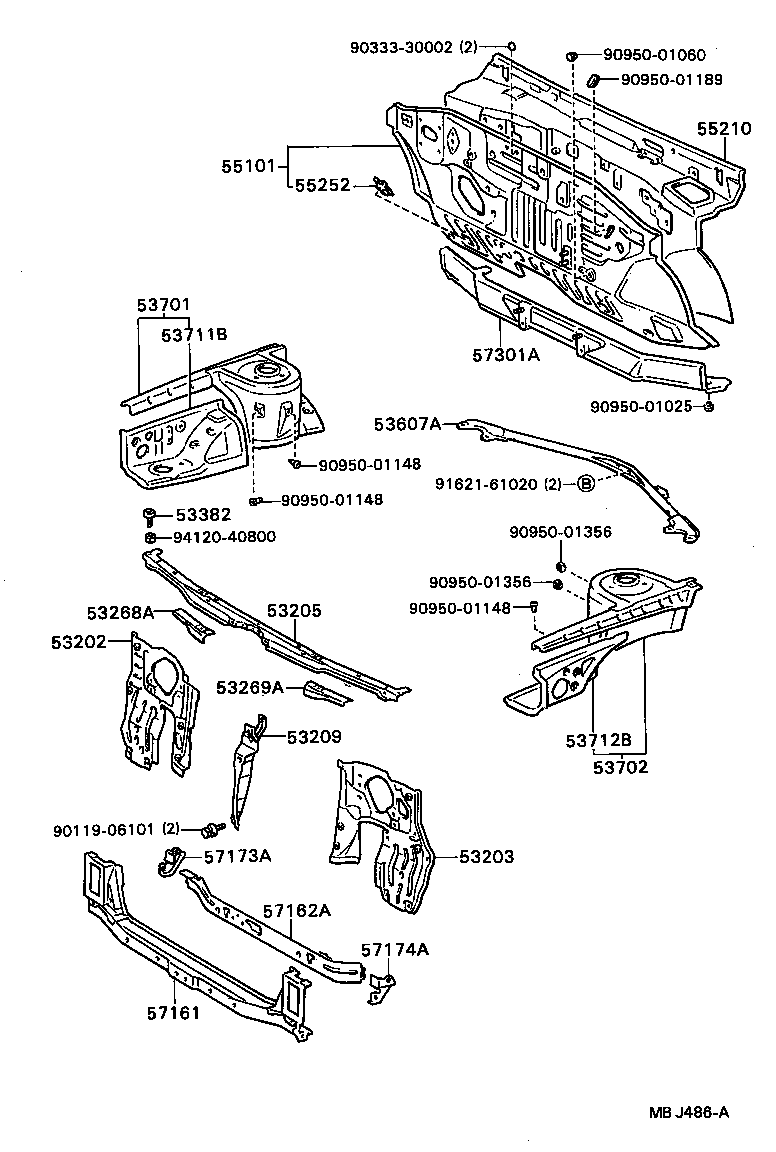

Click highlighted areas on diagram

diagram 53202 53203 53205 53209 53268A 53269A 53382 53607A 53701 53702 53711B 53712B 55101 55210 55252 57161 57162A 57173A 57174A 57301A 9011906101 9033330002 9095001025 9095001060 9095001148 9095001148 9095001148 9095001189 9095001356 9095001356 9162161020 9412040800
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-20160

ST16#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-20180

ST16#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20100

ST16#

 1
53216-20110

ST16#

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53209-20130

ST16#

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-20010

AT150..ATM;CT150,ST150,16#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-20010

AT150,CT150,ST150,16#

 1
53382 - BUMPER, HOOD, FRONT
53382-20011

AT150,CT150,ST150,16#

 2
53382-90A00

AT150,CT150,ST150,16#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20927

ST16#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20937

ST16#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20160

ST16#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20230

ST16#

 1
55101 - PANEL SUB-ASSY, DASH
55101-20731

ST16#..4FC

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20121

AT150,CT150,ST150,16#

 1
55252 - COVER, DASH PANEL HOLE
55129-16010

AT150,CT150,ST150,16#

 1
57161 - CROSSMEMBER, FRONT
57161-20906

ST16#

 1
57162A - MEMBER, FRONT CROSS, REAR
57162-20901

ST16#

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-20010

ST16#

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20010

ST16#

 1
Common parts
90119-06101
90333-30002
90950-01025
90950-01060
90950-01148
90950-01189
90950-01356
91621-61020
94120-40800
