ST160-TEPSE (1985)

Toyota Corona

Production Aug 1985 - Nov 1987
Engine 1SELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST16#

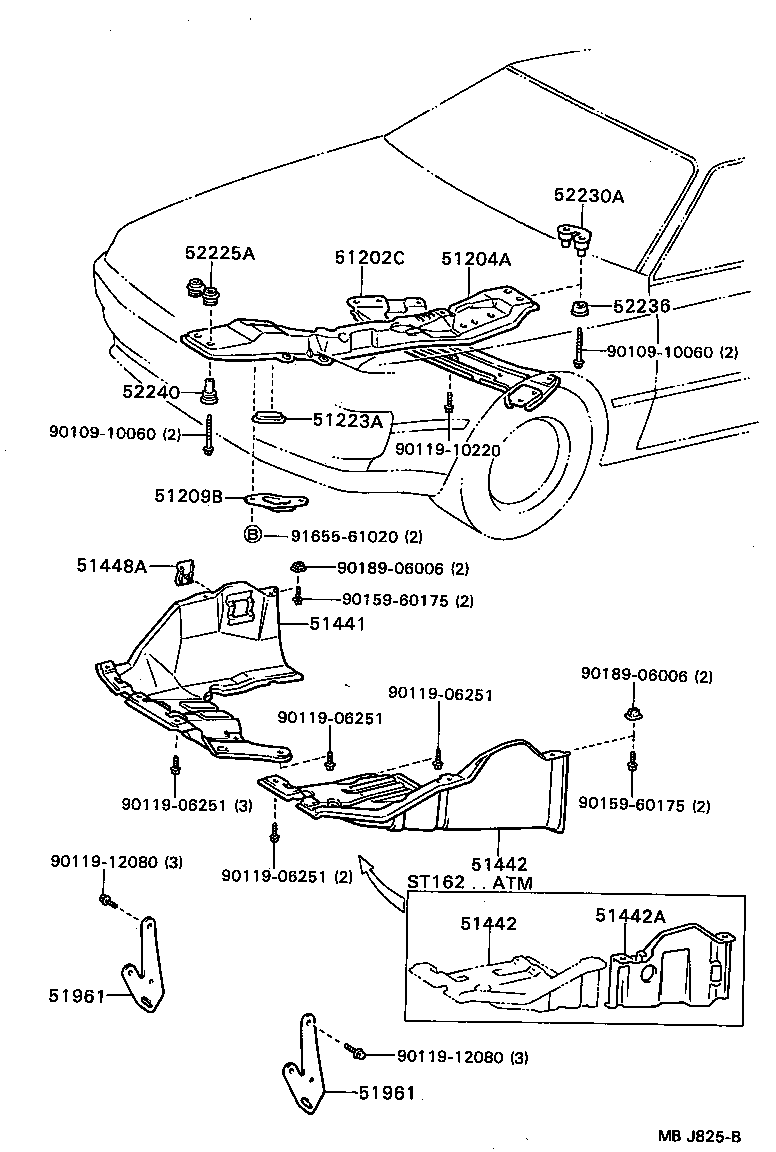

Click highlighted areas on diagram

diagram 51202C 51204A 51209B 51223A 51441 51442 51442 51442A 51448A 51961 51961 52225A 52230A 52236 52240 9010910060 9010910060 9011906251 9011906251 9011906251 9011906251 9011910220 9011912080 9011912080 9015960175 9015960175 9018906006 9018906006 9165561020
Part # Description Qty Price
51202C - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-20010

ST16#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20030

ST16#

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AT150,CT150,ST150,16#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-20120

ST16#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20050

ST160..4FC

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20050

ST160..4FC

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT150,CT150,ST150,16#

 1
51961 - HOOK, NO.1
51963-20070

ST16#

 2
51963-20080

ST16#

RH

 1
51964-20050

ST16#

LH

 1
51961 - HOOK, NO.1
51963-20070

ST16#

 2
51963-20080

ST16#

RH

 1
51964-20050

ST16#

LH

 1
52225A - CUSHION, CENTER MEMBER MOUNTING, FRONT UPPER
52225-20030

AT150,CT150,ST150,16#

 1
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-20030

AT150,CT150,ST150,16#

 1
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-20030

AT150,CT150,ST150,16#

 2
52240 - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER
52240-20030

AT150,CT150,ST150,16#

 2
Common parts
90109-10060
90119-06251
90119-10220
90119-12080
90159-60175
90189-06006
91655-61020
