ST150-TLPNL (1983)
Toyota Corona
Production
Oct 1983
-
Nov 1987
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8301-8508)

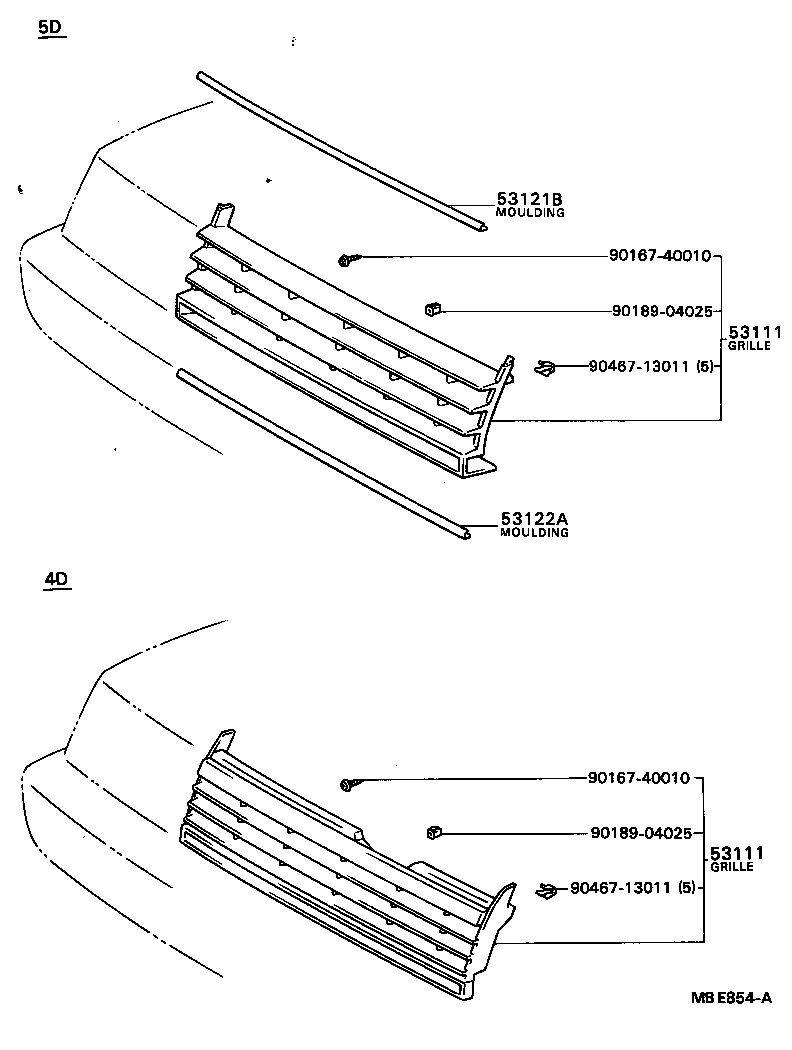

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-29245 |
AT150,ST150..5D |
1 | ||
| 53100-20080 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| 53100-20100 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-29245 |
AT150,ST150..5D |
1 | ||
| 53100-20080 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| 53100-20100 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| 53121B - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-20130 |
AT150,ST150..5D..(EXA,EXS,GX,SX) |
1 | ||
| 53122A - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-20100 |
AT150,ST150..5D..(EXA,EXS,GX,SX) |
1 | ||
| Common parts | ||||
| 90167-40010 | ||||
| 90189-04025 | ||||
| 90467-13011 | ||||
(8508- )

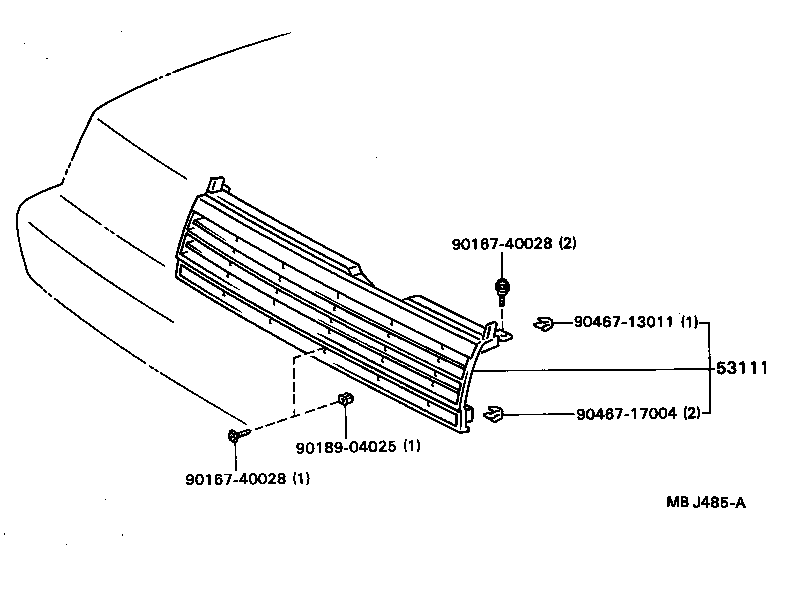

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-29245 |
AT150,ST150..5D |
1 | ||
| 53100-20080 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| 53100-20100 |
AT150,CT150,ST150..DX,GX,STD |
1 | ||
| Common parts | ||||
| 90167-40028 | ||||
| 90189-04025 | ||||
| 90467-13011 | ||||
| 90467-17004 | ||||
