ST150-TLPGE (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

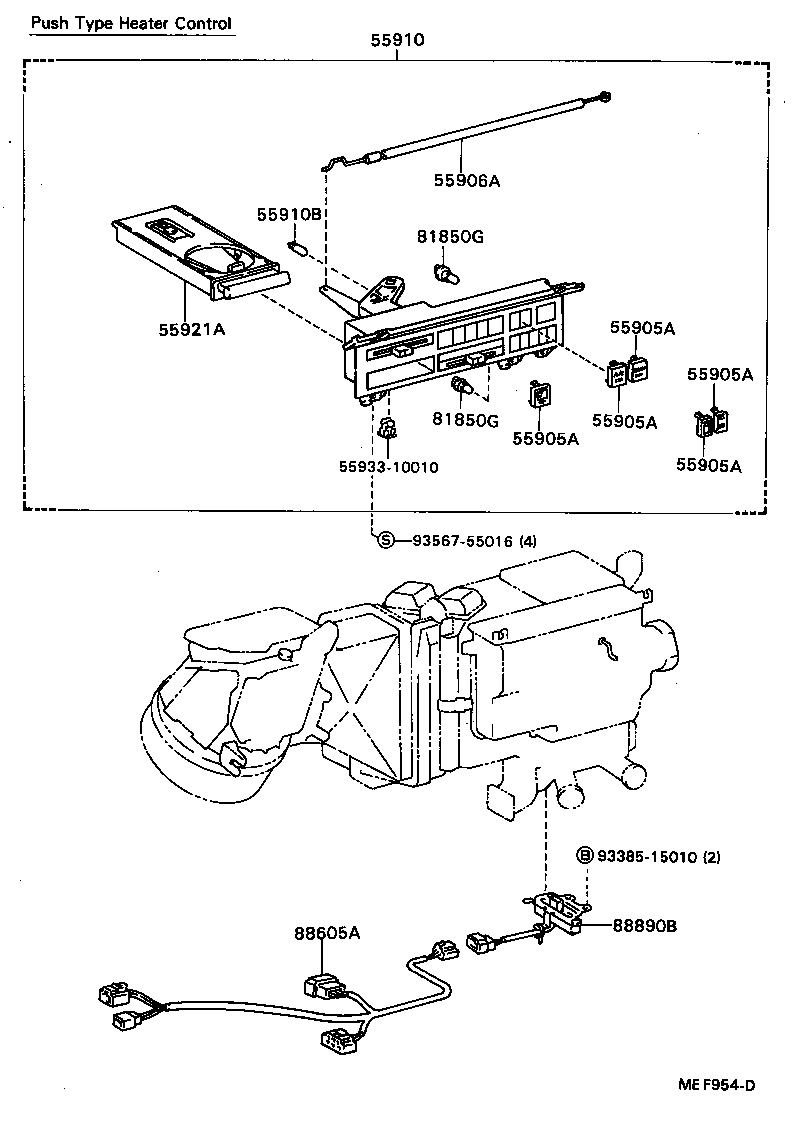

ILLUST NO. 1 OF 3(8508- )EXA,GT

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55905A 55906A 55910 55910B 55921A 5593310010 81850G 81850G 88605A 88890B 9338515010 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12060

AT150,CT150,ST150

 5
55905-20170

ST150,162..EXA,GT

*PHC,MODE-AUTO

 1
55905-20150

ST150,162..EXA,GT

*PHC,A/C

 1
55905-20240

ST150,162..EXA,GT

*PHC,HI

 1
55905-20180

ST150,162..EXA,GT

*PHC,FAN-AUTO

 1
55905-20160

ST150,162..EXA,GT

*PHC,ECON

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT150,CT150,ST150

 5
55905-20170

ST150,162..EXA,GT

*PHC,MODE-AUTO

 1
55905-20150

ST150,162..EXA,GT

*PHC,A/C

 1
55905-20240

ST150,162..EXA,GT

*PHC,HI

 1
55905-20180

ST150,162..EXA,GT

*PHC,FAN-AUTO

 1
55905-20160

ST150,162..EXA,GT

*PHC,ECON

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT150,CT150,ST150

 5
55905-20170

ST150,162..EXA,GT

*PHC,MODE-AUTO

 1
55905-20150

ST150,162..EXA,GT

*PHC,A/C

 1
55905-20240

ST150,162..EXA,GT

*PHC,HI

 1
55905-20180

ST150,162..EXA,GT

*PHC,FAN-AUTO

 1
55905-20160

ST150,162..EXA,GT

*PHC,ECON

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT150,CT150,ST150

 5
55905-20170

ST150,162..EXA,GT

*PHC,MODE-AUTO

 1
55905-20150

ST150,162..EXA,GT

*PHC,A/C

 1
55905-20240

ST150,162..EXA,GT

*PHC,HI

 1
55905-20180

ST150,162..EXA,GT

*PHC,FAN-AUTO

 1
55905-20160

ST150,162..EXA,GT

*PHC,ECON

 1
55905A - KNOB, HEATER CONTROL
55905-12060

AT150,CT150,ST150

 5
55905-20170

ST150,162..EXA,GT

*PHC,MODE-AUTO

 1
55905-20150

ST150,162..EXA,GT

*PHC,A/C

 1
55905-20240

ST150,162..EXA,GT

*PHC,HI

 1
55905-20180

ST150,162..EXA,GT

*PHC,FAN-AUTO

 1
55905-20160

ST150,162..EXA,GT

*PHC,ECON

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20240

ST150,162..EXA,GT

*PHC

 1
55906-20150

AT150,CT150,ST150

MODE

 1
55906-20160

AT150,CT150,ST150

R-L CONTROL

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20290

AT150,CT150,ST150

 1
55900-20280

ST150,162..EXA,GT

W/*PHC

 1
55900-20281

ST150,162..EXA,GT

W/*PHC

 1
55910B - BULB, HEATER CONTROL
90981-11014

AT150,CT150,ST150,16#

 1
55921A - RETAINER, HEATER CONTROL
55921-20080

ST150,162..EXA,GT

 1
81850G - LAMP ASSY, INDICATOR
81850-20170

ST150,162..EXA,GT

BLOWER LAMP

 1
81850-20160

ST150,162..EXA,GT

MODE LAMP

 2
81850G - LAMP ASSY, INDICATOR
81850-20170

ST150,162..EXA,GT

BLOWER LAMP

 1
81850-20160

ST150,162..EXA,GT

MODE LAMP

 2
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-20720

ST150,162..EXA,GT

 1
88890B - SWITCH ASSY, THERMOSTAT
88890-20080

ST150,162..EXA,GT

 1
Common parts
55933-10010
93385-15010
93567-55016
