ST150-TLPEL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )CI

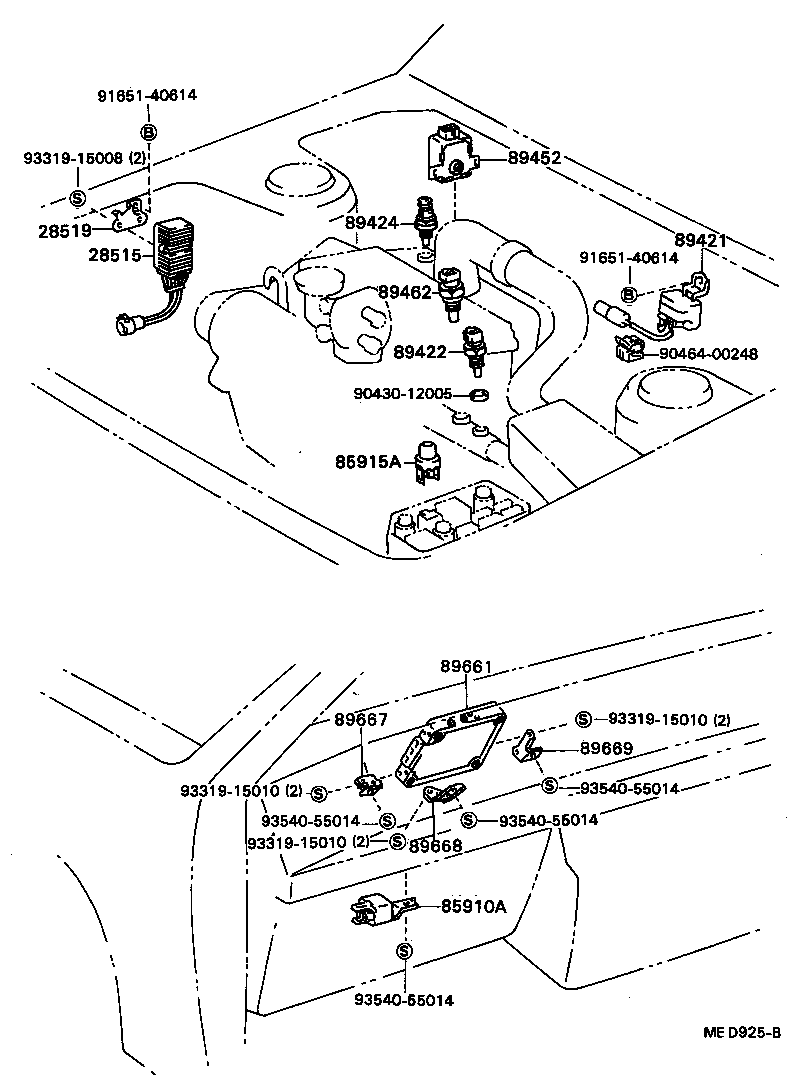

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 89421 89422 89424 89452 89462 89661 89667 89668 89669 9043012005 9046400248 9165140614 9165140614 9331915008 9331915010 9331915010 9331915010 9354055014 9354055014 9354055014 9354055014
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-63010

1SILU..ST150

 1
28515-20020

1SILU..ST150

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-12020

1S#..ST150

 1
28519-20030

1S#..ST150,160

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-20020

ST150,16#

 1
85915A - RELAY, MAIN
90987-02004

ST150,16#

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20060

ST150,160

 1
89421-20020

ST150

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

ST150,16#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

ST150,160

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20030

ST150..CI

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

ST150,16#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-20020

ST150..4FC..CI

 1
89661-20021

ST150..4FC..CI

 1
89661-20230

ST150..4FC..CI

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20010

ST150,16#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20010

ST150,16#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-20010

ST150,16#

 1
Common parts
90430-12005
90464-00248
91651-40614
93319-15008
93319-15010
93540-55014
