ST150-TLPEL (1983)
Toyota Corona

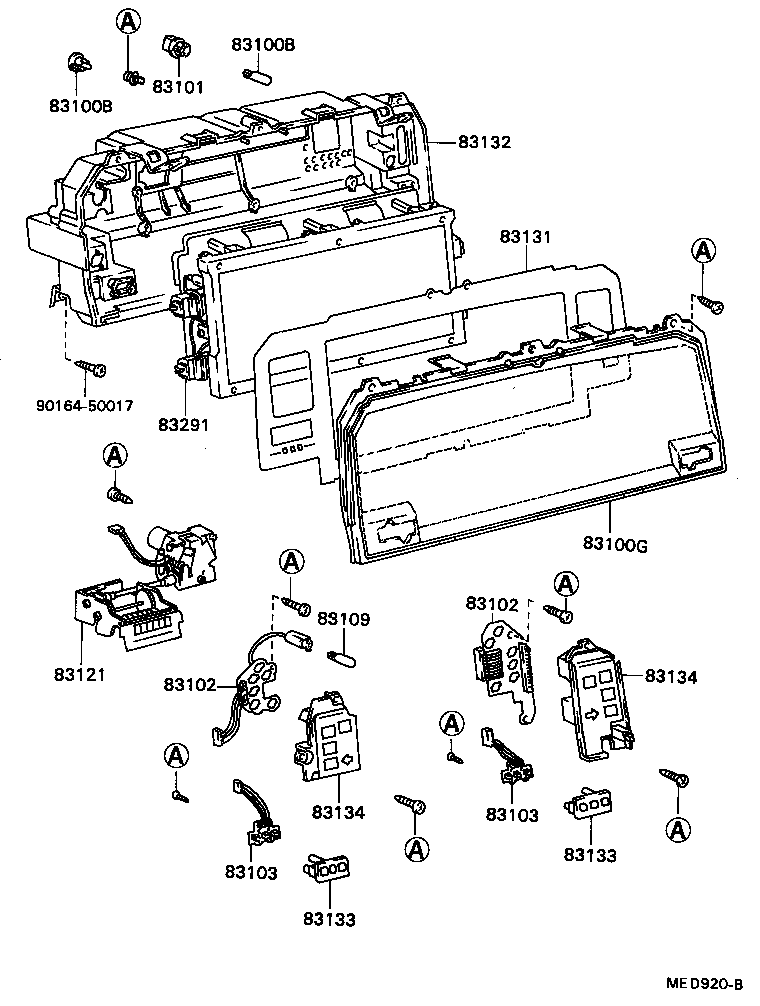

ILLUST NO. 1 OF 3(8301- )EXA,EXS,SX ; (8504-8508)ST150..4D..GX; (8508- )ST16# ; (8512- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST150;AT150,CT150,ST16#..EXS,GT,GX,SXR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
9 | ||
| 99132-12034 |
AT150,CT150,ST150,16# 12V 3.4W,12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST150;AT150,CT150,ST16#..EXS,GT,GX,SXR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
9 | ||
| 99132-12034 |
AT150,CT150,ST150,16# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20220 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83133-20210 |
ST150,16#..EXA,EXS,GT,SXR W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT150,CT150,ST150,16# BULB=12V 3.4W |
13 | ||
| 83101-14040 |
ST150..EXS,GX BULB=12V 1.4W |
9 | ||
| 83101-14030 |
ST150 BULB=12V 3.4W |
13 | ||
| 83101-14040 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR BULB=12V 1.4W |
10 | ||
| 83101-20080 |
ST150,16#..EXA,EXS,GT,SXR BULB=12V 1.4W W/BLUE CAP |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT150,CT150,ST150,16# BULB=12V 3.4W |
13 | ||
| 83101-14040 |
ST150..EXS,GX BULB=12V 1.4W |
9 | ||
| 83101-14030 |
ST150 BULB=12V 3.4W |
13 | ||
| 83101-14040 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR BULB=12V 1.4W |
10 | ||
| 83101-20080 |
ST150,16#..EXA,EXS,GT,SXR BULB=12V 1.4W W/BLUE CAP |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20770 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,LH |
1 | ||
| 83247-20280 |
ST150..EXS |
1 | ||
| 83247-20440 |
ST150..EXA,EXS,SX |
1 | ||
| 83247-20740 |
ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83247-20790 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,RH |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B030 |
AT150,CT150,ST150..EXA,EXS,SX |
1 | ||
| 83110-2B031 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-20020 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B890 |
ST150..EXA,EXS W/*DS |
1 | ||
| 83132-20080 |
ST150..EXS |
1 | ||
| 83132-2B891 |
ST150,16#..EXA,EXS,GT,SXR W/*DS |
1 | ||
| 83132-20240 |
CT150,ST150..EXA,EXS,SX |
1 | ||
| 83132-20460 |
CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20220 |
ST150..EXS |
1 | ||
| 83145-20380 |
ST150..EXA,EXS,SX |
1 | ||
| 83145-20880 |
ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20120 |
ST150..EXS |
1 | ||
| 83242-20160 |
ST150..EXA,EXS,SX |
1 | ||
| 83242-20340 |
ST150,160..EXA,EXS,SX,SXR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20140 |
AT150,CT150,ST150..EXA,EXS,SX |
1 | ||
| 83243-20480 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20100 |
AT150,CT150,ST150..EXA,EXS,SX |
1 | ||
| 83244-20320 |
AT150,ST150,160..EXA,EXS,SX,SXR |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20370 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| Common parts | ||||
| 83165-20080 | ||||
| 83165-20140 | ||||
| 90164-50017 | ||||
| 94115-70300 | ||||
ILLUST NO. 1 OF 3(8310- )EXA,EXS,GT,SXR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST150;AT150,CT150,ST16#..EXS,GT,GX,SXR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
9 | ||
| 99132-12034 |
AT150,CT150,ST150,16# 12V 3.4W,12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ST150;AT150,CT150,ST16#..EXS,GT,GX,SXR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
9 | ||
| 99132-12034 |
AT150,CT150,ST150,16# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20220 |
AT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83133-20210 |
ST150,16#..EXA,EXS,GT,SXR W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
AT150,CT150,ST150,16# BULB=12V 3.4W |
13 | ||
| 83101-14040 |
ST150..EXS,GX BULB=12V 1.4W |
9 | ||
| 83101-14030 |
ST150 BULB=12V 3.4W |
13 | ||
| 83101-14040 |
AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR BULB=12V 1.4W |
10 | ||
| 83101-20080 |
ST150,16#..EXA,EXS,GT,SXR BULB=12V 1.4W W/BLUE CAP |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20770 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,LH |
1 | ||
| 83247-20280 |
ST150..EXS |
1 | ||
| 83247-20440 |
ST150..EXA,EXS,SX |
1 | ||
| 83247-20740 |
ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83247-20790 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,RH |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20770 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,LH |
1 | ||
| 83247-20280 |
ST150..EXS |
1 | ||
| 83247-20440 |
ST150..EXA,EXS,SX |
1 | ||
| 83247-20740 |
ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83247-20790 |
ST150,16#..EXA,EXS,GT,SXR W/*DS,RH |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-20750 |
ST150,16#..EXA,EXS,GT,SXR |
2 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-20750 |
ST150,16#..EXA,EXS,GT,SXR |
2 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-20040 |
ST150..EXA,EXS COUNTER |
1 | ||
| 83109-20030 |
ST150,16#..EXA,EXS,GT,SXR 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,WARNING |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-20210 |
ST150,16#..EXA,EXS,GT,SXR |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-20210 |
ST150,16#..EXA,EXS,GT,SXR |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2B890 |
ST150..EXA,EXS W/*DS |
1 | ||
| 83132-20080 |
ST150..EXS |
1 | ||
| 83132-2B891 |
ST150,16#..EXA,EXS,GT,SXR W/*DS |
1 | ||
| 83132-20240 |
CT150,ST150..EXA,EXS,SX |
1 | ||
| 83132-20460 |
CT150,ST150,16#..EXA,EXS,GT,SX,SXR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20250 |
ST150,16#..EXA,EXS,GT,SXR TRIP |
1 | ||
| 83133-20230 |
ST150,16#..EXA,EXS,GT,SXR CLOCK |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20250 |
ST150,16#..EXA,EXS,GT,SXR TRIP |
1 | ||
| 83133-20230 |
ST150,16#..EXA,EXS,GT,SXR CLOCK |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20230 |
ST150,16#..EXA,EXS,GT,SXR LH |
1 | ||
| 83134-20210 |
ST150,16#..EXA,EXS,GT,SXR RH |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20230 |
ST150,16#..EXA,EXS,GT,SXR LH |
1 | ||
| 83134-20210 |
ST150,16#..EXA,EXS,GT,SXR RH |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-20011 |
ST150..EXA,EXS |
1 | ||
| 83291-20010 |
ST150..EXA,EXS |
1 | ||
| Common parts | ||||
| 90164-50017 | ||||
