ST150-TLPEL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

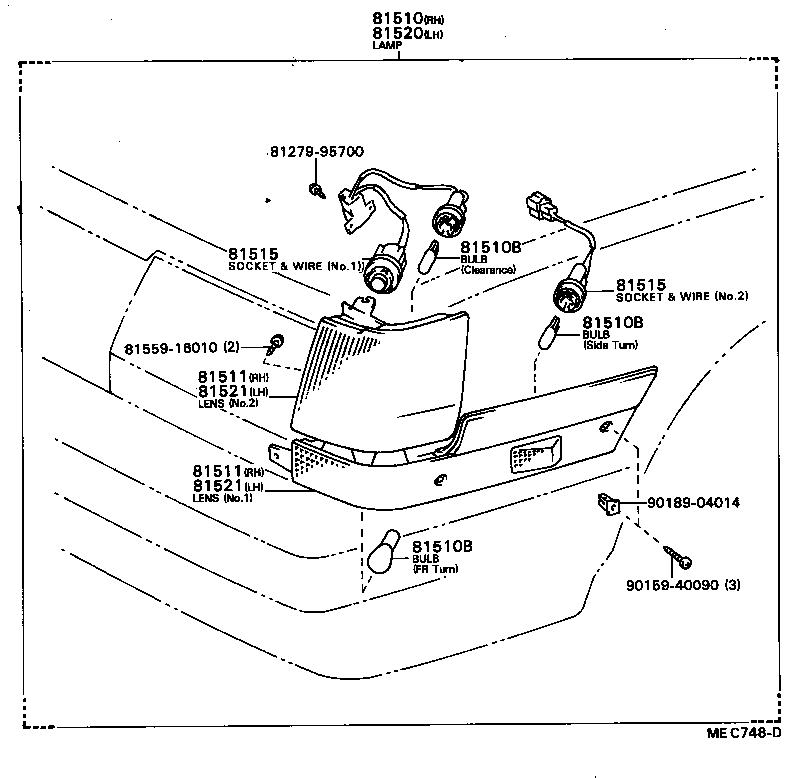

(8301-8508)

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81510B 81511 81511 81515 81515 81520 81521 81521 8155916010 9015940090 9018904014
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29886

AT150..DX,STD;AT150,ST150..5D

 1
81510-20390

AT150,CT150,ST150,16#

 1
81510-29885

ST150

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT150,CT150,ST150,16#

12V 23W,12V 23W

 2
99132-12050

AT150,CT150,ST150

12V 5W,12V 5W

 4
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT150,CT150,ST150,16#

12V 23W,12V 23W

 2
99132-12050

AT150,CT150,ST150

12V 5W,12V 5W

 4
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT150,CT150,ST150,16#

12V 23W,12V 23W

 2
99132-12050

AT150,CT150,ST150

12V 5W,12V 5W

 4
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20390

AT150,CT150,ST150,16#

 1
81511-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81513-20290

AT150,CT150,ST150

NO.2

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20390

AT150,CT150,ST150,16#

 1
81511-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81513-20290

AT150,CT150,ST150

NO.2

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-20390

AT150,CT150,ST150,16#

 2
81516-20290

AT150,CT150,ST150

NO.2

 2
81515-20290

AT150,CT150,ST150

NO.1

 2
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-20390

AT150,CT150,ST150,16#

 2
81516-20290

AT150,CT150,ST150

NO.2

 2
81515-20290

AT150,CT150,ST150

NO.1

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29876

AT150..DX,STD;AT150,ST150..5D

 1
81520-29875

ST150

 1
81520-20390

AT150,CT150,ST150,16#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20390

AT150,CT150,ST150,16#

 1
81521-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81523-20290

AT150,CT150,ST150

NO.2

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20390

AT150,CT150,ST150,16#

 1
81521-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81523-20290

AT150,CT150,ST150

NO.2

 1
Common parts
81279-95700
81559-16010
90159-40090
90189-04014

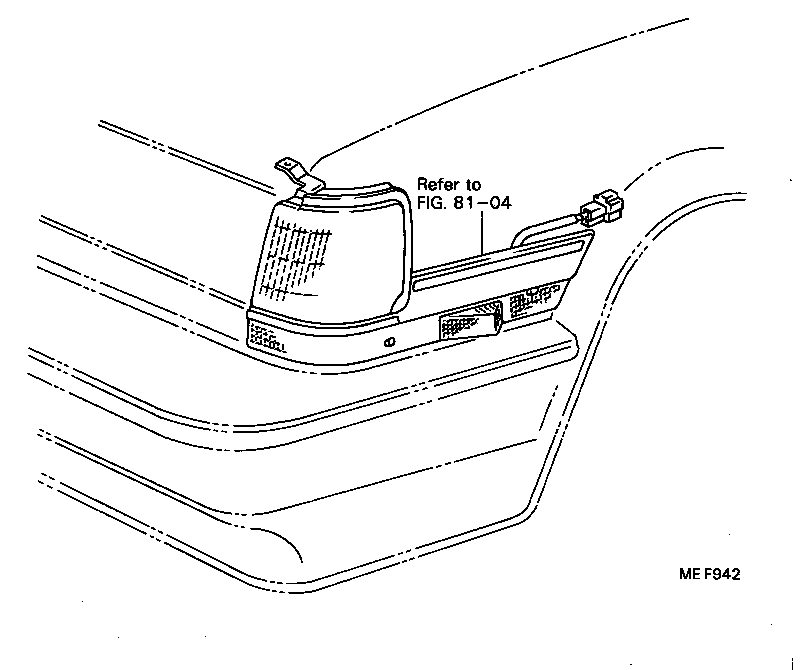

(8508- )

Click highlighted areas on diagram

diagram 8104
Part # Description Qty Price
Linked diagrams
8104

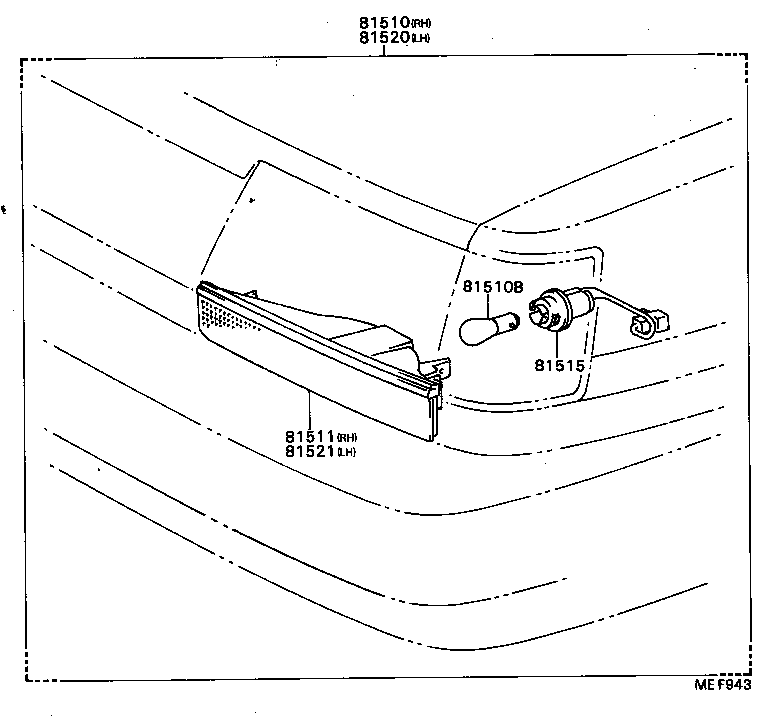

(8508- )

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 81520 81521
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29886

AT150..DX,STD;AT150,ST150..5D

 1
81510-20390

AT150,CT150,ST150,16#

 1
81510-29885

ST150

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AT150,CT150,ST150,16#

12V 23W,12V 23W

 2
99132-12050

AT150,CT150,ST150

12V 5W,12V 5W

 4
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20390

AT150,CT150,ST150,16#

 1
81511-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81513-20290

AT150,CT150,ST150

NO.2

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-20390

AT150,CT150,ST150,16#

 2
81516-20290

AT150,CT150,ST150

NO.2

 2
81515-20290

AT150,CT150,ST150

NO.1

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29876

AT150..DX,STD;AT150,ST150..5D

 1
81520-29875

ST150

 1
81520-20390

AT150,CT150,ST150,16#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20390

AT150,CT150,ST150,16#

 1
81521-20290

AT150..DX,STD;AT150,ST150..5D

NO.1

 1
81523-20290

AT150,CT150,ST150

NO.2

 1
