ST150-TLPEL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

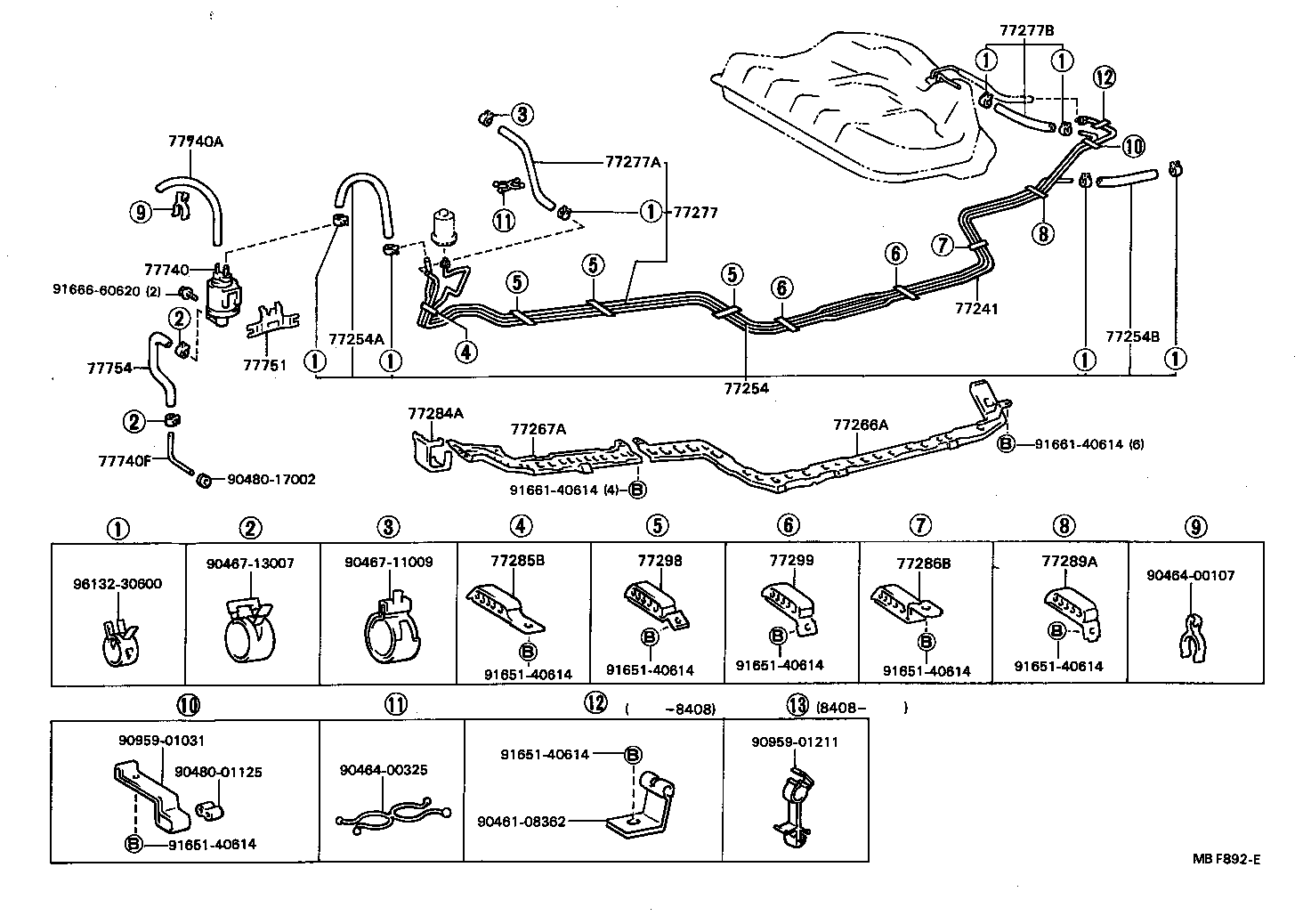

ILLUST NO. 2 OF 2(8310- )ST150

Click highlighted areas on diagram

diagram 77241 77254 77254A 77254B 77266A 77267A 77277 77277A 77277B 77284A 77285B 77286B 77289A 77298 77299 77740 77740A 77740F 77751 77754 9046108362 9046400107 9046400325 9046711009 9046713007 9048001125 9048017002 9095901031 9095901211 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9166140614 9166140614 9166660620 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-20060

ST150

 1
77251-20260

ST150

 1
77251-20262

ST150

 1
77254 - TUBE, FUEL EMISSION, NO.1
77019-20120

AT150,CT150,ST150

 1
77019-20121

AT150,CT150,ST150

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95333-06030

AT150,CT150,ST150

*H,L=220

 1
95332-06030

AT150,CT150,ST150

*H,L=280

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95333-06030

AT150,CT150,ST150

*H,L=260

 1
95332-06030

AT150,CT150,ST150

*H,L=260

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-20050

AT150,CT150,ST150

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-20010

AT150,CT150,ST150,16#

 1
77277 - TUBE, FUEL RETURN, NO.1
77207-20020

ST150

 1
77207-20050

ST150

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-04060

ST150

*H,L=550

 1
90447-12018

ST150,16#

 1
90447-12085

ST150,16#

長さ=320

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04030

ST150

*H,L=220

 1
77049-20010

ST150

L=200

 1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-20030

AT150,CT150,ST150

 1
77284-20031

AT150,CT150,ST150,16#

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-20020

ST150

 1
77285-20040

CT150,ST150

 1
77285-20041

CT150,ST150,16#

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-32010

ST150

 1
77286-32020

CT150,ST150

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-32020

CT150,ST150

 1
77289-32010

ST150

 1
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-20010

CT150,ST150,16#

 3
77285-20030

ST150

 3
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-20010

CT150,ST150,16#

 2
77286-20020

ST150

 2
77740 - CANISTER ASSY, CHARCOAL
77704-60050

ST150,16#

 1
77704-20230

ST150,16#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

ST150..CI

*H,L=390,ﾏｰｸ=#*

 1
95411-19960

ST150

*H,L=330,ﾏｰｸ=#*

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-20030

AT150,ST150

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-32010

AT150,ST150

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12020

AT150,ST150,16#

 1
Common parts
90461-08362
90464-00107
90464-00325
90467-11009
90467-13007
90480-01125
90480-17002
90959-01031
90959-01211
91651-40614
91661-40614
91666-60620
96132-30600
