ST150-TLPEL (1983)

Toyota Corona

Production Oct 1983 - Nov 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8301-8508)

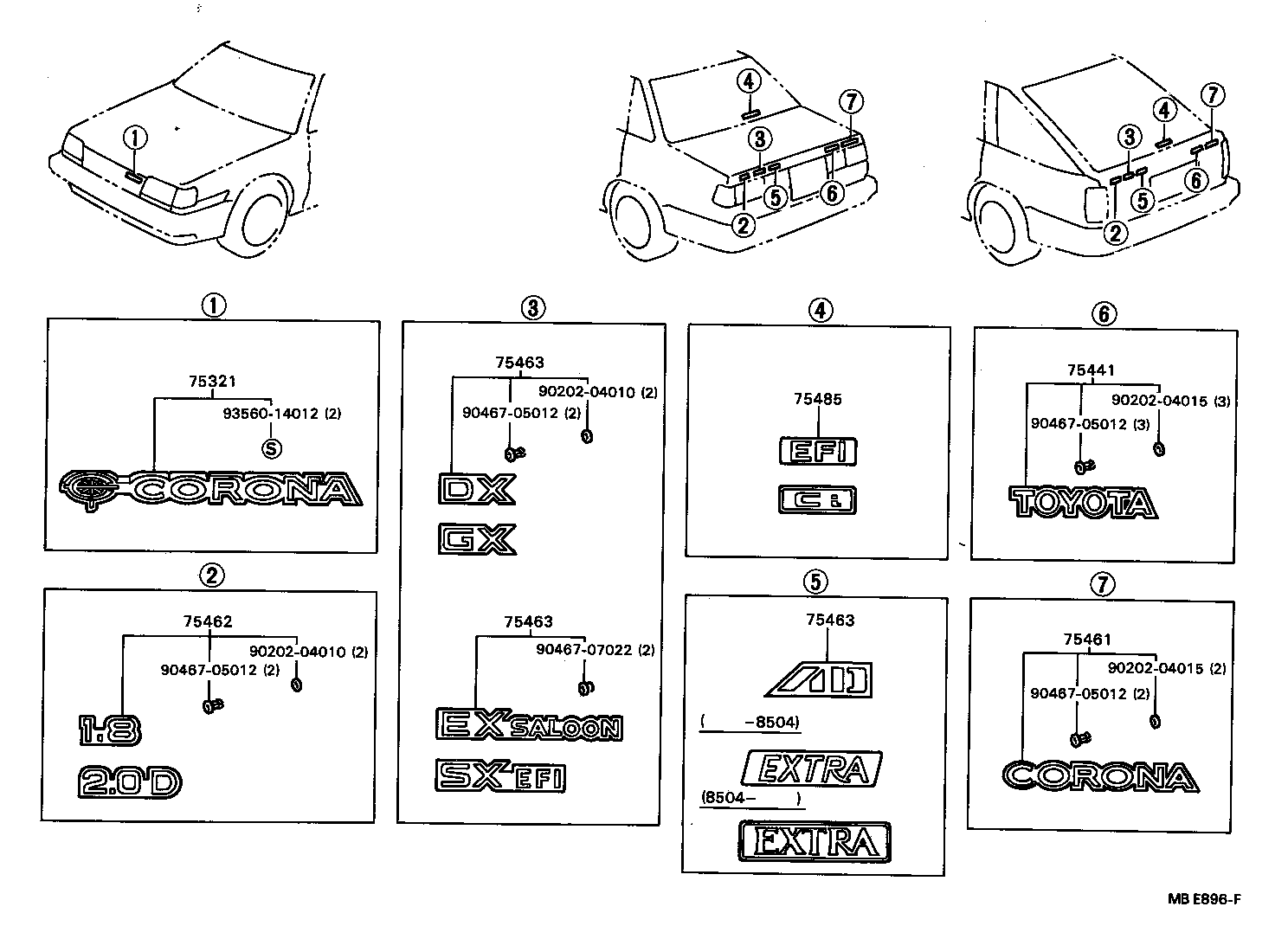

Click highlighted areas on diagram

diagram 75321 75441 75461 75462 75463 75463 75463 75485 9020204010 9020204010 9020204015 9020204015 9046705012 9046705012 9046705012 9046705012 9046707022 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-29815

AT150,ST150..5D

CORONA

 1
75321-20440

AT150,CT150,ST150,16#

CORONA

 1
75441 - PLATE, REAR NAME, NO.1
75441-20190

AT150,CT150,ST150,16#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75445-20030

AT150,CT150,ST150,16#

CORONA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75443-20120

ST150,160

1.8

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75485 - PLATE, BACK WINDOW NAME
75485-20040

ST150..CI

CI,CI

 1
Common parts
90202-04010
90202-04015
90467-05012
90467-07022
93560-14012

(8508- )

Click highlighted areas on diagram

diagram 75311 75319 75321 75364 75441 75461 75462 75463 75463 75463 75463 75485 9020204010 9020204010 9020204015 9020204015 9020204015 9020205009 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9356014012 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-29815

AT150,ST150..5D

CORONA

 1
75321-20440

AT150,CT150,ST150,16#

CORONA

 1
75441 - PLATE, REAR NAME, NO.1
75441-20190

AT150,CT150,ST150,16#

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75445-20030

AT150,CT150,ST150,16#

CORONA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75443-20120

ST150,160

1.8

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-20120

AT150,CT150,ST150..EXA,EXS

EX-SALOON

 1
75485 - PLATE, BACK WINDOW NAME
75485-20040

ST150..CI

CI,CI

 1
Common parts
90202-04010
90202-04015
90202-05009
90467-05012
90467-07022
93560-14012
